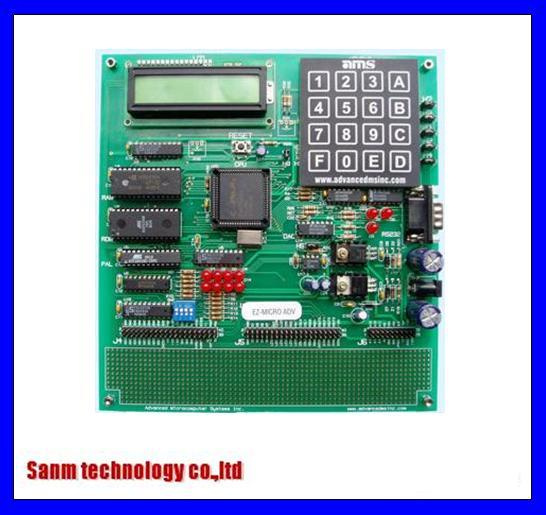

Telecommunication PCB Assembly (PCBA-305)
1)layer: 1-28
2)Board finished thickness: 0.21mm-7.0mm
3)Material: FR-4, CEM-1, CEM-3, high TG, FR-4 halogen Free, Rogers
4)Max finished board size23X25(580mmX990mm)
5)Min drilled hole size: 2mil(0.05mm)
6)Min Line spacing: 2 mil (0.05mm)
7)Surface finish/treatment: HASL/HASL. Lead free, chemical tin, chemical gold, immersion gold/silver, OSP, Gold plating
8)Copper thickness: 0.5-7.0 oz
9)Solder mask color: Green/yellow /black/white/red/blue
10)Copper thickness in hole: >25.0μ M(>1mil)
11)inner packing: Vacuum packing/plastic bag
Outer packing: Standard carton packing
12)shape tolerance: ± 0.13
Hole tolerance: PTH ± 0.076 NPTH: ± 0.05
13)Certificate: UL TS16949 RoHS
14)Special requirements: Buried and blind vias+controlled impedance+BGA
15)Profiling: Punching, Routing, V-CUT, Beveling
Provide OEM service to all sorts of printed circuit board assembly as well as electronic encased products.
Founded in 2006, Sanm Technology is a newly established high-tech company. We are one of the leading providers of innovative products for EMS, including PCB, PCBA, imaging products. Our other products include camera modules, membrane switches/panels and enclosures, all of which have large global market shares.
Our primary objective for all our product lines is to be number one in South China and within the top three in the global market. Since then, our distinguished reputation has its beginning in the PCBA industry, where we have ranked number one for the past years. Today, we employ over 200 staff and we have two domestic OEM factories, with global headquarters located in Shenzhen.
We are a fully electronic contract manufacturer which delivers complete turn-key services including BOM, material procurement, quality assurance, assembly and logistics services. We are sure that we can provide you complete product support to make your outsourcing projects successful. Our capabilities and services include but are not limited to material sourcing services, sample and prototype building, PCB assembly and box building.
We are dedicated to offering superior-quality products at competitive prices. Send us an inquiry today.
