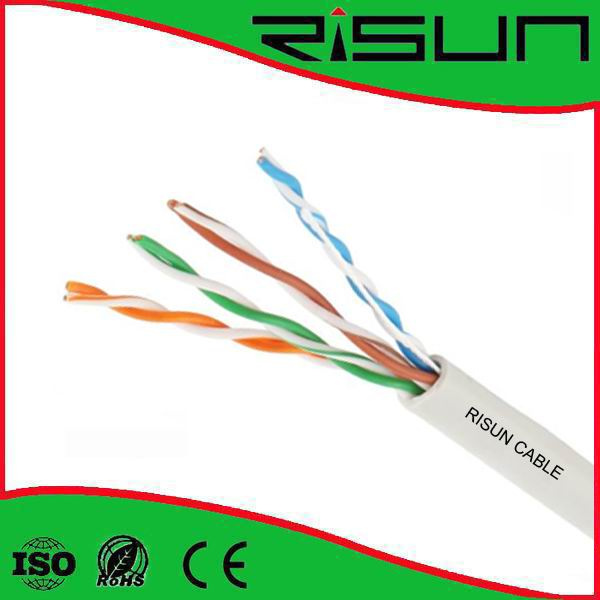

Risun Cable is specialized in producing UTP Cat5e,UTP Cat6, FTP Cat5e, FTP Cat6, Telephone Cable, Alarm Cable and Coaxial Cables.
1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are RISUN or OEM;
3. Payment: We accept T/T and L/C;
4. Packing:
1) Packing Lengths: 305m/roll, or other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull box
4) Other packing available according to client's request.
5. Any question, Please contact us in first time. We'll reply as soon as possible.
Construction |
| Conductor | 24AWG(Solid or Strand) CU/CCA |
| Insulation | HDPE 0.90± 0.06mm |
| Cores/Pairs | 8/4 |
| Sheath | 5.0+/-0.3mm PVC (FR,RoHS,UV)/ LSZH/ PE |
| Mechanical Properties |
| Elongation | Min. 300% |
| Temperature Range | -20 up to +75° C |
| Tensile strength | Min. 1.68Kg/mm2 |
| Electrical Properties (at 20°C) |
| Conductor Resistance | Max. 9.38 ohm/100m |
| Resistance Unbalance | Max. 2% |
| Insulation Resistance | 150 ohm/KM |
| Mutual Capacitance | Max. 5600pF/100m |
| Cpacitance Unbalance | Max. 330pF/100m |
| Impendance | 100+/-15 ohm |
| Spark Test | 2000V |
| Velocity Propagation | 67% |
| Attenuation | RL | Next | PS Next |
| (MHz) | (db/100m) | (db) | (db) | (db/100m) |
| 1MHz | 2.0 | 20 | 65.3 | 63.5 |
| 4MHz | 4.1 | 23 | 56.3 | 54.2 |
| 8MHz | 5.8 | 24.5 | 52.4 | 50.5 |
| 10MHz | 6.6 | 25 | 51.3 | 49.2 |
| 16MHz | 8.2 | 25 | 49.3 | 47.4 |
| 20MHz | 9.3 | 25 | 48.8 | 46.9 |
| 25MHz | 10.4 | 24 | 45.3 | 43.4 |
| 31.25MHz | 11.7 | 23 | 43.0 | 41.8 |
| 62.5MHz | 17.0 | 21 | 39.2 | 37.2 |
| 100MHz | 22.0 | 20 | 36.3 | 34.4 |
| 155MHz | 28.1 | 19 | 35.5 | 33.6 |
| 200MHz | 32.4 | 19 | 31.8 | 29.9 |
| 240MHz | 36.0 | 18 | 30.6 | 28.7 |
| 300MHz | 41.0 | 18 | 29.2 | 27 |
| 350MHz | 44.9 | 17 | 28.0 | 25.6 |
