Product Specifications
| Prod Model: |
X64 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Knee-and-Column Milling Machine |
| Structure: |
Bed type |
| Automatic Grade: |
Manual |
| Precision: |
Precision |
| Controlling Mode: |
Artificial |
| Object: |
Hardware |
Product Description
APPLICATION:

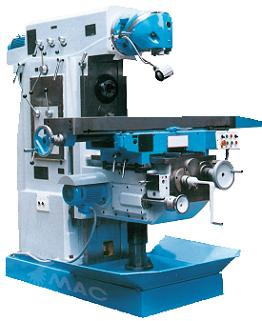

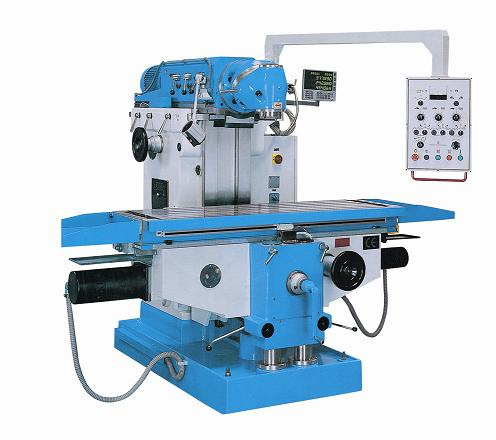

Universal Swivel Head Milling Machine is a new product that is derived from X6132A Horizontal Universal Milling Machine with horizontal spindle and universal milling head, this machine belongs to horizontal universal compound milling machine. The machine can process horizontal and universal milling during once clamping and features high rigidity, compact structure, large parameter, high efficiency and easy operation. Antifriction measure is used in all sets of guideway and leadscrew. The universal milling head can mill at any angle in front half-sphere. The machine is suitable to plane, groove, drill and bore various workpiece of steel, cast iron and non-ferrous metal and is widely used in all machinery and mould industries.
| Name | Unit | X6432A | X6436A | X6440A |
|
|
|
|
| X6432A/1 | X6436A/1 | X6440A/1 |
| Working table (W x L) | mm | 320 x 1400 | 360 x 1400 | 400 x 1400 |
| 320 x 1600 | 360 x 1600 | 400 x 1600 |
| T-slot | Number |
| 3 |
| Width | mm | 18 |
| Distance | mm | 80 |
| Travel of table | Longtudinal (manual/power) | mm | 900 |
| 1100 |
|
|
|
| Cross (manual/power) | mm | 335 |
| Vertical (manual/power) | mm | 475/455 |
| Horizontal spindle taper |
| ISO50 |
| Universal spindle taper |
| ISO50 |
| Swivel angle |
| 3600 |
| Spindle speeds | Horizontal spindle | r/min | 30-1525 (18 stage) |
| Spindle of universal milling head | r/min | 40-1800 (18 stage) |
| Distance between vertical guideway surface and table center | mm | 220-555 |
| Distance between horizontal spindle line and table surface | mm | 0-475 |
| Adjustable distance between spindle of universal milling head and vertical guideway | mm | 210-685 |
| Feed range of table | Longitudinal | mm/min | 22-1028 |
| Cross | mm/min | 22-1028 |
| Vertical | mm/min | 9-400 |
| Rapid feeds of table | Longitudinal | mm/min | 2350 |
| Cross | mm/min | 2350 |
| Vertical | mm/min | 915 |
| Max. swivel angle of table |
| +450 |
| Main motor power | kw | 7.5 |
| Main motor power of ram | Nm | 4 |
| Torque of feed motor | KN | 1.5 |
| Max. bearing weight of table | kg | 400 |
| Net weight | kg | 3500 |
| Overall dimension (L x W x H) | cm | 236 x 195 x 210 |
