Product Specifications
Prod Model: |
ft-1000 ft-1270 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Stainless Steel: |
1.38m |
Type: |
Ventilation Fan |
Power Supply: |
Electric |
Remote Control: |
Without Remote Control |
Timer: |
Without Timer |
Certification: |
CCC |
Speed: |
3 Speed |
Power: |
>300W |
Material: |
Stainless Steel |
Installation: |
Wall Mounted |

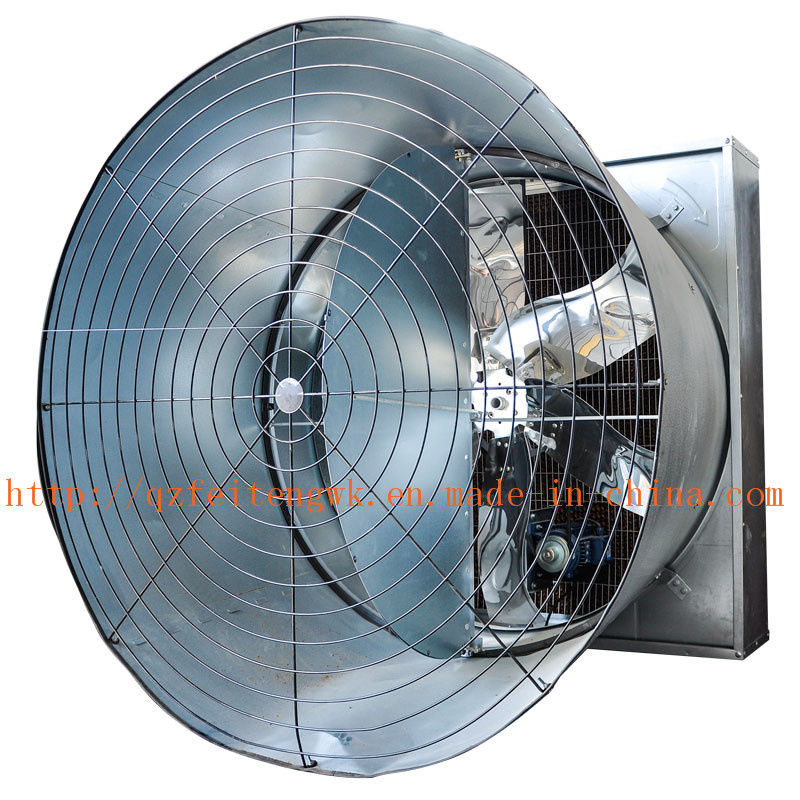

Product Description
Technical parameters: |
Model specification | Blade/m | Frequency/HZ | Motor Speed (r/min) | Air flow(m³/h) | Import power/w | Noise (db) | Rated Voltage/v | Size (mm) | QZ-1380 | 1270(50in) | 50/60 | ≥1400/1700 | 51000 | 1100 | ≤64 | 380 | 1380x1380x1380 |
|
1. Reasonable cone designing, low noise, big air flow,strong ventilation, low operating cost;
2. Imported bearing, high-strength, low noise, durable;
3. Using air downstream principle, pvc shutter or aluminum shutter, antioxidant, light weight, no distortion, open and close sweetly, prevent backflow of air;
4. High-strength more high-gluten strength aluminum-magnesium alloy wheel, light weight, high strength, toughness good;
5. 6 pcs stainless steel blades, no distortion, no breaking, aesthetic durability;
6. There are two types of fan house, slant wall type, upright wall type, could satisfy varieties need
of different customers;
7. The high efficient and energy-saving motor passed the national CCC certification. Also
protection class:IP55, insulation class: F grade.
