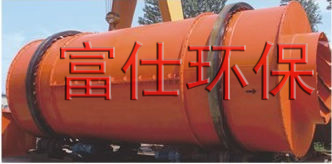

The three cylinder drying machine is the introduction of today's advanced technology from Germany, consisting of three concentric cylinders with different diameters according to certain mathematical relations and structural forms, mutually block is formed by the combination of. According to the principle of heat, throwing plate and guide plate cylinder is provided with different angles and spacing, the structure can ensure that the materials to be dried under the action of gravity along the direction of screwing, keep enough residence time and sufficient dispersion in the cylinder, so the materials in the cylinder and combustion chamber hot gas stream from the full the heat exchange section, eliminates the conventional drying equipment often appear in wind tunnel and defects caused by heat exchange area is small, the unit volumetric evaporation intensity is low. The special three cylinder structure, the inner cylinder and cylinder is surrounded by the outer cylinder to form a self insulation system, internal surface of a cylinder body, in the distribution of heat involved in the outer cylinder of the material in the heat exchange, and the outer barrel and is at the low temperature end of the heat flow, so the heat dissipation area and cylinder the heat loss was significantly lower. Energy saving type three cylinder drying can fully utilize the residual heat, reduce heat loss, increase the heat exchange area, the unit volume of the evaporation intensity of drying machine is greatly improved, thus effectively improving the heat energy utilization rate, reducing energy consumption, so that the thermal efficiency of three cylinder drying machine can be greatly improved. Due to the special structure of the three cylinder drying machine, the length of the tube body is a single cylinder drying machine 1/3, base area is better than that of single cylinder drying machine saves about 65%, infrastructure investment is reduced accordingly. The drying machine adopts the friction transmission of tyre and support rollers, low drive power, reduces the equipment operation noise. Sealing system uses micro contact technology, with better sealing effect, reducing the dust pollution. The three cylinder drying machine for coal, oil, gas and other fuels, and can dry bulk, granular, powdery and other materials, in line with the state to create environment-friendly, resource-saving society policy, environmental protection and energy saving type product to replace traditional drying equipment.,Use:
Used for drying slag, sand, coal, fly ash, iron, ore, quartz sand and other materials.
,Characteristic:
1,The technique content is high, the cylinder body self thermal insulation, thermal efficiency as high as 80% (single cylinder dryer thermal efficiency is only 35%), than the single cylinder drying section coal 68%, yield increased by 100%.
2,60% shorter than the single cylinder drying machine length, facilitates the process layout. To reduce the plant building area, save the project investment of about 40%. Covers an area of about 20m2.
3,Using heat-resistant wear-resistant alloy steel, 4 times faster than ordinary steel plate wear. Long service life, convenient maintenance.
4,The thermal efficiency is high, the outer barrel temperature lower than 60 ºC (single cylinder dryer outer barrel temperature up to 150 ºC), low outlet temperature, discharge temperature lower than 60 ºC.
5,The outlet temperature is low, in favor of dust removal equipment used for a long time, can be matched with the air box pulse bag type dust collector.
6,Construction investment is reduced by about 50%, the power consumption was reduced by 60%.
7,No size gear rotation, using the wheel rotation.
8,Hot blast stove capable of supporting the boiling furnace, pulverized coal injection, hand fired furnace, the furnace is also used in the fuel, gas stove, can bake below 20 mm block material, granular, powdery materials.
9,Output table:5-10 10-15 15-20 20-25 25-30 30-40 40-50 50-60 60-70 70-80T
Pulverized coal drying machine to install the correct:
1,Drying machine based marking: The first installation of the central targets, benchmarks, as equipment installation and maintenance is the basis for future. To determine the center of the two ends of the benchmark, draw the basic vertical center line. The archives center point after the adjustment, must be in a longitudinal center line, horizontal center line must be perpendicular to the longitudinal center line, vertical distance between the horizontal center line must and measured each gear center distance is consistent, dryer roller diagonal error less than 3mm.
2,The dryer set plate: If necessary, need to set the base plate drying machine to adjust the level of the base elevation, plate should be orderly stacked contact intact, when the adjustment can not completely coincide, the contact area should be greater than 80%. The following plate and foundation should have enough contact to the base contact accuracy, dense, smooth placement, there shall be no empty corner sloshing phenomenon.
