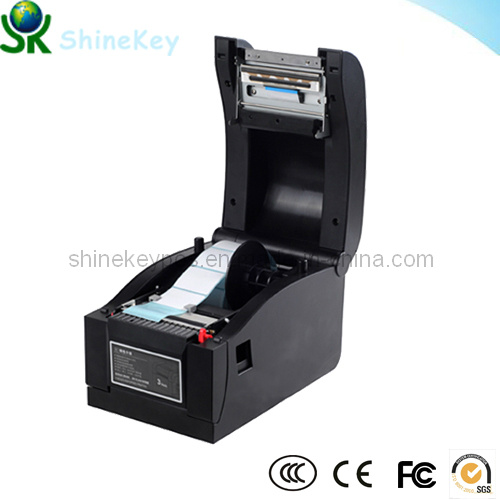

Low cost & interfaces full option thermal Barcode printers
350B is a new barcode lable printer, up to 127mm/s, support QR code and 1D, self-adhensive label or roll paper printing, and location can be corrected automatically.
Lable strip mode
350B with lables strip mode can be peeled off.
High quality, high efficiency
350B is desktop barcode lable printer, Max speed is 127mm/s, min is 50.8mm/s, speed optional and various environment printing. Also guarantee images by high speed printing.
Easy operation
350B is compatible with various barcode software, lables, marks and images printing, PDF 417, OR CODE, DATMARTIX 2D Download, Korean, Simplified/traditional Chinese, Japanese etc multi languages support, PCX, BMP Images files can be load to FLASH.
Excellent firmaware
350B is RS232+LAN+USB barcode printer, outstanding appearancea,
Innovative cover and humanlized hidden ports design, besides, imported
Printer mechanism to longer lifetime.
Feature:
1. Printing speed: Min 50.8mm/s, Max 127mm/s
2. Printing paper width: Min 16mm, Max 82mm
3. Thermal sensitive resistance, photoelectric sensor
4. Support Serial+USB+LAN interface
5. Lables peel off, tear off automatically
6. Fonts can be enlarged 1-10 times, and rotate printing (0° , 90° , 180° , 270° , 360° )
7. Memory: DRAM: 1024KB
8. NV FLASH: 1024KB
9. Support PDF417, OR code, DAMATRIX 2D Printing
10. Embeded with internet default IP
11.100MB Ethernet interface connection, data transfer efficiency
|
Technical parameters |
|
Model |
SK-350B |
|
Printing method |
Direct thermal |
|
Resolution |
203DPI |
|
Paper width |
16-82mm |
|
Printing speed |
Max:127mm/s,Min:101mm/s |
|
Reservoir |
DRAM: 2M FLASH: 2M |
|
Test printer head temperature |
Touch the switch slightly |
|
Explore paper |
photosensor |
|
Interface |
Serial, USB,Ethernet,Serial+Ethernet+USB |
|
Barcode character |
CODE128,EAN128,ITF,CODE39,CODE93,EAN13,EAN13+2,EAN13+5,EAN8,EAN8+2,EAN8+5,CODABAR,POSTNET,UPC-A,UPCA+2,UPCA+5,
UPC-E,UPCE+2,UPC-E+5,CPOST,MSI,MSIC,
PLESSEY,ITF14,EAN14 |
|
barcode setting |
single character:FONT 0 to FONT 8 |
|
Extension and rotation character |
the character can be extended 1-10 double in crossing and portrait, printing rotation(0°,90°,270°, 360°) |
|
Graph |
image file as PCX and BMP can be downloaded to FLASH and DRAM |
|
print paper |
thermal paper and selfadensive paper |
|
External roll diameter |
Max:100mm |
|
Inner roll diameter |
Min:25mm |
|
cutter type |
tear off and peel off |
|
power supply input |
DC24V/2.5A |
|
weight |
1.44kg |
|
dimension |
220(D) x 148(W) x 150(H)mm |
|
Working environment |
temperature (0~45°c) humidity(10~80%) |
|
Storage environment |
temperature (-10~60°c) humidity(10~90%) |
