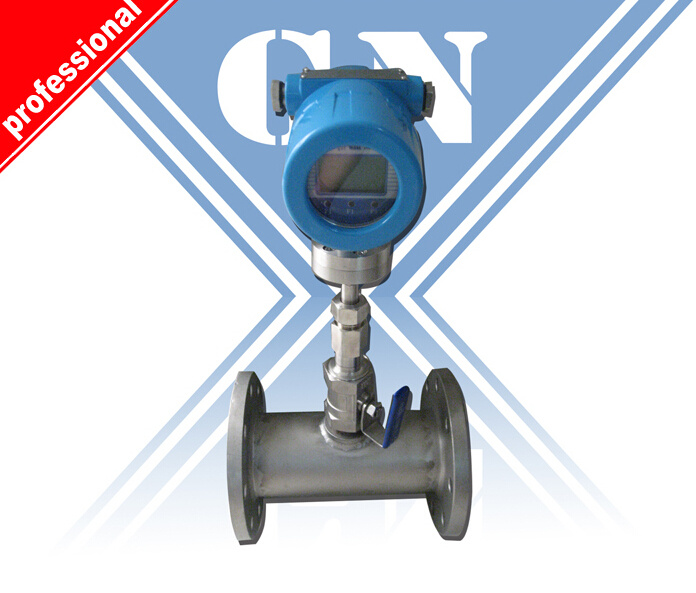

Thermal Gas Flow Meter (CX-TMFM)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
Prod Model: |
CX-TMFM |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max Temp: |
350c |
Max Size: |
4000mm |
Output And Communitaion: |
Pulse,4-20mA,RS485,RS232 |
Certificate: |
ISO,CE,SGS |
Pressure: |
4.0MPa |
Measuring Media: |
Gas |
Accuracy: |
?à0.6-1% |
Main Application: |
Various Gas |
Type: |
Thermal Mass Flow Meter |
Size: |
|
Sensor: |
Flange,Thread,Insertion |
Product Description
Thermal Mass Flow Meter
Main features
1.It can conveniently and accurately measure gas-flow rate without temperature and pressure compensation, from which users can get gas mass flow or standard volume flow.
2.Large ratio of measuring range. It can measure gas with velocity of flow from 100Nm/s to 0.5Nm/s, and be used in gas leak hunting.
3.Good anti-seismic performance and long useful life. The converter doesn't contain movable part and pressure sense part, so that the measuring accuracy will not be influenced by shaking.
4.Easy installation and maintenance. If possible, on line installations and maintenance are allowed. (See Safety Notice)
5.Digital design. The meter utilizes digital circuit measurement to assure accurate result and convenient maintenance.
6.Factory automation and integration can be achieved by using RS-485 or HART communication.
Main parametersMeasuring medium | All kinds of gases (excluding acetylene) |
Range of caliber | DN10~4000mm | DN25~2000mm |
Converter material | Stainless steel | Stainless steel, carbon steel |
Working pressure | Medium pressure<=2.5 Mpa | Medium pressure<=4.0 Mpa |
Range of velocity of flow | 0.5~100Nm/s |
Order of accuracy | ±1% |
Working temperature | Sensor: ambient temperature-10~+200C high temperature modification-10~+350C Converter: -10~+45C |
Power supply source | All-in-one machine(DC24V or AC220V<=18W) Spilt type converter (AC220V<=19W) |
Response speed | 1S |
Output signal | 4~20mA(photoelectric isolation with top load of 500Ω) RS-485(photoelectric isolation), HART protocal |
Pipeline material | carbon steel, stainless steel, plastics,etc. |
Display | All-in-one type: four lines with LCD |
Contents of display | Gas mass flow, standard condition volume flow, accumulated flow, standard time, accumulated running time, temperature of media, standard flow rate etc. |
Protection | IP67 |

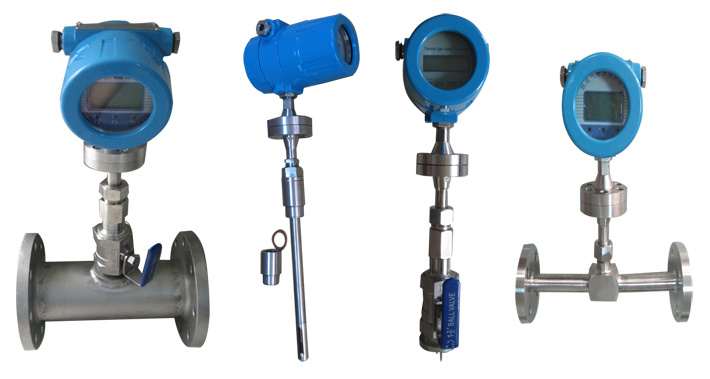

Series of products

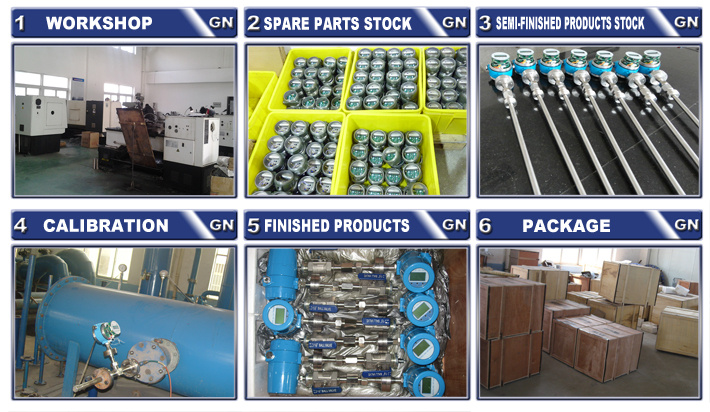

Production line
Certification
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
