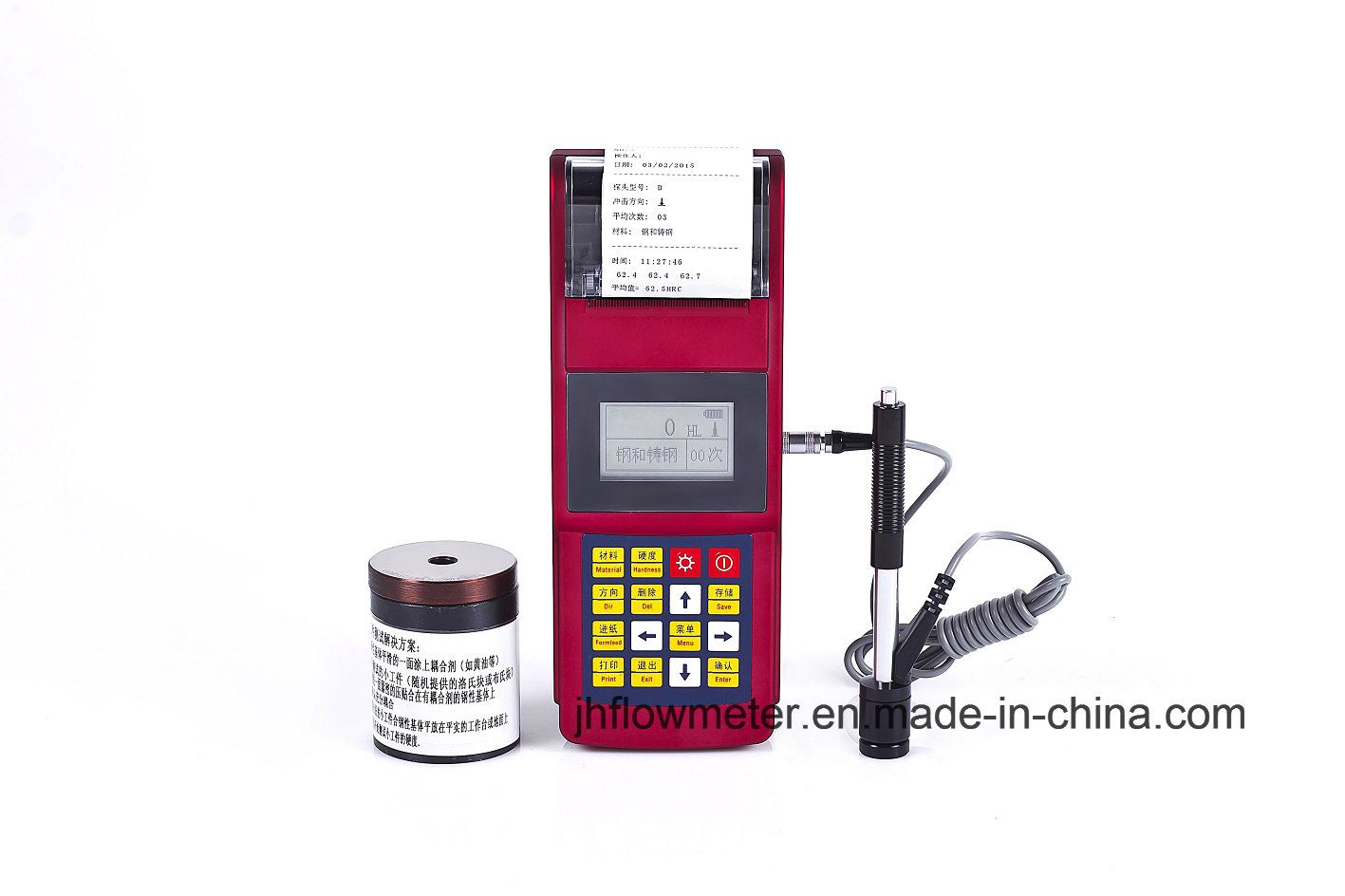

Hardness Tester
Functions & Features:
On the basis of Leeb hardness measurement principle, can be used to detect a variety of metal materials, accurate measurement value stability
Instantly showing the hardness measurement, and can be used in different formats conversion between hardness of freedom
Can be configured to 8 different impact device, automatic identification device for impact type, replaced without the need to re-calibrate
-Large screen LCD display, menu operation, information rich, intuitive
-High brightness LED back light, convenient in the dark
-Built in rapid thermal printer can print the measurement data, the scene immediately
-Low power consumption: Auto sleep, automatic shutdown function of saving energy
-Fully enclosed metal shell, strong anti-interference ability
Small, portable, and accurate. Suitable for harsh operating environment, anti vibration, shock and electromagnetic interference.
-Ordinary alkaline battery, standby time 150 hours, suitable for field operation
-Continuous working time: 10 hours
Application:
The bearings and other parts, heavy workpiece, metal material, pressure vessel, failure analysis of turbine generator unit and equipment
Mechanical or permanent assembly components have been installed, the test space is very narrow, requires the original record regular test results
Large workpiece within a wide range of more rapid test measurement site
Measuring Materials:
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel
Technical parameters:
Model | leeb160 |
Measuring Range | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
Hardness parameter | HL, HRC,HRB, HS,HB,HV |
Accuracy | Within±0.5%(HLD=760) |
Display | LCD with back-light |
Memory | 1250 groups |
PC Connection | Available |
Printer | Build-in High-speed Thermal Printer |
Battery type | 6V rechargeable lithium-battery |
Operating temperature | -20ºC~+60ºC |
Dimensions | 230×86×46mm |
Shell | Plastic |
Impact Device Type | D,DC,DL,D+15,G,C,E |
Weight | 450g |
Standard Delivery | Main unit,Impact Device type D,Operation manual,Power adapter,Small supporting ring,Cleaning brush,High block and Certificate,Batteries,Test block with calibration certificate |
Optional Accessories | Impact DC,D+15,DL,G,C,E,Shaped support ring,Paper for printer |
