Product Specifications
| Prod Model: |
EG_N430 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

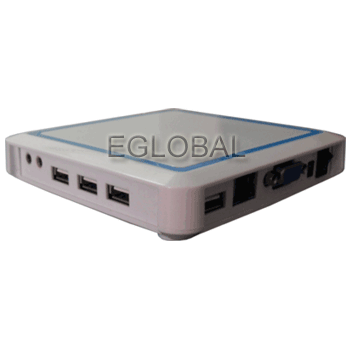

PC station N430 based on cloud computing technical, one host with unlimited client users! 4 USB port, wireless/ USB mouse and keyboard supported. PC station N430 excellent office work and also perfect in entertainment.
If you have many users work more than 10 meters away from the shared PC, and want to use USB flash driver or other USB products, select PC station N430. PC station N430 connects across a standard Ethernet local-area network, they just snap into place and can be just about as far away from the shared computer as you like.
PC station N430 share the excess power of standard PCS and make computing simple and affordable. You save money by sharing the cost of a single PC station N430 among multiple users. And your users feel like they each have their own PC while they simultaneously share common applications_including web browsers, e-mail, office suites, and multimedia. Every user has their own keyboard, screen, settings, applications, and data files, so their experience is just like it would be if they were working at an independent PC.
Save money, time, and aggravation
Efficiently share one PC station N430 with unlimited users
Dramatically reduce acquisition & support costs
Easy to set up, maintain, and secure
Flexible Ethernet networking
Supports Windows and Linux
Compact and reliable
Energy-efficient (under 5 watts per user)
|
Hardware |
|
CPU |
Onboard CPU ARM926EJ 533MHz |
|
Memory |
Onboard 64 MB RAM |
|
Storage |
Onboard 64 MB Flash |
|
System |
Buildin Windows CE 5.0, support all windows pro and linux HOST |
|
Size |
Access Device: 128*128*26mm
Shipping Size: 220*137*47mm |
|
Weight |
N430 Terminal: 200g
Shipping Weight: 500g |
|
Power Supply |
Input: 100-250 VAC, 50-60 Hz; Output: 5 VDC, 1 A
Nominal consumption: 5 Watts |
|
Front LED Indicators |
Green LED located on front of access device |
|
Internet function |
|
Connection to Host PC |
Unlimited distance via 100 Mb/s switched Ethernet connection |
|
Video Resolution |
640x480, 800x600, 1024x768(at 60or 70 Hz refresh rate) and 1280x1024(63Hz), 1440x900(60Hz). All feature up to 24-bit color support |
|
Language |
Local system English, support multipule language after connect to HOST |
|
Audio |
Stereo output and Microphone Input |
|
Internal HW |
All solid-state design, no moving parts, no fans, no local user storage Windows CE intergraded RDP protocols |
|
Reliability (MTBF) |
> > 100, 000 hours (calculated using Bellcore Issue 6 TR-332, Case 2, Part I at 40° C) |
|
HW Security |
No local user storage |
|
Terminal Service Software |
Max # Users
Per PC |
No limitation when using a server host OS (i. e. Windows Server 2003)
max 25 users when using a desktop OS (i. e. Windows XP) |
|
User Software |
PC Station terminal services software |
Supported Operating
Systems |
All Windows OS Professional, such as XP, 2003, 2008, VISTA, WIN7… , all Linux version with RDP protocol, such as Ubuntu10.04 |
|
System Requirements and Options |
|
Kit Contents |
EGLOBAL PC STATIONS Kit includes access terminal, power supply, software installation & user’ s guide, other peripherals like monitor or KB and mouse are NOT included and must be purchased separately. |
