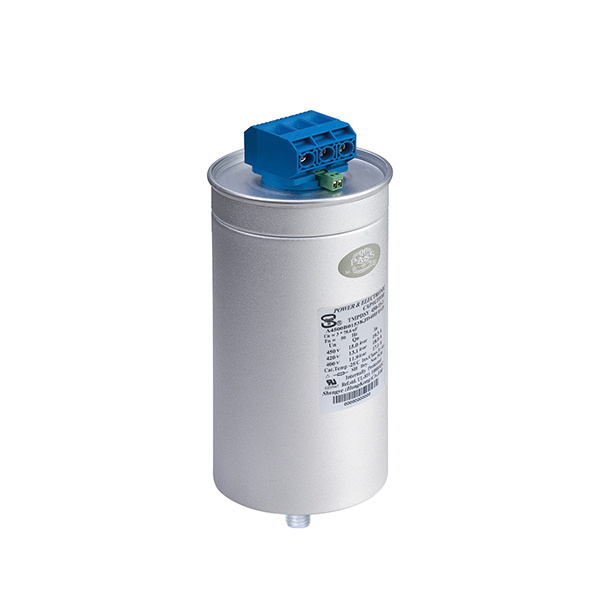

Three Phase Capacitor

Name: Three Phase Capacitor
Brand: china-manufacturer-directory.com
SKU: 772957735
Availability: InStock
Rating: 4.6 (135 reviews)

Price:	US $ 15-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Product introduction
H series capacitor is a new generation of power capacitor which we developed in our company. It has a number of patents for the world, and has mainly introduced the two protection structure for the use of capacitor in the market..
H series capacitor terminal leads to large current, mainly for large capacity occasions, the maximum can meet the use of 35mm2 wire. The new type of safety explosion-proof structure, the terminal uses the building block structure, the appearance is more beautiful and exquisite, the product interior is inflatable structure. Stable and reliable performance, with a high ability to resist inrush, meet the highest environmental rating requirements.
When the system due to harmonics, voltage and other factors caused by capacitor over temperature operation, the structure of capacitor will output a control signal, cut off switch, into the over temperature protection, prohibited capacitor into the power grid, until the environment is reduced to acceptable range to enter into the working state, to prolong the service life of the capacitor; when the starting capacitor overvoltage protection device, to cut off the main circuit and output control signal, cut off switch, multiple protection. In by a plurality of parallel capacitors and reactors in series detuning compensation and tuning filter system, the capacitance of the secondary protection circuit used in tandem, avoid due to one or a plurality of capacitor failure caused by the resonance point deviation, which led to a harmonic current amplification, causing the system to crash. Will the system of accidental failure compulsory withdrawal from the working state until the proper maintenance is completed, to prevent the expansion of the accident.

2,Technical parameter list

1,Standard of implementation
· National standardGB/T 12747.1-2004 GB/T 12747.2-2004
· International Commission for electrical engineeringIEC60831-1-2002 IEC60831-2-1995
· U.S.A UL810-2008
	International and national standards	Special design of win industry
2,Environment of use
Temperature	-25/C	The lowest-40ºC,the highest+70ºC
Altitude	≤2000m	≤5000m
Relative humidity	≤95%	≤95%

3,Conventional parameters
Rated voltage(Un)	400V/415V,440V/450V,480V,525V,690V(Other customizable)	1000VThe following arbitrary customization
Rated frequency(fn)	50Hz	60HzOr other frequency
Rated capacity(Qn)	5~30 kvar	2.5~100kvar
Capacity accuracy	-5%~+10%	±3%
Interphase unbalance	≤1.08	≤1.04
Loss tangent	tgδ≤0.001	tgδ≤0.001
Extreme pressure	2.15Un/5S	≥2.5Un/5S
Extreme pressure	3600V/2S	5000V/2S
Self discharge performance	After the power 3min remaining voltage 75V the following	1min or shorter

4,Operating parameters
Overvoltage	1.1Un	1.35Un
Over current	1.3In	1.6~3In

5,Reliability, explosion-proof
Reliability	At the rated voltage and nominal temperature of the 60000/5000 hours, the product failure is less than 6%/0.5% (1ppm hours), reaching the American electrical industry association standard EIA-456-A requirements.
Reliability
Explosion-proof mode	Tensile explosion-proof + two explosion-proof explosion-proof

2,Conventional specifications selection table (other voltage levels can be customized)

Scifications	Vltage (V)	Cpacity (kVAr)	Cpacitance (uF)	Crrent (A)	Pduct size (mm)	Pking size (mm)	Pckaging (a/box)
TMPDSY400-5-3	400	5	99.5	7.2	Φ76×175-M12*16	415175340	7
TMPDSY400-7.5-3	400	7.5	149.3	10.8	Φ76×240-M12*16	41517534	7
TMPDSY400-10-3	400	10	199.0	14.4	Φ76×240-M12*16	415175340	7
TMPDSY400-12-3	400	12	238.9	17.3	Φ86×240-M12*16	415175340	5
TMPDSY400-15-3	400	15	298.6	21.7	Φ96×240-M16*25	415175340	4
TMPDSY400-20-3	400	20	398.1	28.9	Φ106×240-M16*25	415175340	3
TMPDSY400-25-3	400	25	497.6	36.1	Φ106×285-M16*25	415175390	3
TMPDSY400-30-3	400	30	597.1	43.3	Φ116×285-M16*25	415175390	3

TMPDSY415-5-3	415	5	92.5	7.0	Φ76×175-M12*16	415175340	7
TMPDSY415-7.5-3	415	7.5	138.7	10.4	Φ76×240-M12*16	415175340	7
TMPDSY415-10-3	415	10	184.9	13.9	Φ76×240-M12*16	415175340	7
TMPDSY415-12-3	415	12	221.9	16.7	Φ86×240-M12*16	415175340	5
TMPDSY415-15-3	415	15	277.4	20.9	Φ96×240-M16*25	415175340	4
TMPDSY415-20-3	415	20	369.8	27.8	Φ106×240-M16*25	415175340	3
TMPDSY415-25-3	415	25	462.3	34.8	Φ116×240-M16*25	415175340	3
TMPDSY415-30-3	415	30	554.7	41.7	Φ116×285-M16*25	415175390	3

TMPDSY450-5-3	450	5	78.6	6.4	Φ76×175-M12*16	415175340	7
TMPDSY450-7.5-3	450	7.5	118.0	9.6	Φ76×175-M12*16	415175340	7
TMPDSY450-10-3	450	10	157.3	12.8	Φ76×240-M12*16	415175340	7
TMPDSY450-12-3	450	12	188.7	15.4	Φ76×240-M12*16	415175340	7
TMPDSY450-15-3	450	15	235.9	19.2	Φ86×240-M12*16	415175340	5
TMPDSY450-20-3	450	20	314.5	25.7	Φ96×240-M16*25	415175340	4
TMPDSY450-25-3	450	25	393.2	32.1	Φ106×240-M16*25	415175340	3
TMPDSY450-30-3	450	30	471.8	38.5	Φ116×240-M16*25	415175340	3

TMPDSY480-5-3	480	5	69.1	6.0	Φ76×175-M12*16	415175340	7
TMPDSY480-7.5-3	480	7.5	103.7	9.0	Φ76×175-M12*16	415175340	7
TMPDSY480-10-3	480	10	138.2	12.0	Φ76×240-M12*16	415175340	7
TMPDSY480-12-3	480	12	165.9	14.4	Φ86×240-M12*16	415175340	5
TMPDSY480-15-3	480	15	207.3	18.0	Φ86×240-M12*16	415175340	5
TMPDSY480-20-3	480	20	276.5	24.1	Φ106×240-M16*25	415175340	3
TMPDSY480-25-3	480	25	345.6	30.1	Φ116×240-M16*25	415175340	3
TMPDSY480-30-3	480	30	414.7	36.1	Φ116×285-M16*25	415175390	3

TMPDSY525-5-3	525	5	57.8	5.5	Φ76×175-M12*16	415175340	7
TMPDSY525-7.5-3	525	7.5	86.7	8.2	Φ76×240-M12*16	415175340	7
TMPDSY525-10-3	525	10	115.5	11.0	Φ76×240-M12*16	415175340	7
TMPDSY525-12-3	525	12	138.7	13.2	Φ86×240-M12*16	415175340	5
TMPDSY525-15-3	525	15	173.3	16.5	Φ96×240-M16*25	415175340	4
TMPDSY525-20-3	525	20	231.1	22.0	Φ106×240-M16*25	415175340	3
TMPDSY525-25-3	525	25	288.9	27.5	Φ116×240-M16*25	415175340	3
TMPDSY525-30-3	525	30	346.6	33.0	Φ116×285-M16*25	415175390	3

TMPDSY690-5-3	690	5	100.3	4.2	Φ76×175-M12*16	415175340	7
TMPDSY690-7.5-3	690	7.5	150.5	6.3	Φ76×240-M12*16	415175340	7
TMPDSY690-10-3	690	10	200.7	8.4	Φ76×240-M12*16	415175340	7
TMPDSY690-12-3	690	12	240.8	10.0	Φ86×240-M12*16	415175340	5
TMPDSY690-15-3	690	15	301.0	12.6	Φ96×240-M16*25	415175340	4
TMPDSY690-20-3	690	20	401.4	16.7	Φ106×240-M16*25	415175340	3
TMPDSY690-25-3	690	25	501.7	20.9	Φ106×285-M16*25	415175390	3
TMPDSY690-30-3	690	30	602.0	25.1	Φ116×285-M16*25	415175390	3

2,Conventional specifications selection table (other voltage levels can be customized)

Scifications	Vltage (V)	Cpacity (kVAr)	Cpacitance (uF)	Crrent (A)	Pduct size (mm)	Pking size (mm)	Pckaging (a/box)
TMPDSY400-5-3	400	5	99.5	7.2	Φ76×175-M12*16	415175340	7
TMPDSY400-7.5-3	400	7.5	149.3	10.8	Φ76×240-M12*16	41517534	7
TMPDSY400-10-3	400	10	199.0	14.4	Φ76×240-M12*16	415175340	7
TMPDSY400-12-3	400	12	238.9	17.3	Φ86×240-M12*16	415175340	5
TMPDSY400-15-3	400	15	298.6	21.7	Φ96×240-M16*25	415175340	4
TMPDSY400-20-3	400	20	398.1	28.9	Φ106×240-M16*25	415175340	3
TMPDSY400-25-3	400	25	497.6	36.1	Φ106×285-M16*25	415175390	3
TMPDSY400-30-3	400	30	597.1	43.3	Φ116×285-M16*25	415175390	3

TMPDSY415-5-3	415	5	92.5	7.0	Φ76×175-M12*16	415175340	7
TMPDSY415-7.5-3	415	7.5	138.7	10.4	Φ76×240-M12*16	415175340	7
TMPDSY415-10-3	415	10	184.9	13.9	Φ76×240-M12*16	415175340	7
TMPDSY415-12-3	415	12	221.9	16.7	Φ86×240-M12*16	415175340	5
TMPDSY415-15-3	415	15	277.4	20.9	Φ96×240-M16*25	415175340	4
TMPDSY415-20-3	415	20	369.8	27.8	Φ106×240-M16*25	415175340	3
TMPDSY415-25-3	415	25	462.3	34.8	Φ116×240-M16*25	415175340	3
TMPDSY415-30-3	415	30	554.7	41.7	Φ116×285-M16*25	415175390	3

TMPDSY450-5-3	450	5	78.6	6.4	Φ76×175-M12*16	415175340	7
TMPDSY450-7.5-3	450	7.5	118.0	9.6	Φ76×175-M12*16	415175340	7
TMPDSY450-10-3	450	10	157.3	12.8	Φ76×240-M12*16	415175340	7
TMPDSY450-12-3	450	12	188.7	15.4	Φ76×240-M12*16	415175340	7
TMPDSY450-15-3	450	15	235.9	19.2	Φ86×240-M12*16	415175340	5
TMPDSY450-20-3	450	20	314.5	25.7	Φ96×240-M16*25	415175340	4
TMPDSY450-25-3	450	25	393.2	32.1	Φ106×240-M16*25	415175340	3
TMPDSY450-30-3	450	30	471.8	38.5	Φ116×240-M16*25	415175340	3

TMPDSY480-5-3	480	5	69.1	6.0	Φ76×175-M12*16	415175340	7
TMPDSY480-7.5-3	480	7.5	103.7	9.0	Φ76×175-M12*16	415175340	7
TMPDSY480-10-3	480	10	138.2	12.0	Φ76×240-M12*16	415175340	7
TMPDSY480-12-3	480	12	165.9	14.4	Φ86×240-M12*16	415175340	5
TMPDSY480-15-3	480	15	207.3	18.0	Φ86×240-M12*16	415175340	5
TMPDSY480-20-3	480	20	276.5	24.1	Φ106×240-M16*25	415175340	3
TMPDSY480-25-3	480	25	345.6	30.1	Φ116×240-M16*25	415175340	3
TMPDSY480-30-3	480	30	414.7	36.1	Φ116×285-M16*25	415175390	3

TMPDSY525-5-3	525	5	57.8	5.5	Φ76×175-M12*16	415175340	7
TMPDSY525-7.5-3	525	7.5	86.7	8.2	Φ76×240-M12*16	415175340	7
TMPDSY525-10-3	525	10	115.5	11.0	Φ76×240-M12*16	415175340	7
TMPDSY525-12-3	525	12	138.7	13.2	Φ86×240-M12*16	415175340	5
TMPDSY525-15-3	525	15	173.3	16.5	Φ96×240-M16*25	415175340	4
TMPDSY525-20-3	525	20	231.1	22.0	Φ106×240-M16*25	415175340	3
TMPDSY525-25-3	525	25	288.9	27.5	Φ116×240-M16*25	415175340	3
TMPDSY525-30-3	525	30	346.6	33.0	Φ116×285-M16*25	415175390	3

TMPDSY690-5-3	690	5	100.3	4.2	Φ76×175-M12*16	415175340	7
TMPDSY690-7.5-3	690	7.5	150.5	6.3	Φ76×240-M12*16	415175340	7
TMPDSY690-10-3	690	10	200.7	8.4	Φ76×240-M12*16	415175340	7
TMPDSY690-12-3	690	12	240.8	10.0	Φ86×240-M12*16	415175340	5
TMPDSY690-15-3	690	15	301.0	12.6	Φ96×240-M16*25	415175340	4
TMPDSY690-20-3	690	20	401.4	16.7	Φ106×240-M16*25	415175340	3
TMPDSY690-25-3	690	25	501.7	20.9	Φ106×285-M16*25	415175390	3
TMPDSY690-30-3	690	30	602.0	25.1	Φ116×285-M16*25	415175390	3

Prod Model:	TMPDSY480-30-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Polypropylene Capacitor
Application:	High Voltage
Package Type:	Surface Mount
Capacitance:	>100uf

Shengye Electrical Co., Ltd. Founded in 1996, is a national high-tech enterprises, products widely used in household appliances, power distribution system without reactive power compensation, power electronics industry, new energy industry, 70% of which are exported to Europe, America, is a set research development, production, sales and after-sales service in one of the large-scale professional film capacitors and related electronic strength of enterprises.

Shengye Electrical Co., Ltd. Covers an area of about 30000 square meters, the existing staff of more than 700 people, Shengye Industry Electrical always adhere to the to a modern enterprise system as a guide, and constantly improve the internal management mode of operation, established Shengye College of industry and promotion of enterprise culture, the management training to carry out learning activities, training employees self development, implement the functions of the post promotion mechanism, strive to build a reasonable value of the performance distribution system, to culture to attract talent, with beautiful modern office environment to retain talent, let every Shengye industry "to plant home", rooted in the industry.

Shengye Electrical Co., Ltd. Always adhere to the "excellence, allows users to rest assured that, together, Chuangsheng industry brand" quality policy, and a number of internationally renowned enterprises established cooperative relations, has more than 40 national patents, passed the ISO14001 environmental management system, OHSMS18001 health and safety system certification and UL, China CQC, Germany VDE, TUV and international CB product certification, including wins in industry power capacitor is the first domestic enterprises through the UL10000AFC certification.
