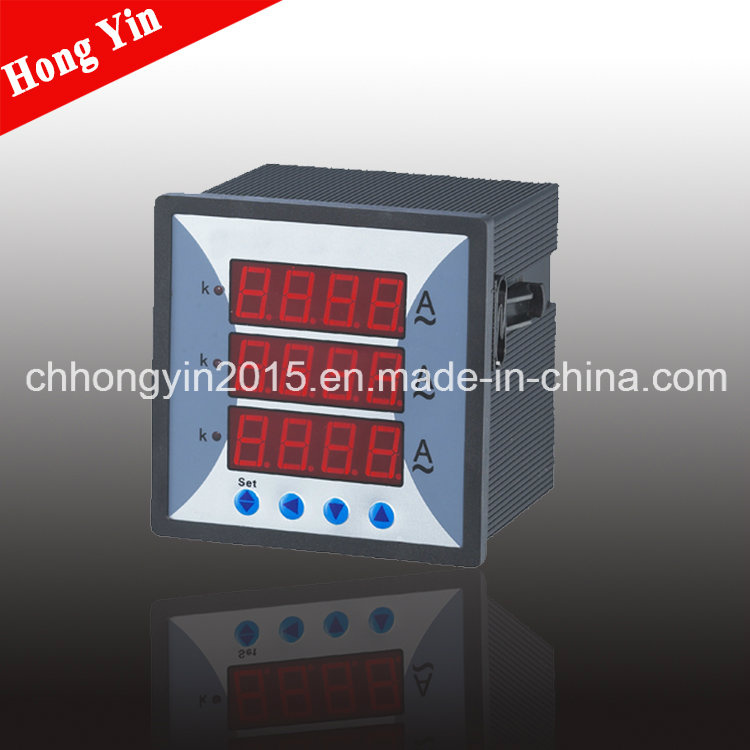

Product Specifications
| Prod Model: |
DM96-3I |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
96*96,72*72,96*48 |
| Phase: |
Three Phase |
| Function: |
Current |
| Kind: |
Hot-wire |
| Application: |
Telecommunications |
| Display: |
Digital |
| Installation: |
General Installation Meter |
| Theory: |
Electronic Meter |
| Power Source: |
AC and DC |
Product Description
Function:
Real- time Measurement and indication on AC or DC Voltage(Current) in an electric circuit; Programmable CT/PT ratio; Higher and lower limit alarm output and programmable rely time of alarm.
Measuring range:
AC ammeter AC 0.05-6A, external CT is necessary if more than 6A.
DC ammeter DC 0.05-6A, external electrical shunt is necessary if more than 6A.
Accuracy: ±(0.5%FS + 1 digit)
Measuring display mode:4 LED nixietube effective value display.
Resolution: last figure one digit
Overflow indication the top digit display “1” or "-1" and other digit hiding
Auxiliary power supply: AC 220V±10%
Alarm contact capacity: AC 250V/1A
Alarm Shift Difference :0.1 %FS -50.0% FS
Alarm Delay time: 0.0-99.9s Programmable
Terminal arrangement and wiring connection:
Power : Auxiliary power input port of instrument, Auxiliary power suppy is AC 220V±10%(please note if you need special power supply) .
Input: Signal input port of instrument, HI represents "+“ port of DC input signal. fire wire terminal of AC voltage input signal and inlet wire terminal of AC current input signal.
LO : "-" port of DC input signal, the other one wire of AC voltage input signal;the outlet wire terminal of AC current signal input
OUT: the alarm contact output port of meter
| Model | Product name | Panel size (mm) | Fixing size(mm) | QTY/CTY |
DM96-I
| single phase digital ammeter | 96*96 | 91*91 | 36 |
| DM72-I |
| 72*72 | 67*67 | 36 |
| DM9648-I |
| 96*48 | 91*45 | 45 |
| DM48-I |
| 48*48 | 45*45 | 48 |
| DM96-3I | Three phase digital ammeter | 96*96 | 91*91 | 100 |
| DM 72-3I |
| 72*72 | 67*67 | 36 |
| DM48-3I |
| 48*48 | 45*45 | 48 |
| DM96-DI | DC digital ammeter | 96*96 | 91*91 | 36 |
| DM72-DI |
| 72*72 | 67*67 | 36 |
