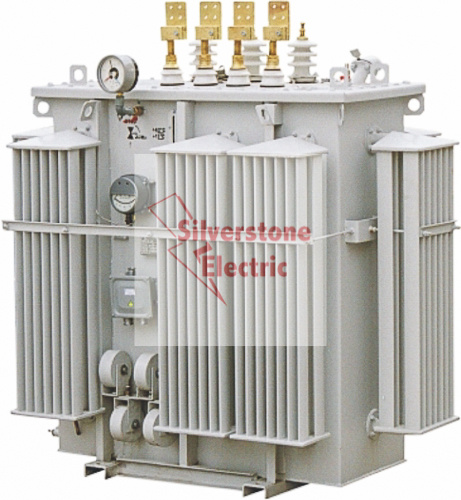

Three Phase Double Winding 20kv Distribution Transformer with off Circuit Tap Changer

Product Specifications

Prod Model:	S11-M S12-M S13-M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Application:	Audio

Product Description

Transmission and distribution system from distant power plants will be delivered to the user by adjusting the electrical energy transmitted through high voltage transmission lines, and substations buck after a few levels to suit the user. Located near the end-users of electricity distribution transformers reduce the voltage to a suitable final value. The voltage is reduced to electrical equipment operating voltage transformer called distribution transformers, transformers such as power plants with a daily lighting and generally low-to 0.4kV and below. Distribution transformer capacity is small, generally in 2500 kVA and below; Once the voltage is lower, in 35 kV and below. Unlike ordinary oil-immersed transformers, I produced a sealed distribution transformer conservator removed from the main body of the fin corrugated tank as the heat expansion and contraction components, transformer oil and the atmosphere is completely isolated. Including the transfer capacity of distribution transformers and dual voltage transformers and distribution transformers. Yung tune with the size of the transformer is a two-capacity, and can be adjusted according to load size distribution transformers. Changing the high voltage winding connection methods, and low-voltage winding series of conversion as well as the adjustment of the tap without excitation by a special tone volume switch is complete. Meanwhile, large-capacity transfer small capacity, low pressure due to the increased number of turns, the core flux density significantly reduced, leaving the smaller loss silicon steel unit, load loss and no-load current is also reduced, to Energy Conservation purposes. Dual voltage distribution transformer is a kind of size of the two voltages, and can be adjusted according to the grid voltage distribution transformers. High voltage winding and the series of transformations, and then adjust each sub-section of the non-excited by a special switch is complete.


Our Transformer Product Range
S10 S11 S13 oil type transformer: 50-31500KVA, 6-33KV, 50/60HZ, off load tape changer
SZ10 SZ11 oil type transformer: 50-31500KVA, 6-33KV, 50/60HZ, on load tape changer
SCB9, SCB11 dry type transformer: F grade insulation, 50-3150KVA, 6-33KV, 50/60HZ
SCBH15 11KV amorphous alloy dry type transformer: F grade insulation
SGB10 SGB11 11KV dry type transformer: H grade insulation
SBH15 Oil type amorphous alloy transformer 11KV Level
S13-M 1full sealed oil immersed power transformer
Dry type reactor
S(B)H15-16 Amorphous Transformer
BKSC(G)Dry-type shunt reactor
QKSC Dry Startup reactor
Smoothing reactors

KD-LK-type low-pressure filter reactor
Cast resin dry type earthing transformer
Dry type rectifier transformer
Rectifier transformer
Furnace transformer
Note: We can design and manufacture special transformer as customers' requirements.
Ordering Instruction: 1. Product model; 2. Rated capacity; 3. Voltage range; 4. Regulation range; 5. Frequency; 6. Connection symbol; 7. Technical specs for customized transformer.
