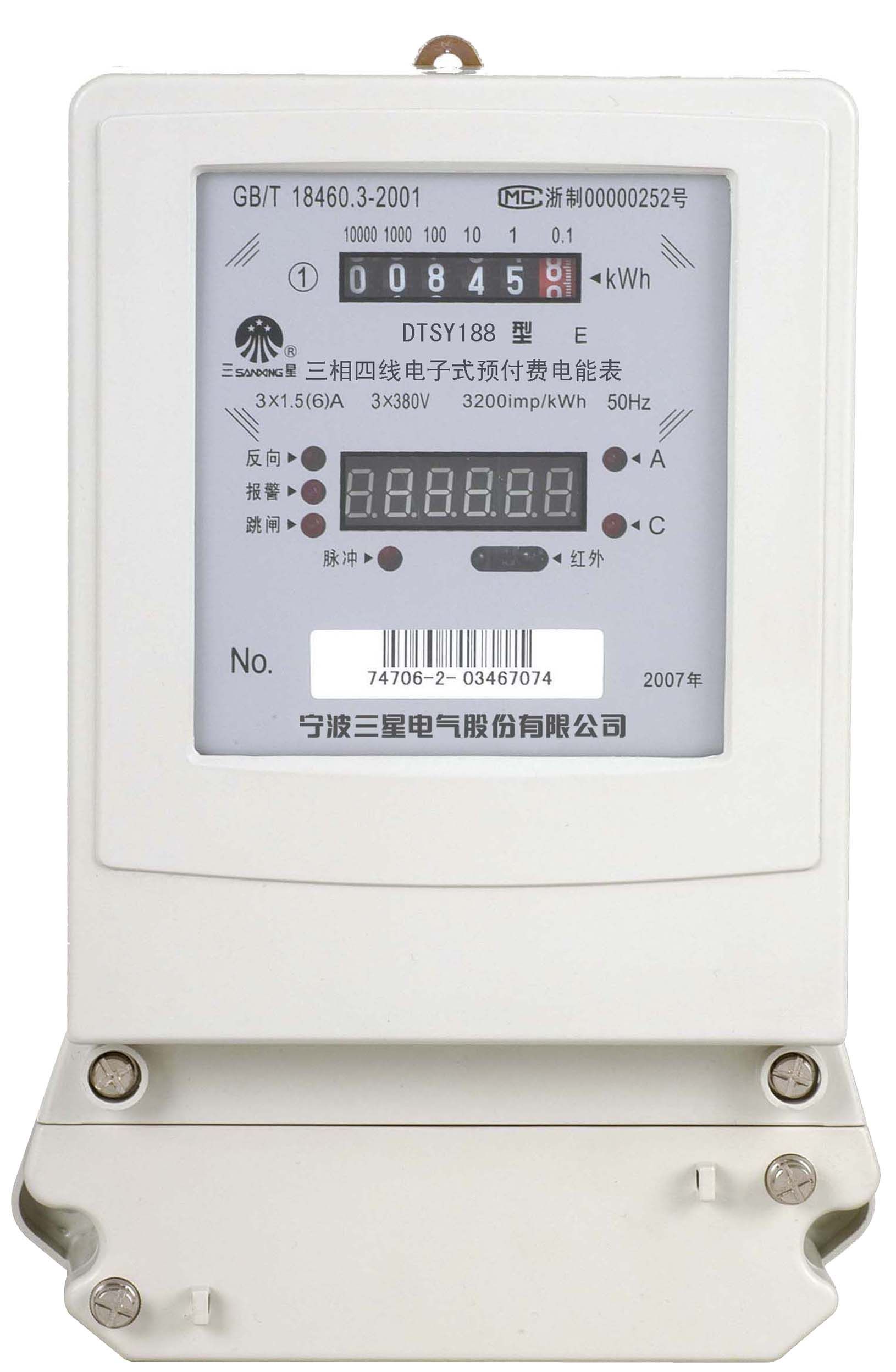

Product Specifications
| Prod Model: |
DTSY188 E |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Electric Equipment: |
Three-phase Four-wire |
| Installation: |
Direct Connected |
| Power Source: |
AC Meter |
| Theory: |
Static Meter |
| Usage: |
Standard Electric Energy Meter |
Product Description
Conformed Standards
@IEC 62053-21: 2003: Alternating Current Static Watt-hour Meters for Active Energy (classes 1 and 2)
@GB/T 18460.3-2001: Prepaid Watt-Hour Meter
@IEC 60529: Degrees of Protection Provided by Enclosures (IP code)
Main Features
@Advanced measuring chip and high reliable CPU, manufactured with advanced SMT process
@Bidirectional active/reactive energy measurement, energy consumption unidirectional accumulation
@Data security: HW logic encryption or smart card - embedded CoS plus dynamic 3DESencryption (optional), Embedded ESAM chip (optional), etc.
@Power switching due to overload or over current limit.
@Integrated prepaid vending system and consumption inspection feature
@Programmable overdrawn credit
@Remaining credit alarm by LCD and buzzer (optional)
@LCD with backlight
@Communication mode: RS485, IR(optional)
@Opto-isolated energy pulse output for accuracy verification
@For further details, please refer to User Manual
Accuracy Class
| 1.0
| Power Consumption
| Voltage Circuit
| ≤2W /5VA
|
Rated Voltage
| 3×100V, 3×380V, 3×220/380V
| Current Circuit
| ≤1VA
|
Fast Transient Burst
| 4kV
|
Operational Voltage
| 0.7Un~1.2Un
| AC Voltage Test
| 2kV
|
Limited Operational Voltage
| 0~1.3Un
| Impulse Voltage Test
| 6kV
|
Reference Frequency
| 50/60Hz
| Surge Test
| 4kV
|
Current Specification
| 2.5(10)A, 5(20)A, 10(40)A, 15(60)A, 20(100)A
| ESD
| 8kV
|
Operational Temperature
| -25~55
|
Starting Current
| 0.004Ib
| Limited Temperature
| -40~70
|
Display
| LCD with optional backlight
| Storage Temperature
| -40~70
|
Net Weight
| ≈1.8kg
| Average Rel. Humidity
| ≤85%
|
Life
| 10 years
| Dimension
| 249mm×170mm×76.5mm
|
Ningbo Sanxing Electric Co., Ltd. Is a key branch company of the AUX Group, which was founded in 1986. With more than 4, 000 employees, Sanxing is one of the largest electric meter manufacturers in the world. Our production capacity is up to 25, 000, 000 pieces and our market share in China has reached 30%.
With more than 250 professional engineers and 8% of our total sales revenue invested in R&D, we were accredited as one of the National Technology Centers, which has developed various products and services from long-life mechanical meters to various kinds of digital meters, AMR and prepaid systems, and innovative project solutions. Sanxing prepaid systems have dominated the domestic market.
Sanxing has accelerated information processes. We have introduced Office Automation Systems, Enterprise Resource Planning Systems, Enterprise Human Resource Systems and Financial Management Systems to improve efficiency, and we have been named as a benchmarking enterprise by the Ministry of Information Industry of the PRC.
Having passed ISO9001-94 certification in 1997, ISO9001: 2000 certification in 2003 and KEMA certification in 2004, with a distinguished brand image and strict quality management system, Sanxing has established sales and service networks all over the country. Now, we export our products to many countries and regions, such as Asia, Africa, South America, and Europe.
We are looking forward to being the best supplier for you. We believe that with excellent corporate culture, Sanxing will develop into a well-known multi-national manufacturer in the electronics field.
