Product Specifications
| Prod Model: |
90BYG3502F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current: |
2.3A |
| Voltage: |
80-350V |
| Hold Torque: |
4nm |
Product Description

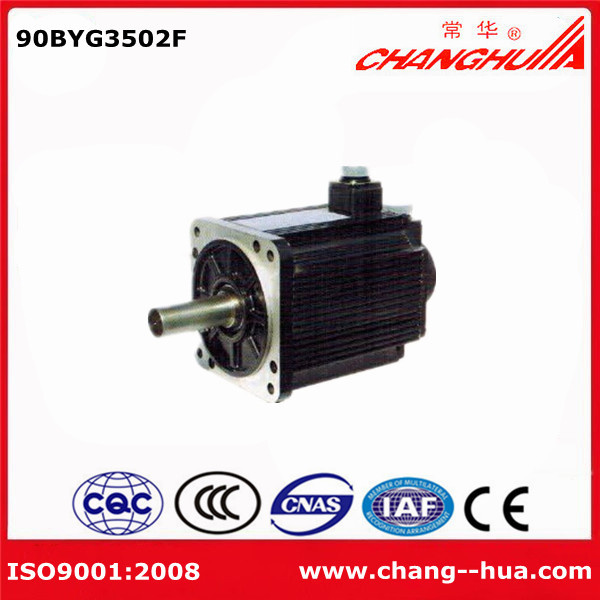

Step Motor (90BYG3502)
Good quality of step motor, stepping motor, stepper motor.
1. Low noise
2. High precision
3. Stable operation
Widely applied on CNC machines, CNC lathes, equipments, facilities, textile machinery.

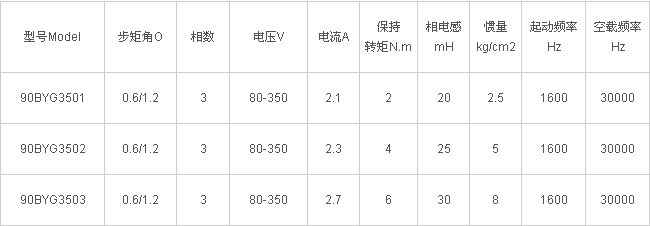

Step angle - 0.6/1.2°
Voltage - 80~350V
Current - 2.3A
Maintain torque - 4Nm
Inductance - 25mH
Inertia - 5kg/cm
Start frequency - 1600Hz
No-load frequency - 30000Hz

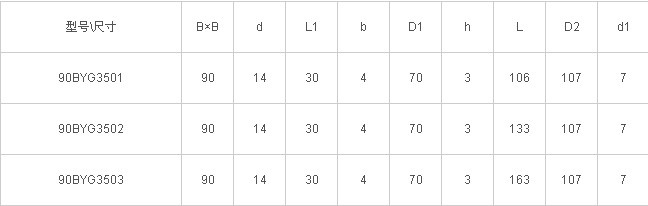

Size - 90mm
Shaft Diameter - 14mm
Flange - 70mm
Cross installing holes distance - 107mm
Total length - 133mm
Changzhou Changhua Electric Motor Co., Ltd. is situated in Qishuyan District, which is reputed as one of the richest land in the South of the Yangtze River, halfway between Wuxi and Changzhou. The company is next to Beijing-Shanghai Railway, Shanghai-Nanjing Highway, Changzhou Airport. The traffic is convenient.
The company was launched in 1977, covering an area of 18, 000m2 including 12, 000m2 workshop areas. We have various metal-processing equipments, about 200 processing machine with high precision and more than 50 skilled engineers and technicians. We are skilled in designing the electrical motor and in machining the electrical and mechanical fixture for rail.
We specialize in manufacture of fractional horsepower motor, micro-motor, NC stepping motor and various electrical or mechanical fixture for locomotive. We are one of the appointed manufacturers of stepping motor for National Department of Weapons. Our electrical motor products are widely used in many automatic mechanical equipment of communications, surveillance radar, NC machine, robot, embroidering machine, packaging and printing, medical industry, air-condition. We are also appointed by Ministry of Railways to manufacture the electrical and mechanical fixture for rail. We have a full range of finishing equipment of fixture for locomotive and reliable quality assurance system.
The company has been ISO9001: 2000 certified for quality and our products has sound reputation at home and abroad with registered brand "Changhua"
