Product Specifications
| Prod Model: |
CM18-8-DNA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
NPN No |
| Detect Distance: |
0-8mm |
| Mounting: |
Non-Flush |
| Supply Voltage: |
10-30VDC |
| Connection: |
2m PVC Cable |
| Short-Circuit Protection: |
Yes |
| Type: |
Capacitive Sensor |
Product Description

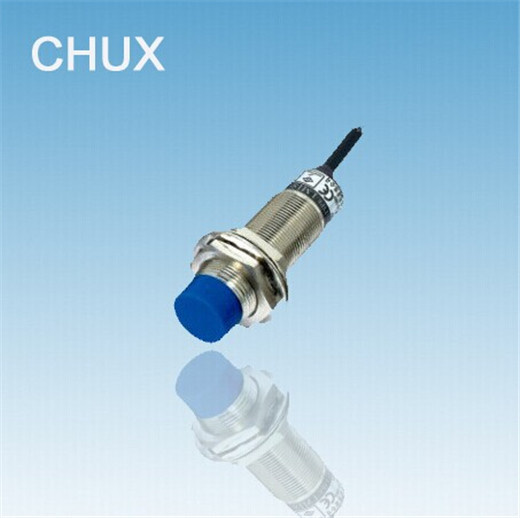

Three Wires capacitive sensor switch (CM18-8-DNA)
Model instruction
For examples:
I M 1 2 - 2 - D N A -L
I M: Inductive cylinder type IMF: Inductive square type CM: Capacitive type HM: Hall sensor
XM: Linear sensor
12: Outward code
2: Detect distance: 2mm 4mm 5mm...
D: DC three wires AC: AC two wires DL: AC three wires
N: NPN output
A: NO B: NC C: NO+NC
L: Addition function L: Long sensing distance C: With connector
Main features:
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Parameter Data
| Model | CM18-8-DNA |
| Mounting | NON-Flushed |
| Sensing distance | 0-8mm |
| Supply voltage | 10-30VDC |
| Output | NPN NO |
| Load current | <200mA |
| Voltage drop | <2.5V |
| Current consumption | <15mA |
| Repeated accuracy | <3% |
| Frequency | 50Hz |
| Output display | LED lighting |
| Polarity protection | Yes |
| Short-circuit protection | Yes |
| Ambient temperature | -25~+75C |
| Protection degree | IP54 |
| Housing material | copper alloy |
| Connection | 2m PVC Cable |
| Certification | CE, |
| |
Chance-electric limited Co. Which has been established on 2008 years, and engaged in the production, research, development and technical innovation of sensor, SSR, power supply and float switch.
Our company mainly deals in 10 production: Proximity switch, photoelectric switch, color mark sensor, switching power supply, DIN RAIL power supply. UPS Charger power supply. LED power supply, water level control, float switch, solid state relay for 100 series and over 2000 kinds of specifications. And we exports our products to many other outside countries such as Brazil, Poland, India, Iran, UK and so on.
Our company has about 80 workers and five floors about 1500squares meters, and we do exports for 6years, Welcome to visit our company.
Sticking to the quality guideline of "quality is the soul of production", and as " try our best to do for you ", we had exports products to many outside countries, also win a good reputation among our customers. Our goods mainly export to Braizil, Unite state, South America and Middle East Area and so on.
Also we always understand if one brand want to build in the markets for long long time, firstly we must have the steady quality. It is most important. And the quality steady is not just the function steady but also include outward beautiful, lable beautiful, packing and so on.
Also we notice the service, we will be reply the mails fastly and effectively. Also during the order produce, we will be mail customers the pictures of the order produce and packing. As the customers will know how about their orders progress. Also we will be inform customers our new products at the first time. And knows well about customers markets and position. Also we can do OEM brand for customer.
We are keeping our business principles for "Approaching the first-class management, producing the first-class products, providing the first-class service". All Chance staffs are working hard and constantly innovate. Hope to cooperate with you and create brilliance together! We are Waiting for your contact!
