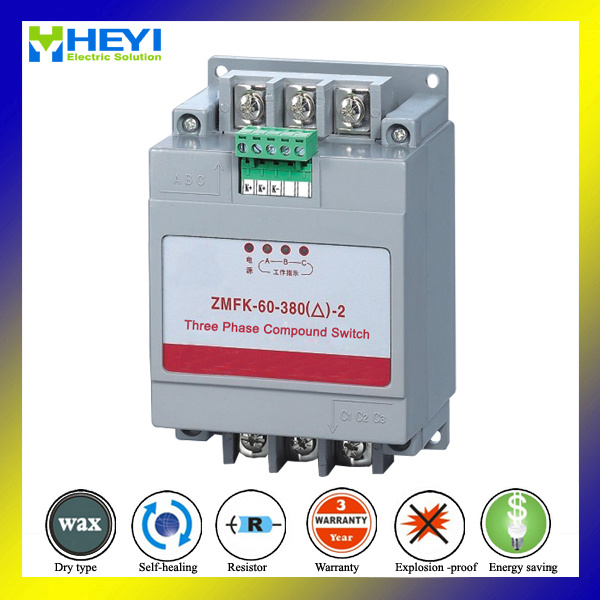

Thyristor Module Switch match for power capacitor three phase 380v 60A
low power consumption,
long service life,
It can replace the contactor or thyristor switch
Thyristor Module Switch match for power capacitor three phase 380v 60A specification
Serial | Thyristor Module Switch match for power capacitor three phase 380v 60A |
1.ambient temperature: | -20~65 degree |
2.relative humidity: | 40 degree is 20-90% |
3.frequecny: | 50Hz /60Hz |
4.rated voltage : | 380/220v 3p 4w AC |
5.Degree of distortion | less than 5% |
7perminssible deviation : | :the synchronous change of three phase voltage is less than ±20% |
8.number of phase : | three phase (-connection )and signle phase (Y-connection) |
9.controll capacity : | ≤30kvar at three phase integrated compensation |
10.service life : | 500000times |
11.rated current : | 45/55A |
12.power consumption | ≤1.5VA |
13.contact voltage drop: | ≤100mV |
14.contact withstand voltage : | ≥1600v |
15.response time : | ≤100ms |
16.interval of every making and breaking | ≥1s |
17.single phase separate compensation : | ≤10kvar |
18.interval of continuous two making | ≥60s |
19.start up voltage : | DC6-24V |
20.input impendence | ≥6.8k |
21.conduction impendence | ≤0.003Ω |
Thyristor Module Switch match for power capacitor three phase 380v 60A advantage
1.20 years global leading profession manufacture of reactive power compensate
2. No power pollution
3.Zero voltage trigger no inrush current
4.Zero current resection without arc
5.It replace solid switch , solid switch replace ac contactor
6..Fast delivery : you will get the order when you need it
7.OEM is warmly welcome
8.Convenient : 45 minutes to wenzhou airport
Thyristor Module Switch match for power capacitor three phase 380v 60A function
1.zero cross switching
Its methods to realize the current zero- cross cut off are that at the time of switching off , the thyristor conducts the zero-cross triggering operation at first at the minute of voltage zero cross .after stabilize the magnetic latching relay attracts and conducts and in switch off ,the magnetic latching relay is cut out first . then the thyristor conducts the time delay zero-cross switch off operation . in order to realize the current zero-cross cut off operation.
2.voltage phase failure protection
When the system voltage is supplied under phase failure .the switch refuses the closing operation ,after the system is switched on ,if the phase failure happens again .the system refuses the switching on operation automatic
3.under voltage protection
When the voltage is 20% of rated voltage or less than (220v) the switch refuse the close operation .and it will protect by itself .the system automatically monitors the operation state of thyristor and magnetic latching relay , if the system has the trouble ,it refuse the making operation and exits from the switch on operation or conducts the breaking operation
4.power failure protection
After switching on if the power is cut off immediately ,it will trip and switch off automatically
5.no harmonic wave making
At the time of conduction ,the thyristor conducts the zero cross triggering operation ,after delaying relay attracts and conducts ,therefore the attraction and conduction of relay can't produce the harmonic wave
6.low power consumption
Due to using the magnetic latching relay ,the control device consumes the power only at the moment of switching operation ,usually it can't cause any power consumption ,and due to the small contact resistance of magnetic latching relay , it can't produce the heat ,thus it is unnecessary to equip the radiator of fan , to reduce the cost and thoroughly avoid burning the Thyristor and damaging other electric appliances running with the system .as as to achieve the aim of saving energy and lowering the consumption
7.photoelectric isolation between the input signal and compound switch
Strong interference resistance and reliable and safety operation ,the products adopt the advanced intelligent control technology and the latest electronic elements ,compared with the similar products ,It has ultra high performance in the respect of inrush current and reliability
Thyristor Module Switch match for power capacitor three phase 380v 60A Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.
Thyristor Module Switch match for power capacitor three phase 380v 60A Packing information
1. Inside foam package ,outside strong paper package
2. 10pcs/per CTN
3. G/N.W: 16/15kg
4. We can packing as your required,good looking design
Why choose Thyristor Module Switch match for power capacitor three phase 380v 60A
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
We are the professional manufacturing the 0.5-35 KV outdoor indoor, dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
We are the first one who been granted the transformer production license by National technical supervise bureau, Machinery industry Dept, national electrician committee.
The company holds the registered capital of RMB1 0, 000, 000.00, and her importing & exporting amount each year exceeds USD 1, 000, 000.00, The company is provided with the Management Dept, Marketing Dept, Engineering & Technology Dept, Quality Control Dept, Material Supply Dept, Production Planning Dept, Financial Dept and so on. Currently it has 309employees, including 6 engineers and 10 technicians. The company has a strong technical force, advanced production and test equipment and the world latest manufacturing process and technology to adequately meet the customer needs for quality.
Our products are not only largely meet with the demand of domestic customers, but also widely exported the markets of North and South America, Southeast Asia, Middle-east, Latin America, Africa, and Europe with a very good reputation.
Some products have been approved by CE and IEC certificates.
As we hopefully steeping into the newest century, welcome new and old clients to make a good or Better business cooperation relationship.
