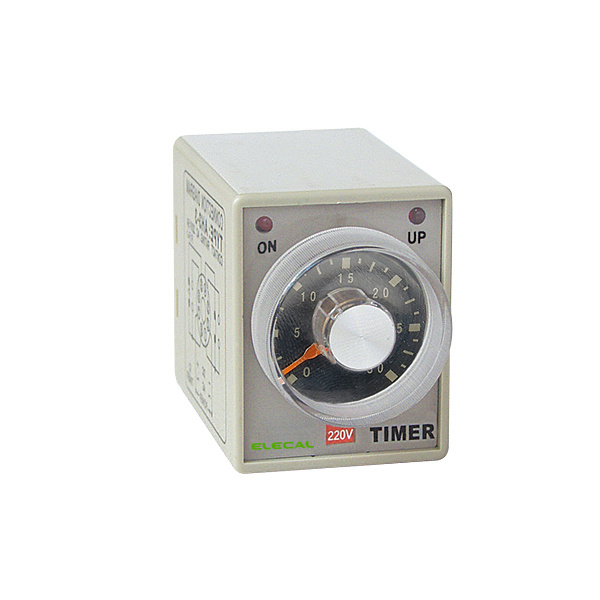

Time Relay of Multi Range Timer

Name: Time Relay of Multi Range Timer
Brand: china-manufacturer-directory.com
SKU: 765861055
Availability: InStock
Rating: 5 (67 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

1.Application
The series solid state overload relay is suitable for protection of phase-failurre and overload of AC motor of AC50/60Hz, rated voltage up to 690V, rated current up to 600A. The features are reliable, lower energy comsumption and broad adjusting current. The product confirms to IEC60947-4-1 standard.

Classification	Multi Range Timer	Multi Range Timer	Multi Range Timer
Specification Model	AH3-3			AH3-B			AH3-NB
Dimension	50H × 40W × 57.5D			50H × 40W × 57.5D			50H × 40W × 57.5D
Mounting & Socket	Surface(-N)	PF083A (E)			PF083A (E)			PF083A (E)
Flush(-Y)	US-08 P3G-08			US-08 P3G-08			US-08 P3G-08
Full Timing Range	SEC:1,3,6,10,12,30,60 MIN:3,6,10,12,30,60 HR:3,6,10,12,30			A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H			A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H
Rated Voltage (V)	AC: 24,110,220,240,380,50/60Hz DC: 12,24			AC: 24,110,220,240,380,50/60Hz DC: 12,24			AC: 24,110,220,240,380,50/60Hz DC: 12,24
Indicator Operating	ON-UP operating			ON-UP operating			Time operating flicker
O/P Contact	Model	AH3-1	AH3-2	AH3-3	AH3-1	AH3-2	AH3-3	Model A/B
Time Limit 1C	5A		5A			5A		5A
Time Limit 2C		5A		5A			5A
Instantaneous 1C			5A		5A	5A		5A
Life	Mechanical	5×106 Times			5×106 Times			5×106 Times
Electrical	105 Times			105 Times			105 Times
Accuracy	Repeat Error	±1% max			±1% max			±1% max
Setting Error	±10% max			±10% max			±10% max
Voltage Error	±1% max			±1% max			±1% max
Temp Error	±2% max			±2% max			±2% max
Reset Time	0.1 sec max			0.1 sec max			0.1 sec max
Consumed Power	3VAC			3VAC			3VAC
Ambient temperature	-10oC~+55oC			-10oC~+55oC			-10oC~+55oC
Ambient Huminity	48~85% RH			48~85% RH			48~85% RH
Weight	160g			160g			160g

Classification	Timer	Multi Range Timer	Multi Range Timer
Specification Model	ST2P	ST3PA		H3BA-8/H3BA-11
Dimension	50H × 40W × 57.5D	55H × 40.5W × 57.5D		48H × 48W × 93.5D
Mounting & Socket	Surface(-N)	PF083A(E)	PF-083A(E)		PF113A(E)		PF083A PS-08
Flush(-Y)	US-08 P3G-08	US-08 P3G-08		US-11		US-08 P3G-08
Full Timing Range	SEC: 1,3,6,10,12, 30,60 MIN: 3,6,10,12,30, 60 HR: 3,6,10,12,30	A: 0.05-0.5s/5s/30s/3min B: 0.1-10s/60s/6mim C: 0.5-5s/50s/5min/30min D: 1-10s/100s/100min/60min E: 5-60s/10s/60min/6h F: 0.25-2min/20min/2h/12h G: 0.5-4min/40min/4h/24h		0.1SEC~100HRS
Rated Voltage (V)	AC: 12,24,110,220(50/ 60Hz) DC: 12~24	AC: 24,48,110,220 (50/60Hz) DC: 24,48		24 to 240 DC/AC AC: 24,48,110,220 DC: 12,24,48
Indicator Operating	ON-UP Operating	ON-UP Operating		Time Operating Flicker
O/P Contact	Model	ST2P-E	ST3PA	ST3PC	H3BA	H3BA-8		H3BA-8H
Time Limit 1C	5A		5A				5A
Time Limit 2C	5A	5A		5A	5A
Instantaneous 1C	5A		5A				5A
Life	Mechanical	5 × 107 Times	5 × 107 Times		107 Times
Electrical	105 Times	105 Times		105 Times
Accuracy	Repeat Error	±2% max	±2% max		±2% max
Setting Error	±5% max	±5% max		±5% max
Voltage Error	±5% max	±5% max		±5% max
Temp Error	±2% max	±2% max		±2% max
Reset Time	0.5 sec max	0.5 sec max		0.5 sec max
Consumed Power	3VA	3VA		100~240VAC:10VA 12VDC,24~240VDC:1.5W
Ambient temperature	-10oC~+55oC	-10oC~+55oC		-10oC~+55oC
Ambient Huminity	35~85% RH	35~85% RH		35~85% RH
Weight	100g	100g		100g

Classification	Multi Range Timer	Multi Range Timer	Multi Range Timer
Specification Model	H3CR-A8	H3CA-A	H3CA-8
Dimension	48H × 48W × 81.6D	48H × 48W × 81.6D	48H × 48W × 81.6D
Mounting & Socket	Surface(-N)	PS-08 PF083A	PF113A(E)	PS-08 PF083A
Flush(-Y)	US-08 P3G-08	US-11	US-08 P3G-08
Full Timing Range	0.5SEC~300HRS	0.1SEC~9990HRS	0.1SEC~9990HRS
Rated Voltage (V)	AC: 24,110~240(50/60Hz) DC: 12,24~240(50/60Hz)	AC: 24~240(50/60Hz) DC: 24~240(50/60Hz)	AC: 24,110, 220 (50/60Hz) DC: 24,48(50/60Hz)
Indicator Operating	Time Operating Flicker	LCD	LCD
O/P Contact	Model	H3CR-A8	H3CA-A	H3CA-8
Time Limit 1C		5A
Time Limit 2C	5A(AC250)		5A
Instantaneous 1C
Life	Mechanical	107 Times	107 Times	107 Times
Electrical	105 Times	105 Times	105 Times
Accuracy	Repeat Error	±2% max	±2% max	±2% max
Setting Error	±5% max	±5% max	±5% max
Voltage Error	±5% max	±5% max	±5% max
Temp Error	±2% max	±2% max	±2% max
Reset Time	0.5 sec max	0.5 sec max	0.5 sec max
Consumed Power	100~240VAC:10VA 12VDC,24~240VDC:1.5W	100~240VAC:10VA 12VDC,24~240VDC:1.5W	100~240VAC:10VA 12VDC,24~240VDC:1.5W
Ambient temperature	-10oC~+55oC	-10oC~+55oC	-10oC~+55oC
Ambient Huminity	35~85% RH	35~85% RH	35~85% RH
Weight	100g	100g	100g
