Specification| Model | Panel
size | Operating mode | Setting&display mode | Output contact | Input signal control | Installation mode | Delay range |
| CAS4-S60HT20 | 55*87mm | on-delay | dial switch
with digital display | 1C time delay, 1C instantaneous
or 2C delay(option) | / | panel type, device type,
35mm guide rail type | 0.01s-990h |
| CAS4-S60HT30 | 0.01s-9990h |
| CAS4-S60HT40 | 0.01s-99990h |
| Rated supply voltage | AC380V, 220V, 110V, 36V, 24V 50Hz; DC24V |
| Operating voltage fluctuation range | 85%~110% |
| Contact capacity | 3A AC220V(Resistive) |
| Ambient temperature | -5ºC~40ºC(no ice) |
| Ambient humidity | If the ambient temperature is 40ºC,the RH≤50%.
It allows higher relative humidity in a lower temperature.
For example,when the ambient temperature is 20ºC, the RH≤90%.
Special measure is needed for occasional condensation
produced by temperature changes |
| Altitude | ≤2000m |

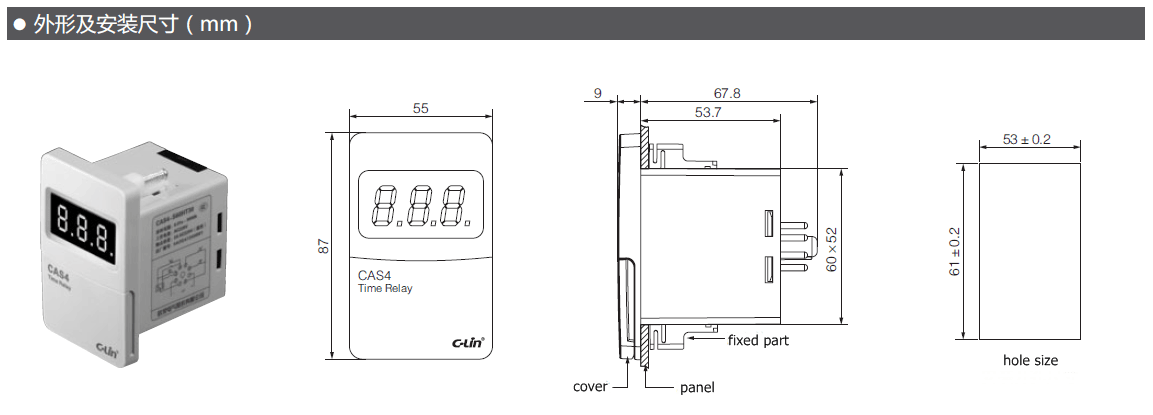

Outline Dimension

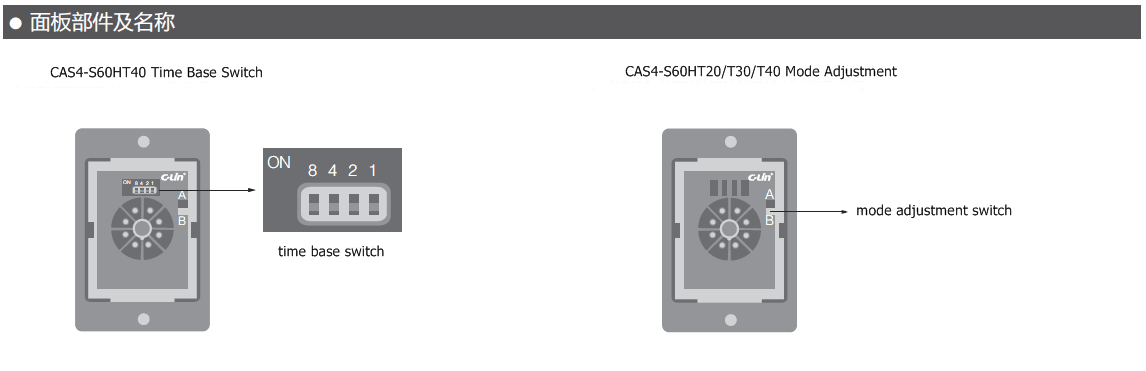

Panel Description

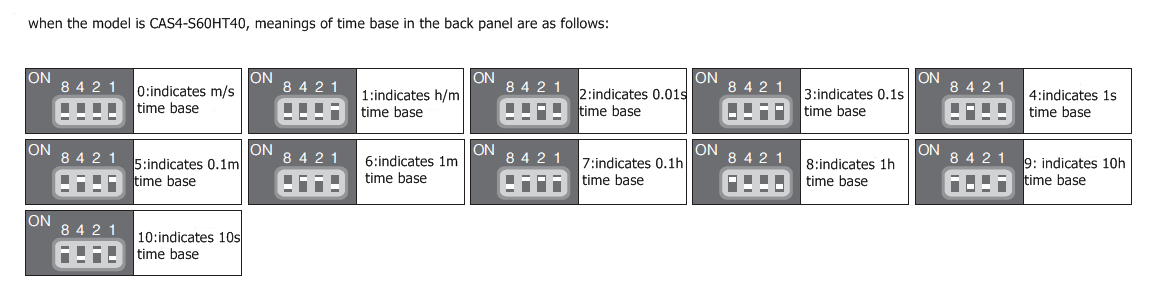

For example:when the dial number is set as 123, meanings of each time base are as follows:
0.01s:1.23s; 0.1s:12.3s; s:123s; 0.1m:12.3m; m:123m; 0.1h:12.3h; h:123h; 10h:1230h; h/m:1h23m; m/s:1m23s
Note:Please choose the specific model(e.g.:CAS4-S60HT20) when enquiry so that we can quote for you immediately.
