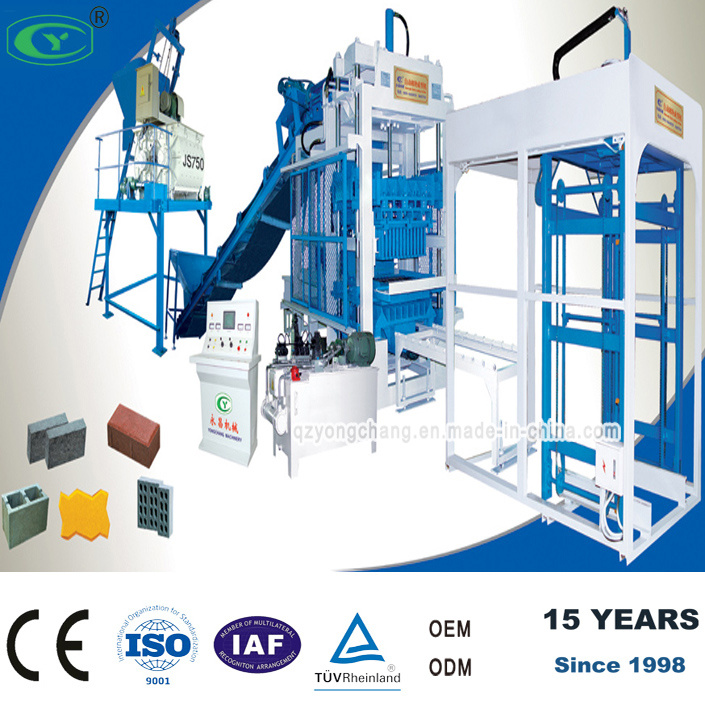

Top-level Blcok Making Machine QT10
Technical parameters of brick making machine:
CE, ISO9001, TUV certified Automatic brick machine
Siemens or Panasonic Control SysteM
Exciting Force: 100 KN
Total Power: 56 KW
Frame Dimimension: 13550X2950X2600 mm
Pallet Size: 1220X900X25 mm
Forming cycle: 15-20 Seconds
Vibration Frequency: 4000-5600 Rolls/minute (adjustable)
Molding Method: Automatic charging, vibrating and pressing
Control Mode: Full automatic PLC control
Raw Materials: Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products: Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields: Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.
Main features:
1. Mature technology. We are the professional manufacturer for Automatic Brick Machine since1998
2. The highest stability, the lowest fault rate. Our factory pursue the stability during the block's production, we test and adjust the machine many times before shipping out of our workshop.
3. Import the Germany Frequency Conversional Control. Adopt the Siemens PLC Control system. Using the frequency conversional control to protect the electric machinery.
4. Break arch feeding device, uniform feed. Creative shake absorbsion and noise cancellation.
5. All-in-one multifunctional machine with cost saving perfomance.
----------------------------------
Tel: 0086-595-86650578
Mobile Phone: 0086-15359309818 (24hours)
Fax: 86-595-86657765
Address: Caobu Industrial Zone, Kanmei Town, Nan' An, QuanZhou City, Fujian Province, China.
|
Production Capacity of Top-level Blcok Making Mchine QT10 |
|
Items |
Size(LxWxH) |
Pcs. /mould |
Pcs. /hour |
Pcs. /8hour |
|
Hollow Block |
400x200x200 |
4 |
576 |
4, 608 |
|
Porous Bricks |
240x115x90 |
12 |
1, 728 |
13, 824 |
|
Dimension Bricks |
240x115x53 |
24 |
3, 456 |
27, 648 |
|
HollandBlock |
200x100x60 |
14 |
2, 016 |
29, 952 |
|
Note: The forming cycle is 15-20 seconds per pallet, above capacity we counted by average 20 seconds per pallet. the production capacity is affected by material, brick size and other factors. |
Production Capacity of concrete block making machine
|
|
Model |
Product |
Size (mm) |
Pcs/Mould |
Pcs/Hours |
|
QT6 Machine |
Hollow block |
390x190x190 |
6 |
1440 |
|
Porous brick |
240x115x90 |
15 |
3600 |
|
Standard brick |
240x115x53 |
30 |
7200 |
|
Standard brick |
240x115x50 |
32 |
7680 |
|
Holland block |
200x100x60 |
21 |
5040 |
|
Paving stone |
200x100x60/80/100 |
24 |
5760 |
|
Colored Paving brick |
225x112.5x D |
15 |
3600 |
|
QT8 Machine |
Hollow block |
390x190x190 |
8 |
1920 |
|
Porous brick |
240x115x90 |
18 |
4320 |
|
Standard brick |
240x115x53 |
39 |
9360 |
|
Standard brick |
240x115x50 |
42 |
10080 |
|
Holland block |
200x100x60 |
24 |
5760 |
|
Paving stone |
200x100x60/80/100 |
32 |
7680 |
|
Colored Paving brick |
225x112.5x D |
21 |
5040 |
QT10 Machine |
Hollow block |
390x190x190 |
10 |
2400 |
|
Porous brick |
240x115x90 |
27 |
6480 |
|
Standard brick |
240x115x53 |
59 |
14160 |
|
Standard brick |
240x115x50 |
69 |
16560 |
|
Holland block |
200x100x60 |
40 |
9600 |
|
Paving stone |
200x100x60/80/100 |
44 |
10560 |
|
Colored paving brick |
225x112.5x D |
28 |
6720 |
|
Note: Brick size could be customized. The production capacity is affected by material, brick size and other factors. Machine could be customized, we have also QT4 Machine, QT12 Machine, QT1500, QET3000 etc, the relevant data is available upon your request. |
Yongchang factory is one of the largest professional machinery manufacturing enterprise engaged in manufacture brick making machine for concrete, fly ash, coal gangue, recycling waste and cement. We are specialized in producing concrete block making machine, brick making machine, paver making machine, light weigh wall panel machine, concrete mixing plant and asphalt mixing plant etc.
The main features of YongChang Machine:
1. Mature technology. We are the professional manufacturer for block making machine, brick making machine and paver making machine since 1 9 9 8.
2. The highest stability, the lowest fault rate. Our factory pursue the stability during the block' S production, we test and adjust the machine many times before shipping out of our workshop.
3. Import the Germany Frequency Conversional Control, Adopt the Panasonic PLC Control system. The frequency conversional control to protect the electric machinery.
4. Break arch feeding device, uniform feed. Creative shock absorption, noise elimination.
5. All-in-one multifunctional machine with cost saving performance.
"To be credible, let the manufacturer make benefits, for the builder to lower the price, the user enjoy more safety " is our principle of management. Our company carries on the production control according to the I S O 9 0 0 1 quality management system completely, producing the high quality and stablity machine which passed CE certificate, GMC certificate by TUV, we enjoy good reputation from world-wide users by the best after-sales service and tracking quality' S service, we warmly welcome new and old customers to come to vist our factory.
