Price: | US $ 30000-70000/Set |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Set |
Pay Type: | L/C,T/T |
Prod Model: | psb-dz200~600 |
---|---|
Markets: | South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Plastic Type: | Expandable Polystyrene (EPS) |
Machine Type: | EPS Machine for Block |
Cooling Type: | Vacuum Cooling |
Warranty: | 1year |
Automation: | Automatic |
Certification: | SGS |
Main Features:
1,Strong Structure:
Machine is made of high-strength square tubes and thick steel plates.
Machine's all six panels are through heat treatment to release welding stress, so that panels cannot deform under high temperature.
After heat treatment, all panels are processed by sand blasting treatment t remove rust, then first painting and final painting is done to keep machine anti-corrosion.
2,Steam System:
Use three ball valves to control steam, saving 20% steam comparing to traditional one main valve system.
Steaming is controlled by Timer and three Germen electrical gauge switches, with a safty valve to save from gauge malfuncton situation.
3,Control System:
Machine with PLC and touch screen for easy operation.

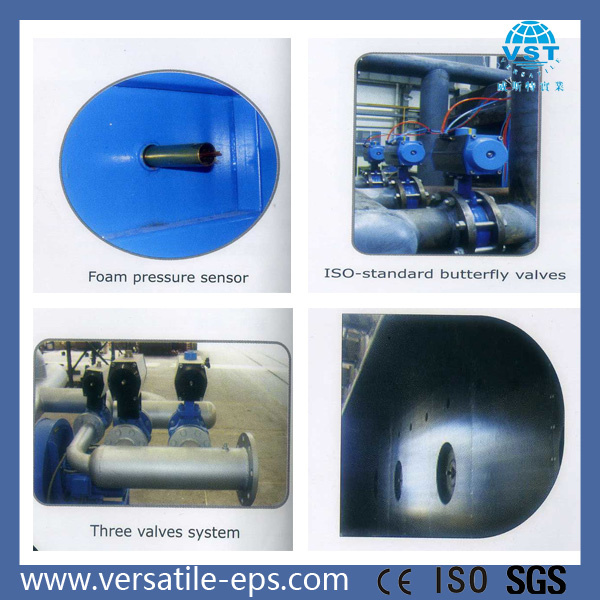

Details of machine

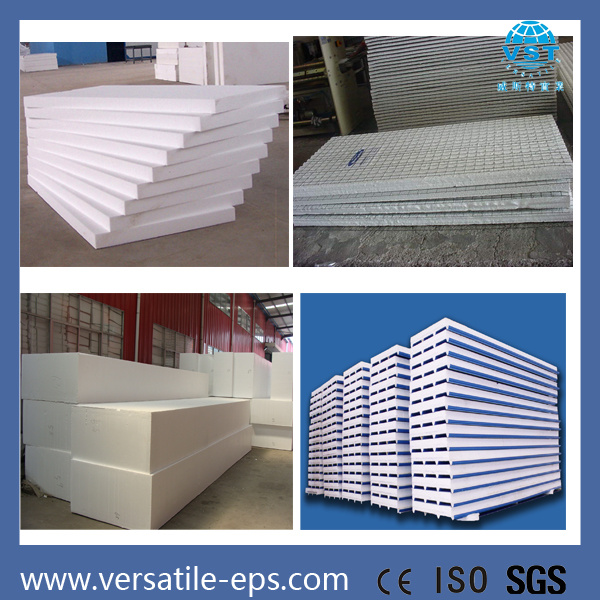

Some products of machine for reference
Technical Data: |
Item | PSB-DZ200 | PSB-DZ300 | PSB-DZ400 | PSB-DZ600 | |
Mould cavity size | 2040*1240*1030(mm) | 3060*1240*1030(mm) | 4080*1240*1030(mm) | 6100*1240*1030(mm) | |
Block size | 2000*1200*1000(mm) | 3000*1200*1000(mm) | 4000*1200*1000(mm) | 6000*1200*1000(mm) | |
Steam | entry | DN80 | DN80 | DN150 | DN150 |
consumption | 30-50kg/cycle | 50-70kg/cycle | 60-90kg/cycle | 100-130kg/cycle | |
pressure | 0.8Mpa | 0.8Mpa | 0.8Mpa | 0.8Mpa | |
Compressed Air | entry | DN40 | DN40 | DN40 | DN40 |
consumption | 1.5-2 m 3 /cycle | 1.8-2.2 m 3 /cycle | 2-2.5 m 3 /cycle | 2-3 m 3 /cycle | |
pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | |
Cooling water | entry | DN40 | DN40 | DN40 | DN40 |
consumption | 0.2-0.4 m 3 /cycle | 0.4-0.6 m 3 /cycle | 0.6-0.8 m 3 /cycle | 0.8-1 m 3 /cycle | |
pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | |
Drainage | vacuum drain | Φ125mm | Φ125mm | Φ125mm | Φ125mm |
steam vent | Φ100mm | Φ100mm | Φ200mm | Φ200mm | |
condensate | Φ100mm | Φ100mm | Φ100mm | Φ100mm | |
Blower outlet | Φ125mm | Φ125mm | Φ150mm | Φ150mm | |
Throughput | 15kg/m 3 | 5min/cycle | 6min/cycle | 7min/cycle | 8min/cycle |
Power | 20.5-24.5kw | 20.5-24.5kw | 24.5-35.5kw | 24.5-35.5kw | |
Overall dimension | L*W*H | 5700*4000*2850(mm) | 7200*4500*3000(mm) | 11000*4500*3000(mm) | 2600*3960*2906(mm) |
Weight | 6000kg | 7200kg | 12000kg | 15000kg | |
Room height required | 6000mm | 6000mm | 6000mm | 6000mm |
