Price: | US $ 9310/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T |
Prod Model: | HVT-1000 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

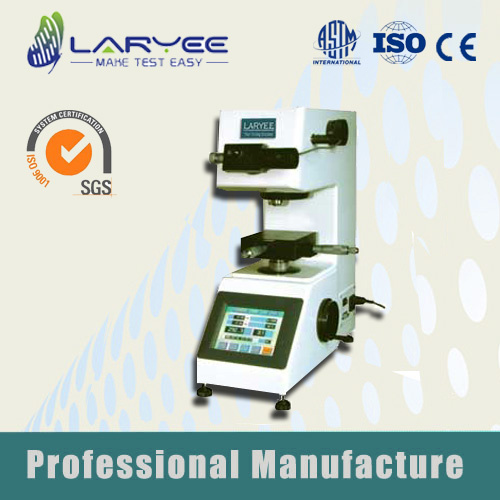

Function: | Touch Screen LCD Micro Hardness Tester |
Test Load: | 0.098n (10gf)-9.80n (1000gf) |
Leus/Indenter Switch: | Motorized Turret |
Carriage Control: | Automatic Loading and Unloading Method |
Measuring Range: | HV |
Application: | Metal |
Standard: | ASTM |
Type: | Micro Hardness Tester |
Description | HVM-1000/HVT-1000 | HVM-2000 | |
Test load | 0.098N (10gf), 0.246N (25gf), 0.49N (50gf), 0.98N (100gf), 1.96N (200gf), 2.94N (300gf), 4.90N (500gf), 9.80N (1000gf) | 0.098N (10gf), 0.246N (25gf), 0.49N (50gf), 0.98N (100gf), 1.96N (200gf), 2.94N (300gf), 4.90N (500gf), 9.80N (1000gf) 19.6N (2000gf) | |
Leus/indenter switch | With Motorized Turret | Automatically turning turret | |
Carriage control | Automatic loading and unloading method | ||
Magnification of microscope | For measurement: 400X (Object lens 40 x, eyepiece 10 x ) | ||
For observation: 200X (object lens 20 x, eyepiece 10 x ) | |||
Load holding time | 5-60 second | ||
Measuring microscope | Min measuring unit: 0.0625um | ||
Testing field | 1-2967HV | ||
Micro test table | Dimensions 100x100mm | ||
Movement | 25mmin X& Y axis | ||
Max. height of specimen | 70mm | ||
Max. depth of specimen | 95mm | ||
Out put | Installed with innner-printer and RS232 interface | ||
Power Supply | AC110V/220V 60/50HZ | ||
Dimensions | (L ) 425 X (W) 245X (H)490mm | ||
Weight | Gross Weight: : 42KG, Net Weight: 35KG | ||
| Vickers Indenter, Objective (20X, 40X), Digital Micro lens (10X), XY-stage test table, Thin specimen test holder, Fork-shaped test holder, Fine wire test holder, Adjustable screw, , Lever, Micro Vickers hardness block, RS232 line |
