Product Specifications
| Prod Model: |
H32 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East |
| Use Type: |
GPS Surveying Instruments |
| Satellite Signals: |
GPS Glonass |
| Replaceble Module: |
UHF/PCC/3G |
| Static Accuracy Horizontal: |
2.5mm+0.5ppm RMS |
| Static Accuracy Vertical: |
5mm+0.5ppm RMS |
| Channel: |
72 Channels |
| Dimensions: |
16.5cm*10.5cm |
| Automated Operation: |
One Button Make Rover Operation |
| Weight: |
1.75kg |
| Water/Dustproof: |
IP67 |
Product Description

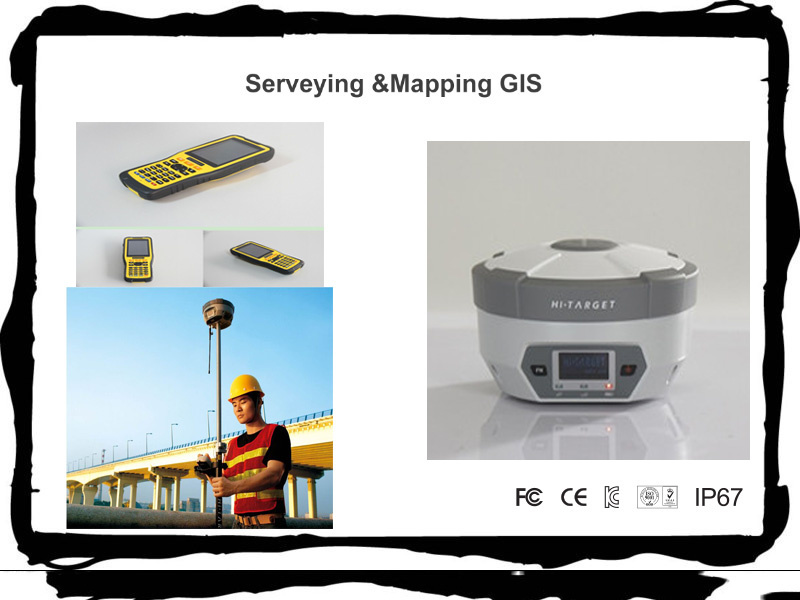

Touch Screen Multi-language Optional GPS Surveying Instruments
Originated from HI-TARGET's sophisticated GNSS technology, the H32 is a very competitive GNSS RTK system on the current market with its rugged design and affordable price.
The H32's housing is made of General Electric Xenoy 5220U polymer resin to handle severe and harsh filed conditions. With its unique internal design, it can perfectly avoid or lessen obstruction and multipath effect to ensure superior positioning capability.
The H32's front control panel with super bright OLED display screen (Resolution 128x64) makes the work more intuitive. No matter it is in the dark or strong sunshine, the screen is comfortably readable to eyes.
What's the advantage of our GPS Surveying Instruments?
Multi Constellation Tracking
72 channels. The H32 is fully compatible with GNSS constellations to track GLONASS, GALILEO, SBAS as well as GPS.
All-in-one Transceiver UHF Radio
The transceiver UHF radio enables the H32's working mode to be switchable between base and rover in the same receiver. The H32 provides excellent performance in UHF RTK operation with its built-in transceiver UHF radio, which has adjustable transmitting power from o.1 Watt to 2 Watts.
Seamlessly Operation in CORS System
With internal GPRS modem, the H32 works perfectly with corrections from CORS networks in any version of CMR, RTCM without needing to interpret the message but reading seamlessly.
Powerful Battery
Powered by 5000mAh Li-Ion battery.
Static working time 13 - 15 hours
RTK Rover (UHF/GPRS) working time 10 - 12 hours
RTK Base working time 8 - 10 hours
Rugged design, IP67
The special latching technology on flexible flat cables ensures trouble-free operation under impact or vibration. The H32 withstands 2 meters natural fall onto concrete.
Field Controller and Software
There are optional field controllers and software in the H32 package. The controllers with OS Microsoft Windows Mobile 6.5 are fully compatible with the third party software such as Carlson SurvCE, MicroSurvey FieldGenius, Digiterra Explorer, Esri ArcPad etc. besides standard field&GIS software made by HI-TARGET. HI-TARGET controller with WiFi, Bluetooth, and GPRS/3G is completely wireless to connect to any device, collect data and connect to server simultaneously and seamlessly.
Post-processing Software
HI-TARGET Geomatics Office (HGO) software provides total GNSS solution with a complete suite of programs to support HI-TARGET GNSS receivers. Standard Rinex data and HI-TARGET raw data can be processed flexibly and easily.
