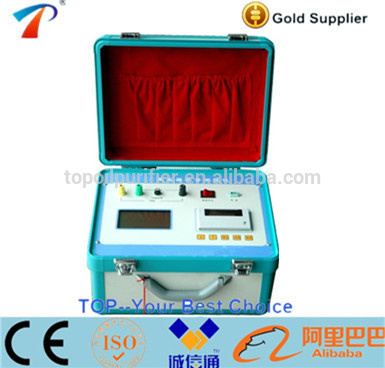

Transformer load current, load loss, short-circuit voltage, short circuit (load) losses measure Instrument (TOFT)
Product Description:
Small size and portable
| Application | Measure the transformer load current, load loss, short-circuit voltage, short circuit (load) losses. |
Test Item |
RMS phase voltage
Average value of three-phase AC voltage
Three-phase current RMS
Percentage of no-load loss and no-load current:
Load loss, impedance voltage, and the percentage of short-circuit impedance:
Any given temperature, load loss, the percentage impedance voltage and short circuit impedance;
Voltage waveform in the percentage of each harmonic component
Current waveform in the percentage of each harmonic component; |
Technical
Parameter |
Current measurement range: 100mA ~ 5A, accuracy class 0.2;
Voltage Range: 10V ~ 650V, accuracy class 0.2;
External transformer can broaden the scope of measurement instruments;
Frequency Range: 40 ~ 65Hz, accuracy class 0.2;
Power Input: AC220V ± 10%
Weight and size: 14KG; 490*385*360mm |
Trustable technical and after sale service
1. Long-term warranty of 2 years.
2. Provide best necessary spare parts at low price (some for free).
3. Provide timely reply and technical support within 24 hours.
4. OEM is available for TOP Products.
5. Protect your sales area, ideas of design and all your private information.
