Product Specifications
Prod Model: |
KS-258B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency: |
433MHz |
Certificate: |
CE, CCC, ISO |
Name: |
Transparent Security Box Burglar Alarm System Supp |
Type: |
Home Alarm |
Application: |
Indoor |
Signal Transmission: |
Wireless Alarm |
Working Mode: |
Active |
Sensor Type: |
Infrared Alarm System |
Working Principle: |
Electro-Optical Type |
Usage: |
Smoke |
Product Description

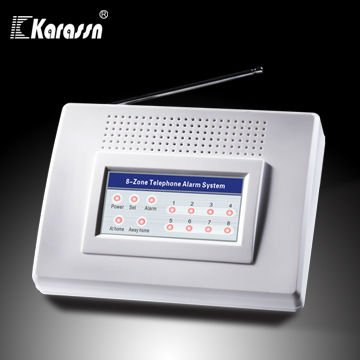

Transparent Security Box Burglar Alarm System Supplier China
KS-258B
Support different language based on your requirements:
English, Portuguese, Spanish, Russian, Arabic, Italy, French etc.
1. Product Summary
This system adopts microprocessor as control core, and it can work with wireless remote controllers and all kinds of wireless PIR detectors. It is characteristic with many functions, such as anti-theft, anti-rob, anti-fire, emergency ask for help and so on. It reports alarm message to the users and network manage center by dialing preset telephone numbers when alarming. It also can be armed/disarmed remotely. And wireless siren can be linkage to make alarm sound when alarming.
2. Main Features
* Compatible with ADEMCO CONTACT ID networking form.
* 24 wireless detectors and 8 remote controllers can be learned, and it learns code Automatically and wirelessly.
* At home mode and away home mode are optional, and the zone type is modifiable.
* It stands for wireless siren.
* Remotely Operation: It can be armed/ disarmed remotely by entering code through Fix telephone or mobile phone.
* It indicates by sound and light when power lower of main unit or detector, and Dials preset telephone numbers at the same time.
* It rushes to inform you the alarm message by cutting your speaking on the telephone, And then recovers automatically.
* 8 groups of telephone numbers can be set, and the type of each group is modifiable.
* 4 levels of alarm volume are adjustable, and it also can be set to be mute.
* When networking, the message of main unit (such as arm/disarm, power lower and So on) can be reported to alarm center.
* Usually, the backup battery charges automatically, and it automatically switchesBetween AC and battery power.
* The alarm information can be recorded and can' be deleted until confirmed.
* Delay arm time, delay alarm time are modifiable.
* It will indicate when telephone line cut-off or open circuit
* All the settings are stored and won' lose even if power down
3. Application
It is very suitable to be widely used in family, shop and so on.
4. Technologic Parameter
5. standard package:

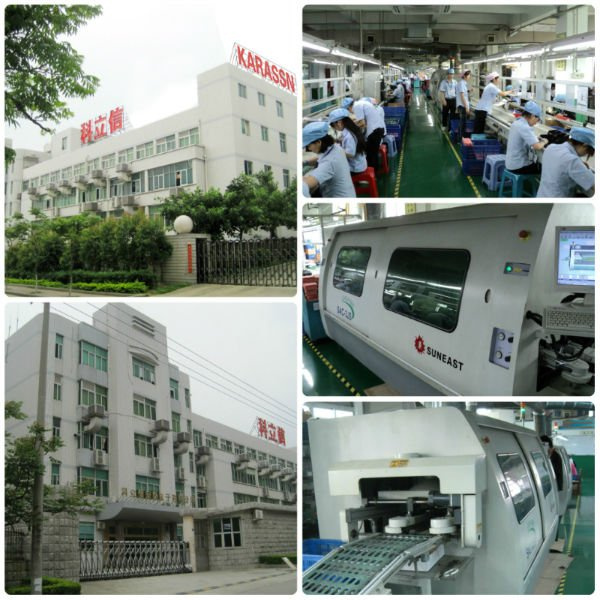

6. factory show:
7. certificate:
Model |
KS-258B |
Brand |
KARASSN |
Working Voltage |
AC 220V ±15% 50Hz |
Standby Current |
≤26mA |
Alarm Current |
≤350mA |
Standby Time |
≥24 hours |
Working Environment |
-10 degree~55 degree |
Relative Humidity |
40-70% |
Wireless Receive Frequency |
433.92MHz |
Alarm Loudness |
≥80dB within 1 meter |
Size |
185*135*46 (mm) L*W*H |

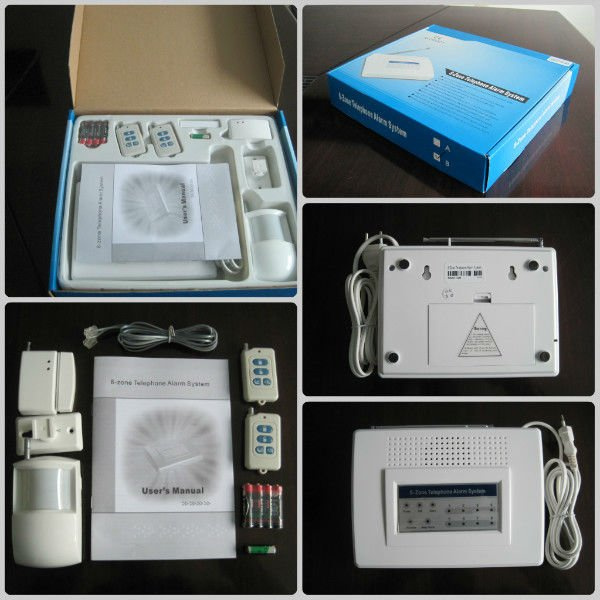

5. Standard Package
Standard Packaging |
Quantities |
Main panel |
1pc |
Wireless remote controller |
2pcs |
Wireless PIR detector |
1pc |
Wireless door sensor |
1pc |
Color-cardboard box |
1pc |
6. Optional Package
Wireless
Accessories |
PIR Detector |
KS-307DCT Wireless PIR Detector |
KS-307WT Wireless PIR Detector (inner-antenna) |
KS-306FCT Wireless Curtain PIR Detector |
KS-308XCT Wireless Ceiling PIR Detector |
Door Sensor |
KS-21AW Wireless Door Sensor |
Remote Controller |
KS-13B Wireless Remote Controller |
KS-13E Wireless Remote Controller |
KS-15A Wireless Remote Controller (inner antenna) |
KS-12B Wireless Remote Controller |
Keypad |
KS-31A Wireless Keypad |
Repeater |
KS-55B Wireless Outdoor Repeater
(longer distance PIR to unit) |
Panic Button |
KS-11D Panic Button |
Smoke Sensor |
SS-168 Smoke Sensor |
Gas Sensor |
MT-338A Gas Sensor |
Siren |
KS-70A Wireless Outdoor Siren |
|
KS-70B Wireless Indoor Siren |
