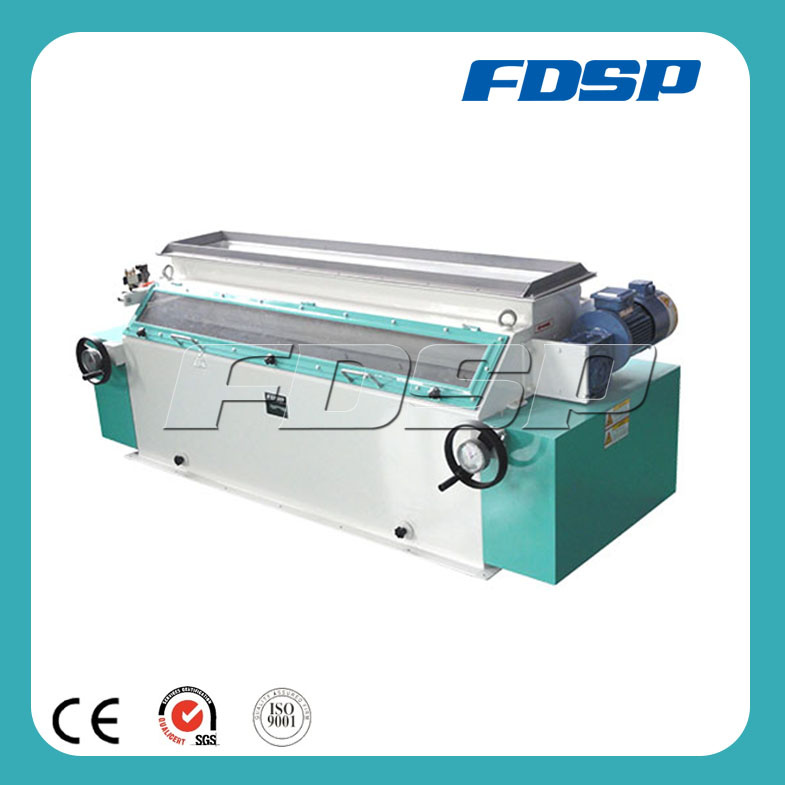

SSLG Series Triple-roller Crumbler
Features
1. It is special purpose equipment to crumble big pellets into small pellets;
2. Compact structure, evenly size, convenient and quickness adjustment. The feeding roll is available to make the feeding more smooth. The fineness of finished products is even and crumbled products obtainng rate is improved;
3. Rolls perform differential rotational speed. Pellets are pressed, sheared and torn, thus reaching ideal crumbling effect;
4. Unique feeding hopper and bypass device not only serve to distribute the products, but also serve to bypass the products not requiring crumbling. When bypassing, automatic stoppage is realized through limit switch;
5. V belt driving is adopted, stable, low noise, reliable and convenient operation.
Model Parameters | SSLG20 × 80 × 3 | SSLG20 × 110 × 3 | SSLG20 × 140 × 3 | SSLG20 × 170 × 3 |
Output (t/h) | 5-8 | 5-10 | 8-12 | 12-20 |
Power(kw) | 5.5+1.1 | 7.5+1.1 | 11+1.1 | 15+1.1 |
Main Process of the Animal Feed Production Line Hammer Mill - Mixer - Pellet Mill - Cooler- Crumbler - Rotary Screener - Bagging Scale - Control Center
Grinding: Grind the raw materials into required size for further processing in
poultry feed production.Related machine: Hammer Mill
1) Feed hammer mill adopts best improve the production efficiency and make
the high delicious poultry feed pellets. After grinding, the diameter of the final
products could be the optimal size for pelleting.2) Both coarse and fine grinding are realized through adjusting the gap
between beater and screen.
Technical Parameters of the SFSP Series Circle Hammer millModel | Power(kw) | Capacity(t/h) | Speed of Rotor(rpm) |
SFSP568 | 22/30/37 | 2-6 | 2940 |
SFSP668 | 37-250 | 4-50 | 2970 |
SFSP998 | 55-250 | 6-50 | 1480 |
SFSP999 | 90-200 | 15-50 | 1380 |
Mixing: evenly blend various kinds of raw material powder into uniform diet
Related machine: Poultry feed mixer
Double-shaft efficient mixing machine is widely employed in blending
powdery materials in poultry feed industry to ensure compound poultry feed
quality.
1) High mixing speed
2) Short mixing cycle
3)High homogeneous
Technical Parameters of the Double-shaft mixing machineModel | Effective Volume ( m³) | Capacity (kg/batch) | Mixing Time (s) | Homogeneity (CV≤%) | Power (kw) |
SHSJ0.5 | 0.5 | 250 | 30-120 Time can be properly extended according to different materials | 5 | 7.5 |
SHSJ1 | 1 | 500 | 5 | 11/15 |
SHSJ2 | 2 | 1000 | 5 | 18.5 |
SHSJ3 | 3 | 1500 | 5 | 22 |
SHSJ4 | 4 | 2000 | 5 | 30 |
SHSJ6 | 6 | 3000 | 5 | 37 |
SHSJ8 | 8 | 4000 | 5 | 45 |
Feed Pelletizing Process
forcing materials through holes in ring die to form compacted feed pellets which are then cut into a pre-determined size
Related machine: Poultry Feed Pellet Mill
The feed pellets produced by this poultry feed mill have rich nutrition, good palatability and high digestibility.
1)Low consumption, competitive price, long service life.
2)Driven by electric motor makes it more convenient and environmentally friendly
3)To make poultry feed pellets with different diameters, you just need to replace a
pellet mill die.
Technical Parameters of the pellet mill we supply Model | Capacity(t/h) | Power(kw) | Inner diameter of Die(mm) |
SZLH32 | 2-5 | 37/45 | 320 |
SZLH350 | 3-7 | 55 | 350 |
SZLH400 | 3-10 | 75/90 | 400 |
SZLH420 | 3-14 | 90/110 | 420 |
SZLH508 | 6-15 | 160 | 508 |
SZLH678 | 11-32/11-36/11-40 | 220/250/280 | 678 |
Our service:Package Delivery:All our exported equipments are all firstly wrapped by the stretch film in case of scraping and then fixed in the iron pallet in case of shaking heavily in the container. Customers visiting:FDSP has exported Feed machinery to 30 countries including Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc.Welcome customers from all around the world visiting. Certifications:Our products have passed CE certification, SGS certification and ISO9001 certification. With our professional experienced technical team, we have lots of experience in overseas projects, and earned many certifications and patent design.
