SUMMARIZE

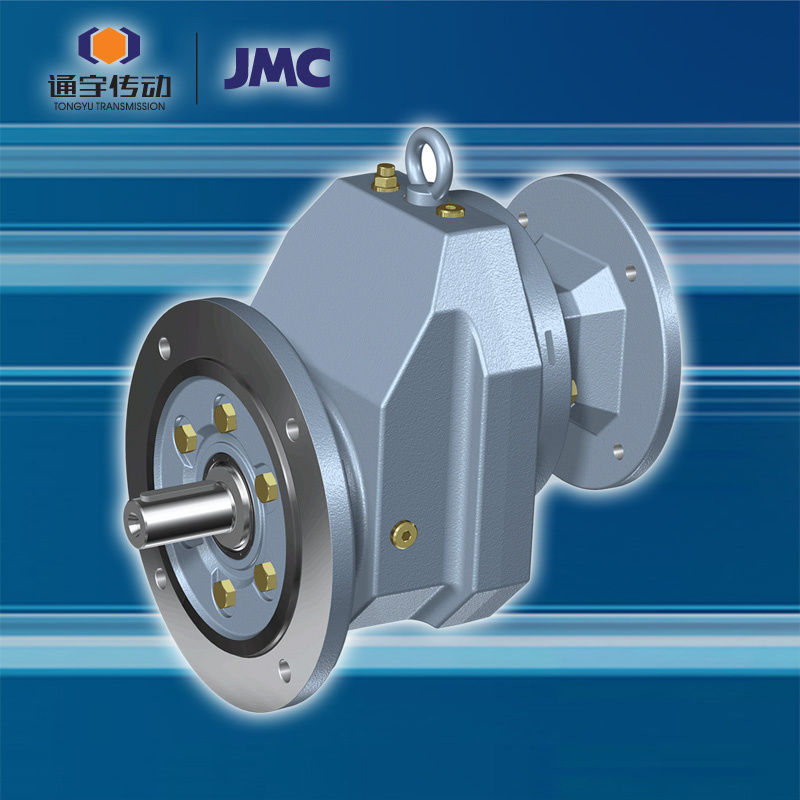

TR Series helical gearmotor is a new generation mechanic-electrical integrated product, which designed basing on the modular system. It can be connected respectively with motors such as normal motor, brake motor, explosion-proof motor, frequency conversion motor, servo motor, IEC motor and so on. It can be mounted discretionary six orientation in solid space. This kind of product is widely used in drive fields such as textile, foodstuff, beverage, chemical industry, automatic arm ladder, automatic storage equipment, metallurgy, tobacco, environment-protection, logistics and so on.
PERFORMANCE CHARACTERISTICS
1. Transmission ratio with fine stage covers a wide range;
2. Compact structure takes up small room;
3. Low vibration; Low noise; Low energy dissipation;
4. Refined design; Reliable and wearable; Wide usage;
5. Modular, multistructure, can be combined in many forms to meet needs of all kinds of transmission conditions.
6. Service power range: 0.12-160kW.
7. Max. Output torque: 18000Nm.
8. Ratio range: 1.3~27001.
9. The efficiency for one stages is 98%.
The helical gear which use the material of high quality alloy steel with the surface hardened takes shape through processing of high-precision equipment. Except the TR...28 housing with aluminum alloy, all are cast iron housing. Housing is exactly processed to ensure the shape and position precision. And it reaches advantageous performance such as: Strong bearing capacity, long service-life; Small volume; Big ratio; Light weight, high efficiency, low noise.
TongYu Transmission, a manufacturer of variable speed machinery with advanced technology, is a tower of strength in the field of technique renovation. On design, TongYu adopts the three-dimensioned modeling and the finite element analysis, which has shortened the research circle of products and guaranteed the reliability of the quality, can provide the transmission resolvable projects with special requirements for the customers much better. On production, having established the producing-studying-researching cooperation with a legion of High Schools, TongYu aims to explore and push the new process technics. At present, TongYu has owned more than 300 sets equipment for process and detection, including a group of world top machinery equipment as REISHAUER. The company always promotes the quality improvement endlessly and pursues the target that the customers are satisfied with. It does upmost to meet or exceed the customers' expectation continually and manufactures the high quality products. In addition, TongYu locates in TaiZhou, China, a city which is famous for the developed manufacturing. With its fertile material supply chains and modern logistic soil the company has the capacity of offering the high-powered speed reducer at the same price level for the worldwide users.
Each performance of TNRV series the worm-gear reducers, planet cone-disk stepless reducers and the G3 series helical gear reducers has reached the advanced technique index of the congeneric European and Japanese products. TongYu mainly focus on exporting, and now the products have been sold to more than 40 countries and areas, which are as far as Europe, America, Middle East, Africa and Australia. Customers are coming in a continuous stream and the company is also expanding rapidly. Looking forward to the future, TongYu will insist on the ceaseless innovation and persistent enterprising so as to continually satisfy the worldwide users' high requirements on product performance and join the new world tide of the technique development in the reducer industry aspiringly. TongYu believe firmly that the final double-win target will be reached between the users and manufacturer.
