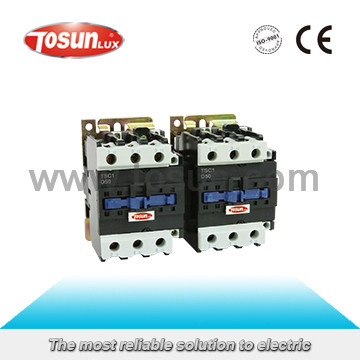

Tsc2 Series Mechanical Interlocked Contactor

Name: Tsc2 Series Mechanical Interlocked Contactor
Brand: china-manufacturer-directory.com
SKU: 752550795
Availability: InStock
Rating: 4.9 (95 reviews)

Price:	US $ 51-400/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	TSC2 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electrical Type:	AC
Theory:	Voltage Relay
Size:	Miniature
Usage:	Household Appliances Relay, Communication Relay

Product Description

Specification:

Type	Rated current AC-3(A)	Controlled power(KW)
Type	Rated current AC-3(A)	220V	380V	415V	440V	660V
TSC2-D09	9	2.2	4	4	4	5.5
TSC2-D12	12	5.5	5.5	5.5	5.5	7.5
TSC2-D18	18	7.5	7.5	9	9	10
TSC2-D25	25	5.5	11	11	11	15
TSC2-D32	32	7.5	15	15	15	18.5
TSC2-D40	40	18.5	18.5	22	22	30
TSC2-D50	50	15	22	25	30	33
TSC2-D63	63	18.5	30	37	37	37
TSC2-D80	80	22	37	45	45	45
TSC2-D95	95	22	45	45	45	41
TSC2-D115	115	30	55	59	59	80
TSC2-D150	150	40	75	80	80	100
TSC2-D170	170	55	90	100	100	110
TSC2-D205	205	63	110	110	110	129
TSC2-D245	245	75	132	132	132	160
TSC2-D300	300	100	160	200	200	220
TSC2-D410	410	110	220	250	250	280
TSC2-D475	475	148	265	280	280	355
TSC2-D620	620	200	335	400	400	450

Model	Number of Poles	Rated Current AC-3(A)	Rated Current In/A	Controlled Power(KW)
Model	Number of Poles	Rated Current AC-3(A)	Rated Current In/A	220V	380V
TSC2-F115	3P	115	250	200	55
TSC2-F1154	4P	115	250	200	55
TSC2-F150	3P	150	355	250	75
TSC2-F1504	4P	150	355	250	75
TSC2-F185	3P	185	425	275	90
TSC2-F1854	4P	185	425	275	90
TSC2-F225	3P	225	500	315	110
TSC2-F2254	4P	225	500	315	110
TSC2-F265	3P	265	630	350	132
TSC2-F2654	4P	265	630	350	132
TSC2-F330	3P	330	800	400	160
TSC2-F3304	4P	330	800	400	160
TSC2-F400	3P	400	800	500	200
TSC2-F4004	4P	400	800	500	200
TSC2-F500	3P	500	1000	700	250
TSC2-F5004	4P	500	1000	700	250
TSC2-F630	3P	630	1250	1000	335
TSC2-F6304	4P	630	1250	1000	335
TSC2-F800	3P	800	1250	1000	400

Features:
1. High reliability: non-ablation coil.
2. Long life, safe and reliable.
3. Low power consumption.
4. No noise.
5. Insulating materials are used to protect and insulate the contacts

Why Us?

1. Clients' benefit first.
2. Experinced in the line for more than 24 years.
3. Reasonable price and good source of raw material.
4. A group of professional inspectors monitor quality.
5. TUV, SEMKO, CE, CB, ROHS Approval for products.
6. Unique design for packing.
7. Experienced salesmen offer one-to-one service.

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
