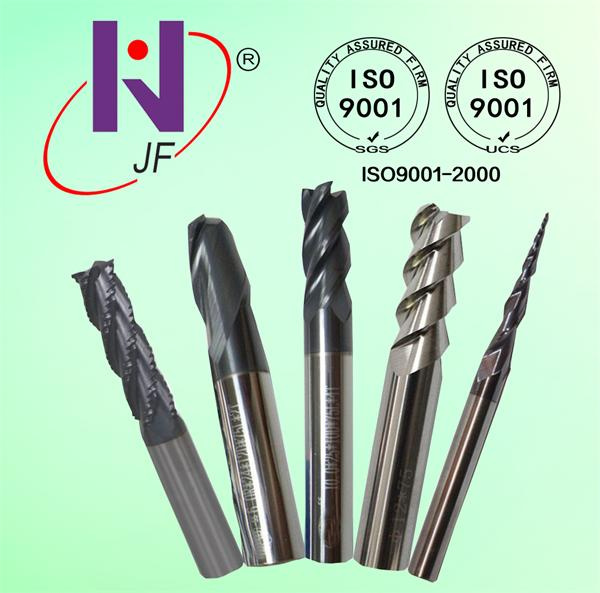

Tungsten Carbide Milling Cutter Tool
1. Our advantages: 1. Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness, high -wearing feature. 2. Reduce the rudding coefficient & save the processing time, Specializing in high speed cutting of CNC milling machine. 3. Wide range of application: Suitable for copper, castiron, carbon steel, stainlees steel, Non-ferrous material and Heat-treated steel processing. 4. The shank and helix angle can be customized according to customers' requirements. 2. Speciafication & Preformance: 1. Chemical composition: 10%-12%Co-WC 2. Physical and machinal properties: Density: 14.10-14.45g/cm3 Hardness: 91.5-92.5HRA Flexaral strength: 3500-4000N/mm2 3. Organizational structure: WC mean Grain size: 0.5-0.6 um 4. Raw material: HRC45° - K10 HRC50° - K20F/K40F HRC55° - K44F HRC60° - K55SF 3. Quality Assure 1. Best materials: Our materials are the oriental materials at China and World. China: Zhuzhou, Nanchang, Zi gong, CB of Taiwan. World: Teagutec of Korea Kennametal of America. Guhring of Germany 2. The processing equipments: 1. Walter CNC machine from Germany 2. ANVA CNC machine from Australia 3. Strict Test: Strict test is carried out on every procceduce during the whole course of the production. Each product inspected by precision inspected machine.
Advanced equipments: 1. Guhring detecting instrument from Germany. 2. Mitutoyo detecting instrument from Japan. 3. PARLEC tool presetter from America. 4. Passed ISO 9001: 2000 the quality authentication. 5. PACKING 1. One piece in a platic pipe. 10 pieces in a group. 2. Use the air bubble paper to encase the plastic pipe 3. Put the goods encased with air bubble paper in the carton 4. Other packing will be accpet accord your needs. 5. Solid Carbide End Mills - Shipping and DeliveryWe normally will dispatch your order within 2-10 working days depends on stock level, as soon as the order is shipped, we will list the tracking number on your order detail page, if there is any problem regarding to the shipping, please feel free to contact us.
Below shows the estimate delivery time for different courier:
- DHL: 5-7 working days
- FedEx: 7-10 working days
- UPS: 5-7 working days
- EMS: 10-14 working days Delay is possible and depends on your local custom and postal services. Why Choose JF1) Demand--Custom demand are welcomed.
2) Design--Design and Development Team to meet your individual demands.
3) Molds--Various molds existed.
4) Production--Assembly line production, high standard and strict requirements.
5) Products--More than 2000 products are available.
6) Package--Tailor-made package to cater for your personalize taste.
7) Payment--Various options to make payment more convenient.
8) Logistics--Various cooperated express to reduce on your freight cost.
Customer Service--E-mail your suggestions or complaints, and we will handle them ASAP
our more hot product group
By the way, we also supply non-standard end mills. If you are interested in our products, please kindly send the drawings, specification or detail size to us. We will try our best to offer you best services. If you are interested in our products, please contact me at any time. Thanks! Super raw material
Kennametal Carbide from USA, Sandvik Carbide from Sweden, CB Carbide from Taiwan, Zhuzhou Carbide from Hunan province.
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25 | Germany K44 & K40 | Sandvik H10F |
Grain Size:0.7um
Co:10 %
Flexural strength:3320N/mm2 | Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2 | Grain Size:0.5um
Co:12 %
Flexural strength:4300N/mm2 | Grain Size:0.5um
Co:10 %
Flexural strength:4300N/mm2 |
Super coating
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue
|
| code | diameter(mm) | cutting length | shank diameter | total length |
| x006-1 | 1 | 3 | 4 | 50 |
| x006-2 | 2 | 6 | 4 | 50 |
| x006-3 | 3 | 8 | 4 | 50 |
| x006-4 | 4 | 12 | 4 | 50 |
| x006-5 | 5 | 15 | 6 | 50 |
| x006-6 | 6 | 15 | 6 | 50 |
| x006-7 | 7 | 20 | 8 | 60 |
| x006-8 | 8 | 20 | 8 | 60 |
| x006-9 | 9 | 25 | 10 | 75 |
| x006-10 | 10 | 25 | 10 | 75 |
| x006-11 | 11 | 30 | 12 | 75 |
| x006-12 | 12 | 30 | 12 | 75 |
| x006-13 | 13 | 40 | 14 | 80 |
| x006-14 | 14 | 40 | 14 | 80 |
| x006-15 | 15 | 45 | 16 | 80 |
| x006-16 | 16 | 45 | 16 | 80 |
| x006-17 | 17 | 45 | 18 | 100 |
| x006-18 | 18 | 45 | 18 | 100 |
| x006-19 | 19 | 50 | 20 | 100 |
| x006-20 | 20 | 50 | 20 | 100 |
