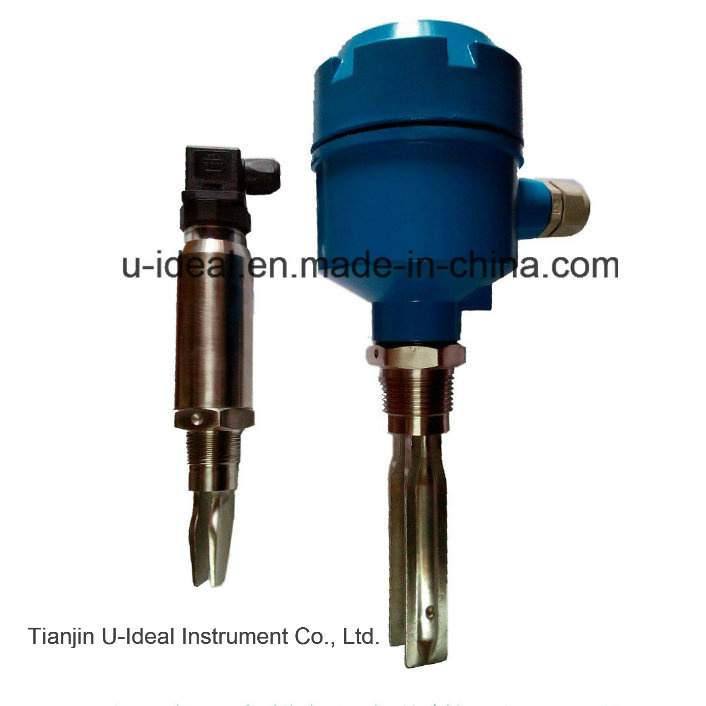

Tuning Fork Level Indicator - Level Switch
| Price: |
US $ 180-300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Packaging & Delivery
Packaging Details: | 1 unit in single carton case |
| Delivery Detail: | 1 unit in single carton case |
Specifications
1. It instructs highlightingly.
2. It is adapt to be observed in the night.
Product Description
Series XK-UY600 tuning fork level switch can measure the material level of different states and densities. It is applicable for the alarm and control of various silos solid material levels and liquids in various containers.
Solid materials: fly ash, cement, stone ash, plastic granules, salt, sugar,etc.
Liquid media: water, acid, alkali, slurry, pulp, dye, oil, milk, wine, beverage,etc.
1. Operating Principle
The XK-UY600 tuning ork switch is made up of sender fork and magnifying glass. Two sets of piezoelectric crystals are pressed at the root of the fork body. One set is the drive .The drive prong generates the vibration. The other set is the detector, which transform the vibration of the prong into voltage signals. When the prong is blocked, the amplitude of the oscillator becomes smaller and the relay output the switch signals.
2.Specification
Ambient temperature:-25~60°C
Fork material: copper alloy or stainless steel(according to the user orders)
Power voltage:AC220V 50/60Hz; DC24V
Power:1.5W
Output signal: two sets of normally open and normallyclosed contact points: 0/10mA
Contact capacity:AC220V 5A
Maximum dimension of the material particle:not more than10mm
Working temperature in the container:-20~300°C(The working temperature should be specified when you place an order.)
Oscillation frequency of the tuning fork: about 200Hz
Amplitude of the tuning fork: about 0.5mm
Dalai time of the tuning fork: Damping delay: about 2S, free delay: about 7S
The medium is non-viscous material. It doesn't contain any material which is corrosive to the fork.
Protection grade:IP65
Explosion-proof: solid: DIP, DT13 dust- explosion(It is not applied to explosive places.)
Liquid:dllBT4
