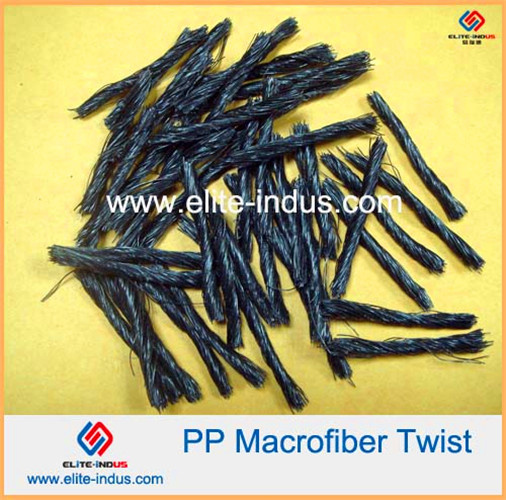

Twisted Bundle PP Fiber twist for Construction
PP Twist Fiber Description:
PP twist Fiber can be used to instead of steel fibre for reinforcement to cement concrete. Compared with steel fibre, it has the advantage of easy dispersing and blending, no damage to the mixing equipments, etc.
The rigid polymer fibre is used polypropylene as its raw material, produced the rough surface
Treatment by special parallel thread extruding & twisting process. It has high break strength,
Better dispersion and strong combining ability, will be widely used to instead of steel fibre to reinforce the cement concrete and crack resistant.
PP Twist Fiber Applying Instruction:
1, Ration design of the fibre concrete:
Generally the recommended amount to add to the concrete is more than 2.7kg per sqm
( volume ratio is 0.3% ), reinforcement adding amount is 5.5kg, Compared with adding 47kgOf steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.
2, length: 48mm or 54mm for common crack-resistant requirement.
3, Matching Ratio:
Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer fiber is recommend to combine with
The polypropylene fiber mesh with the volume ratio of 1: 1 ( 0.9kg fiber-mesh per sqm
Of cement concrete).
4, Mixer Adoption: Double-axle horizontal compelling mixer is priority.
5, Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes, fiber will fully spread and then add cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be properly prolonged to make fiber completely Mixed.
6, Shaping & Maintenance
There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same as the normal concrete.
PP Twist Fiber Package:
1,1kgs/PE film bag,10PE film bags/10Kg/Plastic Woven Bag.5500kgs/20'gp,11000kgs/40'gp,12000kgs/40'HQ
2,1kgs/PE film bag, 10PE film bags/carton, 4000kgs/20'gp,8000kgs/40'gp, 9900kgs/40HQ
3,0.5kgs/Water-soluble paper bag, 20 paper bag bags/carton, 4000kgs/20'gp,8000kgs/40'gp, 9900kgs/40HQ
4,other packing can as per your request
PP twist Fiber Economy:
Compared with steel fiber, Polymer fibre has the advantages of corrosion and wear-resistant reducing 50% cost with same volume to steel fibre.
PP Twist fiber Specification:
| Main Technical Specification |
| Density(g/cm 3 ) | 0.91 +/- 0.01 |
|
|
| Length(mm) | 19,48,54mm | Equivalent Dia(mm) | 0.3±0.05 |
| Shape | twist | break tensile Ratio(%) | 8-15 |
| Crack Ratio | 20+/-5 % | Melting point ( C. Deg) | 160-170 |
| Tensile Strength | >500 mpa | Water absorbency | NO |
| Elastic Modulus (mPa) | >3500 | Resistance to acid & alkali | strong |
| Recommend adding quantity: 2.0 - 3.0 kgs fiber to one cubic meter concrete as per different application. |
