| Price: | US $ 61000set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T,Money Gram,Western Union |

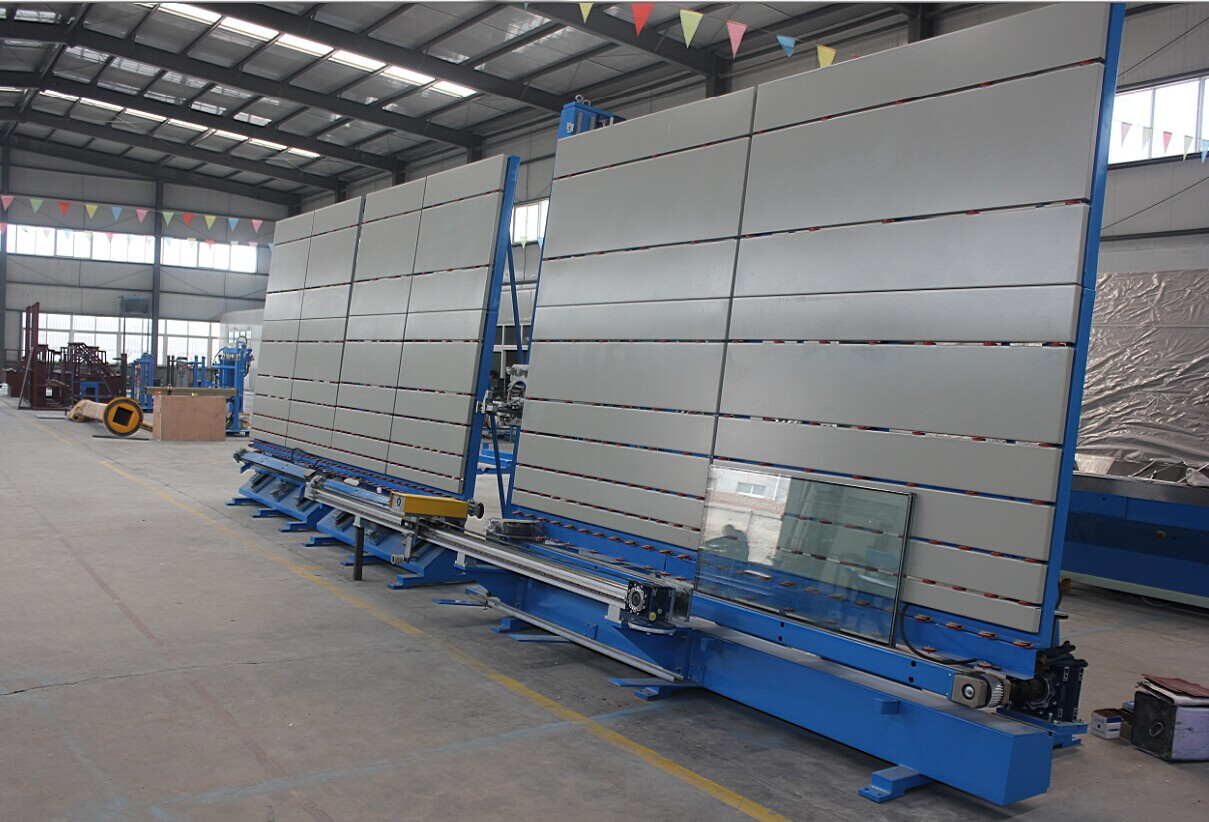

YGM2500 Insulating Automatic Sealing Robot:
1.Functions & characteristics:
1) Achieve various size of rectangular insulating glass automatic continuously sealing,high efficiency & stable quality sealing performance.
2) Two separate sealant(pump,mixing device )system,which can be switched freely.
3) Finished IG unit can be stored on the third section,strengthen the continuity of machine's operation,and improve the production efficiency.
4) Economical and practical,suitable for glass deep,processing enterprises.
5) Friendly interface,easy for operation
6) All edges and corners sealant coating enrich no air bubbles,fully coating ,without manual trimming.
7) Adopt word-renowned brand of servo control system,stable perfomance.
8) Accurate synchronous belt transmission system to ensure glass convey stable and clean.
9) Unique insufficient sealant to be automatic alarm device.
Technique parameter:
Min. Glass size: 280x450mm
Max. Glass size: 2500x3500mm
Glass thickness: 3-12mm
Insulating glass thickness: 12-60mm
Sealing speed : 12-30m/min
Sealing width: 6-24mm
Sealing depth: 2-15mm
Conveyor speed: 0-48m/min
Power supply: 13KW
Air supply: 0.5-0.8Mpa
Working height: 520mm
Dimension: 8800X4000X3400mm
| Prod Model: | YGM2500 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Min.Glass Size: | 280X450mm |
| Glass Thickness: | 3-12mm |
| Max.Glass Sze: | 2500X3500mm |
| Sealing Speed: | 12-30m/Min |
| Sealing Width: | 6-24mm |
| Sealing Depth: | 2-15mm |
| Conveyor Speed: | 0-48m/Min |
| Power Supply: | 13kw |
| Air Supply: | 0.5-0.8mpa |
| Working Height: | 520mm |
| Color: | Silver |
| Usage: | Building |
