Product Specifications
Prod Model: |
XLB-Q |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Two Layer Conveyor Belt Curing Press |
Brand Name: |
Desiree |
Design: |
by Own R&D Team |
Heating: |
by Steam |
Experience: |
More Than 20years |
Quality: |
Excellent |
Delivery: |
Punctual |
Service: |
Timely |
Warranty: |
12months |
Type: |
General Rubber Machinery |
Certification: |
CE, ISO |
Product Description

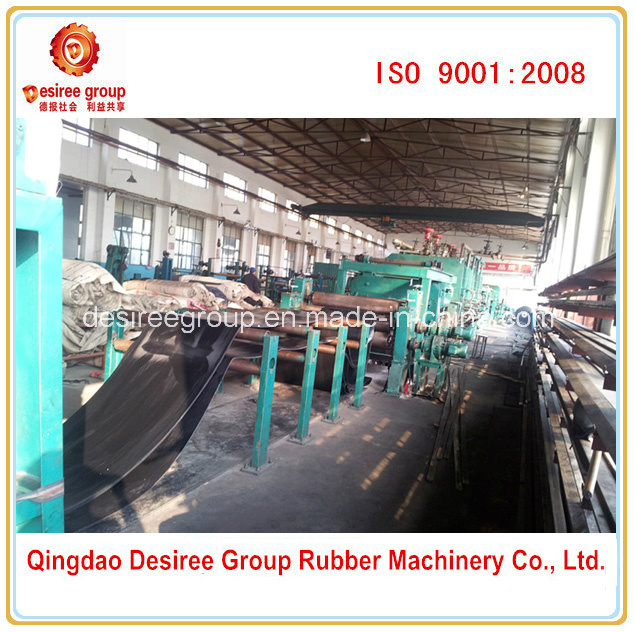

Two Layer Conveyor Belt Curing Press
Function:
Mainly used for the vulcanization of the conveyor belts such as PVG belt, anti-flammable belt, nylon belt, fabric core conveyor belt, steel cord belt etc.
Main Devices:
1. Fabric rolling device
2. Green belt unwinding device
3. Turn roll
4. Rollers
5. Front traction device
6. Front clamping and stretch device
7. Vulcanizing press
8. Middle clamping device
9. Rollers
10. Rear clamping and stretch device
11. Rear traction device
12. Repairing curing press
13. Crimping packaging machine
Features:
1. Adopts PLC control:
Can realize many auto works such as mould closing, air exhausting, temperature control, vulcanization timing, alarming and discharging load when mould opening etc; The touch screen will timely show the temperature of the heating platen at each heating zone.
2. The hydraulic cylinder is made of ZG270-500.
The ram is made of close-grained chilled alloy cast iron by casting and fine grinding.
The hydraulic cylinder is well sealed by YX shape sealing ring.
3. Hydraulic pressure system:
We adopt the famous brand hydraulic pressure station from the domestic and abroad, under the controlling of PLC, it can realize the auto mould closing, air exhausting and load discharging when opening mould.
Advantages:
1. High speed open/close mold, stable pressure, good control in vulcanizing time and temperature.
2. Automatic and manual operation system, design by your order.
3. Stabile performance, good quality and reliable service.
Our Services:
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas.
3. Any demand, we will give feedback within 24hours.
Any question, please feel free to contact with me.
Welcome to make a field inspection of our factory.
The following parameters are normal technical parameters for conveyor belt production line. You can tell us your request, then we design the suitable production line for you.
Description |
Unit |
XLB-1800*12000*2 |
XLB-1800*10000*2 |
XLB-1600*10000*2 |
XLB-1600*10000*1 |
XLB-1400*10000*1 |
Hot-plate size |
mm |
1800*12000 |
1800*10000 |
1600*10000 |
1600*10000 |
1400*10000 |
Total pressure |
MN |
74 |
72 |
56 |
64 |
49 |
Hot-plate unit pressure |
MPa |
3.4 |
4 |
3.5 |
4 |
3.5 |
Plunger diameter |
mm |
500 |
500 |
450 |
500 |
450 |
Plunger No |
nos |
18 |
18 |
18 |
18 |
18 |
Max plunger stroke |
mm |
400 |
300 |
400 |
300 |
300 |
Gripping strenth |
MN |
1.2 |
1.5 |
1.2 |
1.2 |
0.9 |
Tension force |
MN |
1.1-1.2 |
1.1 |
1 |
0.5 |
0.9 |
Steam pressure |
MPa |
0.63 |
0.6-0.8 |
0.63 |
0.6-0.8 |
0.63 |
Cooling water pressure |
MPa |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
controlling method |
|
PLC |
PLC |
PLC |
PLC |
PLC |
