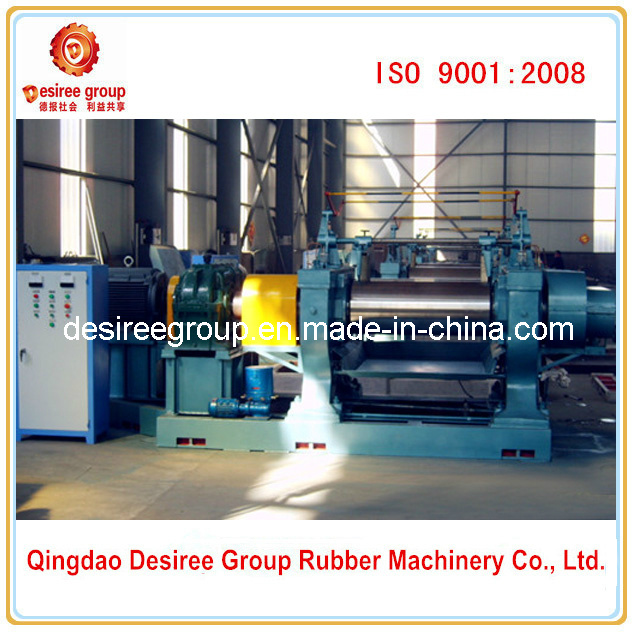

Two Roll Rubber Mixer / Rubber Mixing Machine / Open Mixing Mill / Rubber Fining Mixer
Function:
Mainly for rubber warming, plasticating, mixing, and sheeting.
Features:
1. Rollers: Made of alloy chilled cast iron, hollow, with smooth surface after precision grinding processing.
2. Reducer: Noise is low, and using life is long.
3. Bush: Three types, nylon, copper, and roller bearing
4. Nip adjustment: Two types, manual and electric
5. Lubrication of roll: Two types, oil lubrication and grease lubrication
6. Emergency stop device: With emergency button and lever, to ensure the safety of operator and equipment.
Quality Control:
BEFORE PACKAGE, LOAD TEST WILL BE CARRIED OUT, TO ENSURE THE CUSTOMER CAN USE THE MACHINE IMMEDIATELY AFTER INSTALLATION.
Our Services:
1. One year warranty for free.
2. Lifetime technical support.
3. Engineers available to service machinery overseas.
4. Any demand, we will give feedback within 24hours.
Welcome to make a field inspection of our factory.
We are always pleased to serve you at any time.
Two Roll Rubber Mixer Model No. |
XK-400 |
XK-450 |
XK-560 |
XK-550B |
XK-660 |
Roll working diameter(mm) |
400 |
450 |
560/510 |
550 |
660 |
Roll working length(mm) |
1000 |
1200 |
1530 |
1500 |
2130 |
Linear velocity of the front roll(m/min) |
18.65 |
24.26 |
27.72 |
27.94 |
28.6 |
Friction ratio of rolls |
1:1.27 |
1:1.27 |
1:1.2 |
1:1.22 |
1:1.24 |
Max. nip of rolls(mm) |
10 |
15 |
15 |
15 |
15 |
Feeding capacity per batch(kg) |
18~35 |
25~50 |
35~50 |
50~60 |
165 |
Motor power(kW) |
37 |
55 |
90 |
110 |
245 |
Overall size: L * W * H (mm) |
4350*1850*1785 |
5200*2380*1840 |
5845*2284*1978 |
5870*2475*2045 |
7465*3662*2080 |
