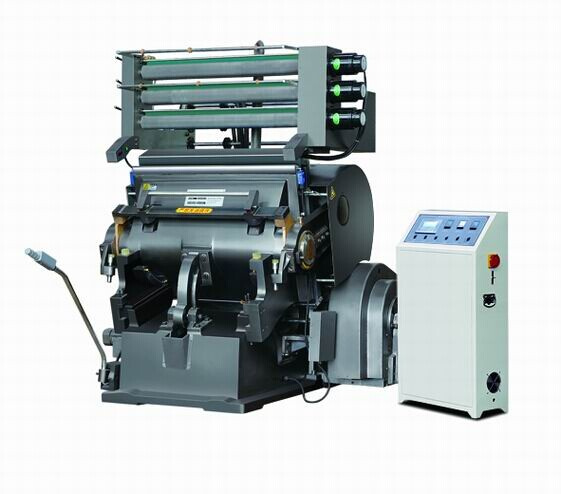

Die cutting & hot foil stamping machineHot Foil Stamping and Die Cutting Machine is a kind of special equipment used for thermo-printing and creasing various products, such as cardboard, leather and plastic etc.
It is suitable for thermo-printing various paper products with electrochemical aluminum and also used as a creasing and die cutting machine for mould cutting and creasing cardboard cases and boxes. Concave-convex thermo-printing of various high-grade and fine printed products can also be conducted on this machine for obtaining stereoscopic exquisite and beautiful packing and decorating products.
The machine is controlled by a chip microprocessor. With the foil-feeding rubber roller of electrochemical aluminum driven by the separately set length and leapfrog parameters to make the most effective using of electrochemical aluminum. The purpose of this model is to ensure that the system runs stably and reliably so that the machine can be maintained easily and simply.
|
Model |
Max.Die cutting Size(mm) |
Max.Foil Stamping Size(mm) |
Foil Length(mm) |
Moto Power |
Power(kw) |
Weight(kg) |
Speed(Stroke/min) |
Foil Groups |
Heating Area |
Overall Dimension(mm) |
|
TYMK-750 |
750*520 |
740*510 |
520 |
2.2kw-6H |
10.2 |
2200 |
26±3 |
2 |
4 |
1450*1900*1950 |
|
TYMK-930 |
930*660 |
930*640 |
640 |
4Kw-4H |
16.5 |
3500 |
23±2 |
3 |
5 |
1800*1900*2150 |
|
TYMK-1040 |
1040*720 |
1040*720 |
720 |
4Kw-4H |
16.5 |
3800 |
23±2 |
3 |
5 |
1800*1900*2150 |
|
TYMK-1100 |
1100*800 |
1100*800 |
800 |
4Kw-6H |
20.5 |
4700 |
20±2 |
3 |
5 |
2150*2150*2300 |
|
TYMK-1200 |
1200*820 |
1200*820 |
820 |
4Kw-6H |
20.5 |
5000 |
20±2 |
3 |
5 |
2150*2250*2300 |
|
TYMK-1300 |
1300*920 |
1300*920 |
920 |
7.5KW-6H |
28.5 |
6500 |
15±2 |
3 |
5 |
2200*2300*2300 |
|
TYMK-1400 |
1400*1000 |
1400*1000 |
1000 |
7.5KW-6H |
28.5 |
7000 |
15±2 |
3 |
5 |
2300*2350*2300 |
|
TYMK-1500 |
1500*1040 |
1500*1040 |
1040 |
7.5KW-6H |
28.5 |
7500 |
15±2 |
3 |
5 |
2400*2400*2300 |
|
TYMK-930Q |
930*660 |
930*640 |
640 |
4Kw-4H |
18.75 |
3700 |
23±2 |
3 |
5 |
1800*1900*2200 |
Wenzhou Changs Machinery Co., Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines, has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea's market and domestic.
To serve buyers the best machine and ensure our machines are with reliability quality, our factory employed skilled engineers and using advanced technology equipment, the raw material and components are carefully selected. Meanwhile, we have built closely cooperative relationship with domestic colleges, universities and R&D institutes. Further on we have established a solid relationship with reliable equipment suppliers and our service team are got rich experience in the industry.
Changs International is located in Wenzhou which is a coast city, it is near to Shanghai or Ningbo port. The convenient transportation reduces transport cost and shortened machine's delivery time aswell.
Being persistent, honest and trustworthy is our Changs International's beliefs, we are building service brand to fully meet the reasonable requirement of customers. Get in touch with www. Changsinter. COM today to find your needful here.
