Product Specifications
| Prod Model: |
D301 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: |
Sealing Strip |
| Shape (for Gasket): |
Ring Gasket |
| Function: |
Fixed Sealing |
| Application: |
Equipment Seal Hydroseal Auxiliary Seal |
| Standard: |
Standard |
| Material: |
PU |
| Shape: |
O-Ring |
Product Description
Performance and Purpose:

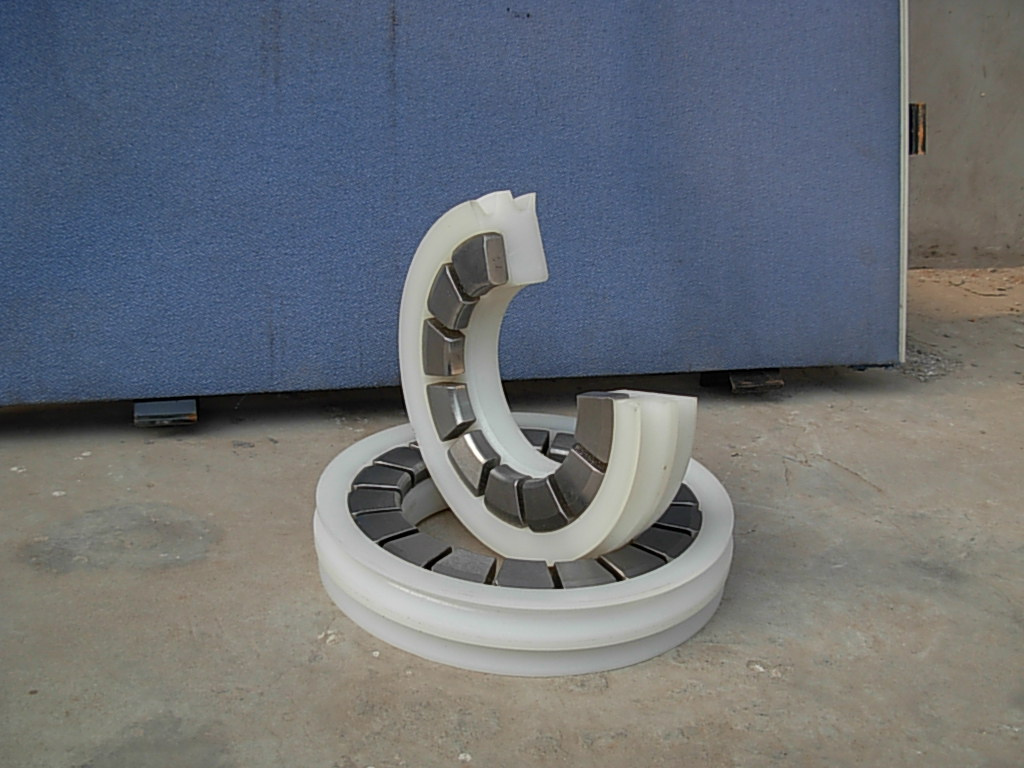

The sealing component is made up of a polyurethane sealing ring and fan-shapde supportors. It is mainly used in the pressure test of steel pipe by hydrostatic testing machine. In the non-working state between the sealing ring and surface of steel pipe exists gap. When hydraulic liquid is applied to the external of the sealing ring, the ring is pressed to enclose the surface of steel pipe firmly, and then the pressure testing can bi performed. It is applicable to the pressure testing of casing, tubing, natural gas pipe and other steel pipe. It has also been used in leak inspection of the steel pipe. It has also been used in leak inspection of the steel pipe, connection, welded joints and sealing for the high pressure valve.
Material:
Polyurethane
Working conditions:
According with API 5CT/ISO11960: 2011, GB/T9711.1-2011, etc. Such as petroleum and natural gas industries--Steel pipes for use as casing or tubing for wells. GB/T8163-2008 seamless steel tubes; GB/T3092-93 welded steel pipes, and other standard hydraulic testing conditions.
Working medium: Water, emulsion, hydraulic oil;
Working temperature: -20degrees Celsius to +80degrees Celsius;
Working pressure: ≤ 80 MPa
Material: Polyurethane
Design standards: Refer to GB/T3672.1-2002 tolerance.
Sample for ordering sign: Marked the type, size and order No. Of the sealing components, Order No. Only is also permitted.
Type Order No.: D301-D314
|
Order No. |
Model |
Pipe Size(Inch) |
Groove dimensions |
Ring size |
|
Groove diameter D |
Nozzle diameter d |
Width H |
D0 |
d0 |
|
D301 |
D31.8-33.5 |
1 1/4" |
166.5 |
42 |
33.5 |
168 |
48 |
|
D303 |
D48.3-33.5 |
1.9" |
166.5 |
58 |
33.5 |
169 |
64 |
|
D304 |
D60.3-33.5 |
2 3/8" |
166.5 |
70 |
33.5 |
169 |
76 |
|
D305 |
D73-33.5 |
2 7/8" |
175.5 |
83 |
33.5 |
178 |
89 |
|
D306 |
D88.9-33.5 |
3 1/2" |
192.5 |
99 |
33.5 |
195 |
106 |
|
D308 |
D101.6-33.5 |
4" |
205 |
112 |
33.5 |
208 |
120 |
|
D309 |
D114.3-33.5 |
4 1/2" |
205.5 |
124 |
33.5 |
208 |
128 |
|
D310 |
D127-39.5 |
5" |
235 |
137 |
39.5 |
238 |
145 |
|
D311 |
D139.7-33.5 |
5 1/2" |
229 |
151 |
33.5 |
231.3 |
156.4 |
|
D312 |
D153.7-34.5 |
6.05" |
244 |
164 |
34.5 |
247 |
169 |
|
D313(1) |
D158.8-36.5 |
6 1/4" |
253.5 |
169 |
36 |
256 |
188 |
|
D313 |
D168.3-36.5 |
6 5/8" |
253.5 |
178 |
36 |
256 |
188 |
|
D313(3) |
D177.8-36.5 |
7" |
253.5 |
184 |
36 |
256 |
188 |
|
D314 |
D194.5-36.5 |
7.657" |
264 |
200 |
36 |
266 |
203 |
"Beijing JIANKE HUIFENG SCIENCE & TECHNOLOGY Co., Ltd. "(Registered trade mark)is a science and technology manufacturer, specialized in developing, producing and selling the ultrahigh-pressure sealing components for steel pipe hydrostatic testing machine.
Since 1992, we have been concentrating on the development and manufacturing of sealing components for hydrostatic testing machine. And we have the strong professional research development team and excellent after-sales service team. The products have been awarded many national patents (Patent No.: 012198439, ZL02 2 94523.7, ZL2011 02 0243967.4) and the products meet hydrostatic testing requirements: such as the standard of API Spec 5CT/ISO11960: 2011 for
. The products are famous for its stable and durable performance and wildly used in domestic and Southeast Asian countries. Moreover, it is listed as Class A vendor by "Tianjin Pipe (Group) Corporation".
The company also established a long-term partner relationship with more than ten major hydrostatic testing machine designing company and units to develop and produce many kinds of sealing products to meet their equipment.
The company's "Quality target" is: to meet customer's demand and achieve win-
win with superior quality, high efficiency, and continuous improvement.
In 2002, the company got approval of ISO 9001: 2008(GB/T19001-2008/ISO9001: 2008) with registered No.: 04312Q20554R2S.
We understand our customers, we care about the future of our business. We want to ensure that you get our good service, not only high quality and speedy delivery.
