Product Specifications
| Prod Model: |
CJX2C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Thermal Relay |
| Size: |
Miniature |
| Usage: |
Household Appliances Relay |
Product Description
Why choose us?
1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...
Application

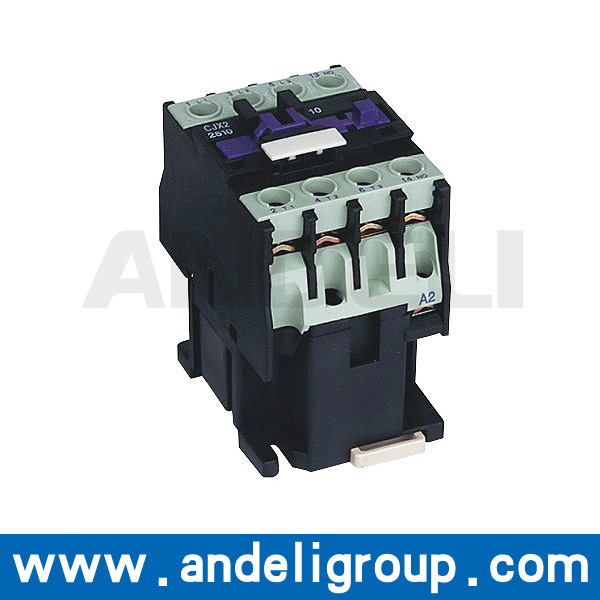

CJX2C series AC Contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply withIEC60947-4.
|
Type |
|
CJX2C-09 |
CJX2C-12 |
CJX2C-18 |
CJX2C-25 |
CJX2C-32 |
|
Rated working current (A) |
AC3 |
9 |
12 |
18 |
25 |
32 |
|
Rated working current (A) |
AC4 |
3.5 |
5 |
7.7 |
8.5 |
12 |
|
Standard power ratings of 3-phase motors 50/60Hz in category AC-3(kW) |
220/230V |
2.2 |
3 |
4 |
5.5 |
7.5 |
|
Standard power ratings of 3-phase motors 50/60Hz in category AC-3(kW) |
380/400V |
4 |
5.5 |
7.5 |
11 |
15 |
|
Standard power ratings of 3-phase motors 50/60Hz in category AC-3(kW) |
415V |
4 |
5.5 |
9 |
11 |
15 |
|
Standard power ratings of 3-phase motors 50/60Hz in category AC-3(kW) |
500V |
5.5 |
7.5 |
10 |
15 |
18.5 |
|
Standard power ratings of 3-phase motors 50/60Hz in category AC-3(kW) |
660/690V |
5.5 |
7.5 |
10 |
15 |
18.5 |
|
Rated heat current (A) |
|
20 |
20 |
32 |
40 |
50 |
|
Electrical life |
AC3 (x104) |
100 |
100 |
100 |
100 |
80 |
|
Electrical life |
AC4 (x104) |
20 |
20 |
20 |
20 |
20 |
|
Mechanical life (x104) |
|
1000 |
1000 |
1000 |
1000 |
800 |
|
Number of the contacts |
|
3P+NO |
|
|
|
3P+NC |
|
Type |
|
CJX2C-40 |
CJX2C-65 |
CJX2C-80 |
CJX2C-95 |
|
Rated working current (A) |
AC3 |
40 |
65 |
80 |
95 |
|
|
AC4 |
18.5 |
28 |
37 |
44 |
|
Standard power ratings of 3-phase motors 50/60Hz in category AC-3(kW) |
220/230V |
11 |
18.5 |
22 |
25 |
|
Standard power ratings of 3-phase motors 50/60Hz in category AC-3(kW) |
380/400V |
18.5 |
30 |
37 |
45 |
|
Standard power ratings of 3-phase motors 50/60Hz in category AC-3(kW) |
415V |
22 |
37 |
45 |
45 |
|
Standard power ratings of 3-phase motors 50/60Hz in category AC-3(kW) |
500V |
22 |
37 |
55 |
55 |
|
Standard power ratings of 3-phase motors 50/60Hz in category AC-3(kW) |
660/690V |
30 |
37 |
45 |
55 |
|
Rated heat current (A) |
|
60 |
80 |
125 |
125 |
|
Electrical life |
AC3 (x104) |
80 |
60 |
60 |
60 |
|
|
AC4 (x104) |
15 |
15 |
10 |
10 |
|
Mechanical life (x104) |
|
800 |
800 |
600 |
600 |
|
Number of the contacts |
|
3P+NC+NO |
