UDL Series Stepless Worm Speed Reducer
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
UDL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO9001, ISO14001 |
| Max Speed: |
880, 950, 1000rpm |
| Motor Power: |
0.18kw, 0.25kw, 0.37kw, 0.5 |
| Size: |
Udl002-100 |
| Toothed Portion Shape: |
Curved Gear |
| Type: |
Worm and Wormwheel |
Product Description
Stepless-Worm Gearbox: Motor power: 0.18kw, 0.25kw, 0.37kw, 0.55kw, 0.75kw, 1.5kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 4kw, 5.5kw, 7.5kw
Size: 56-200
Mounting position: B3, B8, V1, B6, B7
Max speed: 880, 950, 1000rpm,
Min speed: 165, 170, 200rpm,
Max torque: 3, 6, 12, 43, 48, 64, 90, 118

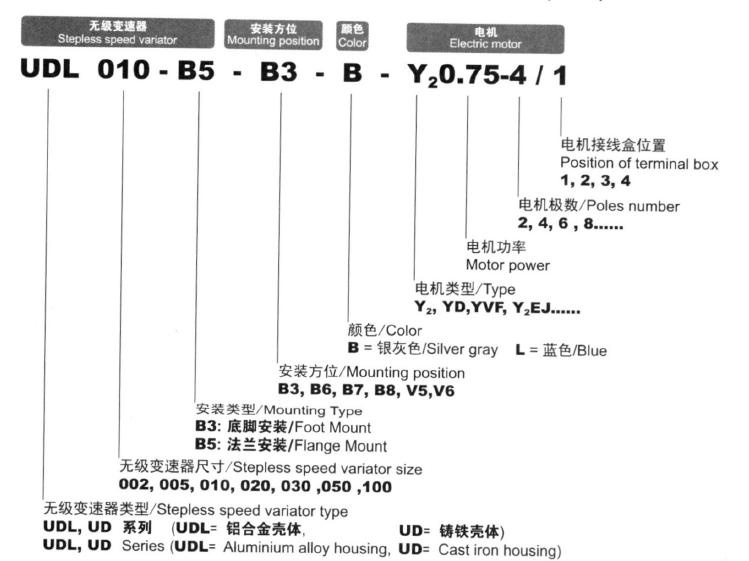

Min torque: 1.5, 2, 3, 4.4, 6, 9, 12, 18, 24, 36, 48, 64, 90, 118Model Denotation

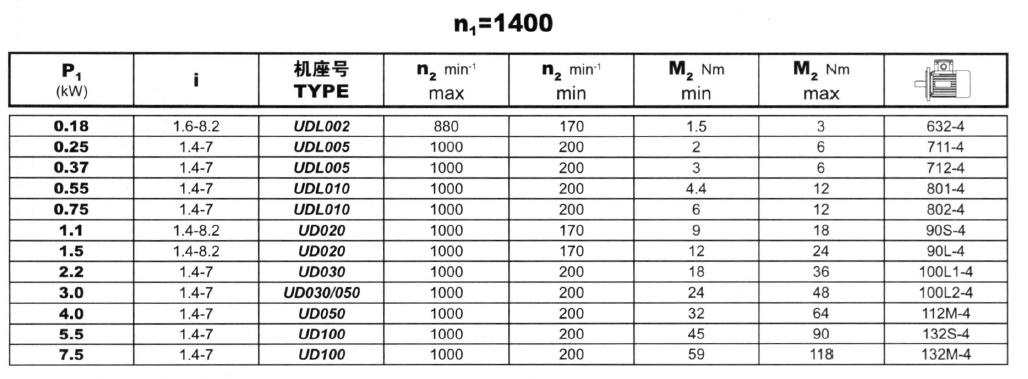

Technical Performance

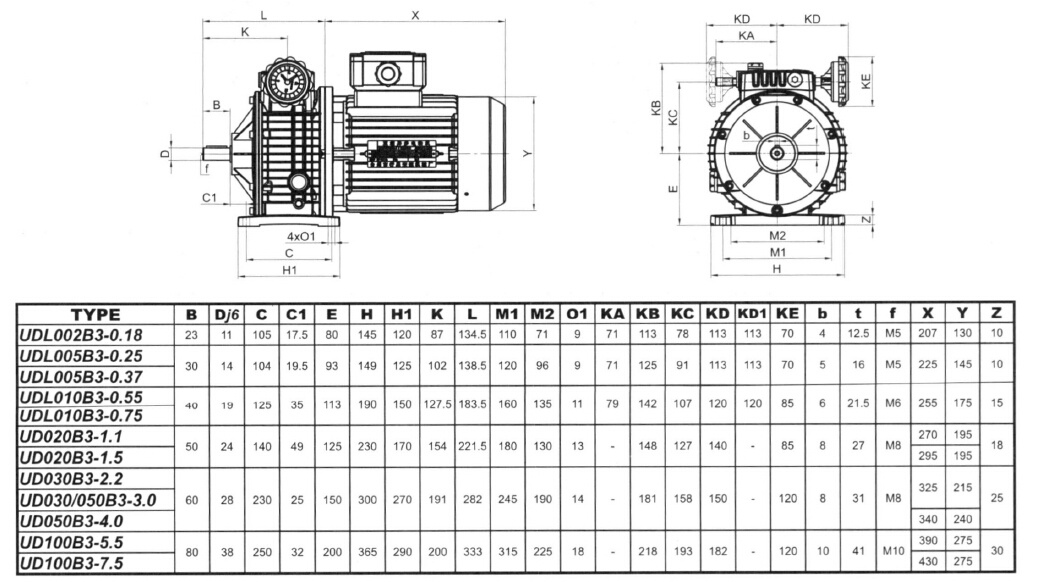

UDL-B3 Foot-mounted dimension drawing
Shanghai Goldgun aims at "a professional supplier of transmission equipments and parts" when founded in July 2003. Under the guidance of this ultimate goal, it upgrades step by step.
Our products include:
1. Helical Gearbox / Geared Motor
2. Right Angle Shafts & Parallel Shafts Hardness Gearbox
3. Cycloidal Reducer
4. Worm Reducer
5. Variable Speed Reducer (stepless reducer) (0.12kw-7.5kw)
6. E-motor
7. Planetary Gearbox
8. Door Opener
9. Bearing and Coupling
10. Inverters
Above products are widely applicated in chemical, metallurgy, mining, cranes, cement, conveyors, paper, rubber&plastic, printing&dying, textile, food, woodworking, glass, environment protecting and other machine equipment fields.
