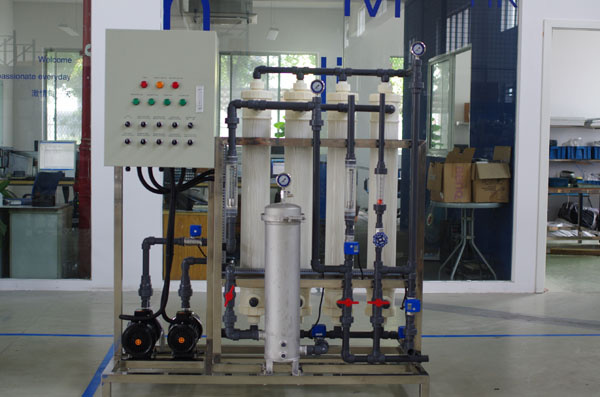

Ultra Filtration System
Martin Ultra Filtration System, A fully pre designed and engineered Ultra Filtration skid range with flows from 1m3/hr (6, 000 GPD) through to 70m3/hr (42, 000 GPD).
Martin Ultra Filtration System features a compact space saving design, high quality components and offer high performance. The systems are designed for simple user-friendly controls, rugged construction, minimum energy consumption with lower maintenance and operation costs. Systems are enabled plug and play with pre-treatment and post treatment variations that are required at certain sites.
Standard Features
304 stainless steel frame
UPVC high pressure housings
SS304 feed pump
SS304 backwash pump
Automatic controlled valves
Powder coated carbon steel control panel
PLC controlled
In-line rotameter
Pressure gauge across membranes
Pressure gauge across pre filtration
CEB enhanced backwash
Full documentation and operator manuals
Additional Options
Variable speed pump controls
PLC controlled with 10" colour HMI screen with user interface and BMS output
Web based internet monitoring
Integrated CIP cleaning skid
Online monitoring of water quality
Operating Parameters
Inlet Specifications
Maximum inlet turbidity: 200NTU
Temperature range: 5-45C
Operation pH range: 2-13
Outlet Specifications
Product outlet turbidity: ≤ 0.07 NTU
Product outlet SDI: <2
MWCO, nominal: 50K Dalton
Maximum feed pressure: 4Bar (60PSI)
Maximum Trans-membrane Pressure: 2Bar (30PSI)
Membrane life span: 3-5years
Membrane style: Inside/Out
Membrane material: PS Modified
Recovery rate: 90%-95%
Design Average: 60LMH
Martin Water Technolgoies Inc. The subisidary of Martin (HK) International Limited in Shanghai. A professionally, technologically integrated manufacturer and distributor, carrying out activities in the filed of water treatment.
With the production facility "Martin Water Technologies Inc" in Shanghai, Martin (HK) International Limited has been managing to quickly and aggressively deliver the products abroad with its emphasis on quality control and customer satisfaction. Martin Products have earned an industry-wide reputation for high quality and superior performance. Many clients in Europe, America, Asia, Africa and Middle East use technologies, products and service of Martin, among them are well-known companies.
Being a designer and manufacturer of the commercial and industrial reverse osmosis systems, Martin (HK) International Limited provides both standard and customized designs in a large range of different systems, including pretreatment and post-treatment equipments. Martin is able to design the right products to fit your application and the best solution for your requirements.
Martin (HK) International Limited has dedicated the efforts into quick and prompt service, keeping close ties with clients, and always having an open and clear channel of communication with all the business partners.
Martin (HK) International Limited and its division Martin Water Technologies Inc. Operate internationally and are constantly developing Martin technology, the companies offer clients worldwide the most effective and advanced water treatment solutions for
Power industry
Industrial processes
Cooling systems
Steam and heat boilers
Drinking water
Waste Water
And also carry out wholesalers of spare parts and materials for the water treatment technologies.
Industries we serve
Power industry
Oil and gas refinery
Food industry
Beverage
Chemical industry
Municipal and government
Production of fertilizer
Textile
Pharmaceutics
Vision
To be a professional company, offering a full range of water treatment products and services in the global market, to constantly improve Martin technologies by developing and implementing new ideas depending upon progressive market requirements.
Mission:
Sales and introduction of advanced water treatment technologies for industry and household needs, directed to improve customer's production quality, to decrease industrial expense and increase its competitiveness, considering features of its manufacture and ecological requirements.
We believe "Life Is Easy To Be Pure" with Martin products.
