Product Specifications
| Prod Model: |
TK-U100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
136-174MHz, 440-480MHz, 400-430MHz |
| Output: |
5W |
| Mode: |
FM |
| Channels: |
16 |
| Dimension: |
54*113*24.9 Mm |
| Weight: |
360g |
| Style: |
Handheld |
| Usage: |
Commercial |
| Type: |
Handheld |
| Display: |
With Display |
| Working Frequency Range: |
UV Double Section |
| Talk Range: |
3-8km |
Product Description

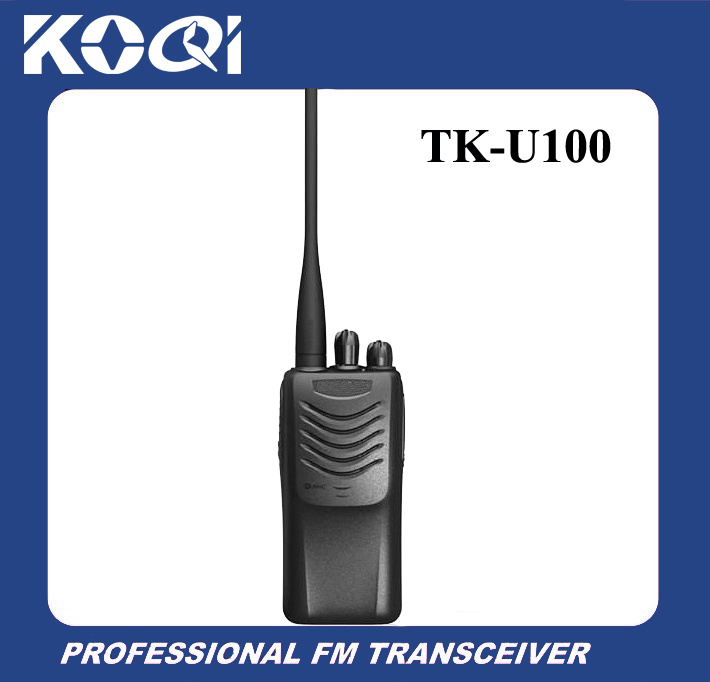

VHF UHF TK-U100 Radio Transceiver
Specification1. Frequency: 136-174MHz, 440-480MHz, 400-430MHZ2. Channels: 163. Output Power: 5W 4. 50 Groups CTCSS/104 Group DCS5. VOX function6. Adjust squelch level(0-9)7. Timer-Out Timer(TOT)8. Auto Scan Priority Channels9. Busy Channle Lockout(BCLO)10. Low battery alert11. Battery Save12. PC programming13. Dimension: 54 x 113 x 24.9 mm (with KNB-63L)14. Voice guide (English)15. Squelch level setting function16. Programmable by software17. Up to 14 hours of work timeEach set packaging including1x Radio1x charge1x battery1x antenna1x belt clip1x user's manualOptional accessoriesSpeaker MicrophoneEarphoneRadio case
Our factory offer OEM service, We look forwards to have an opportunity to cooperate with your esteemed company Delivery Time: 3-5 days via DHL .EMS ,UPS ,TNT, FEDEX ExpressPayment: T/T, Western union, PaypalWarranty: 12 Months Our Services1. Reply your enquiry in 24 working hours.2. Experienced staffs answer all your questions in professional and fluent English.3. Customized design is available. OEM is welcomed.4. Exclusive and unique solution can be provided to our customer by your our well-trained and professional engineers and staffs.5. Special discount and protection of sales area provided to your distributor.6. Do the best products and design the personalized items for our customers. If you are interested in any of our Walkie Talkies, please feel free to contact me. I will reply to you in 24 hours, thanks.
|
model |
TK-U100(V) |
TK-U100(U) |
TK-U100(U) |
|
|
C |
C |
C2 |
|
Basic Specification |
|
frequency range |
144-174MHz |
440-480MHz |
400-430MHz |
|
Channel number |
16 |
|
channel spacing |
Broad band 25kHz/ narrow band 12.5kHz |
|
working voltage |
Dirrect current 7.5V±20% |
Batteryworking time
(5-5-90working cycle & power saving swith) |
About 10h(KNB-63L) |
|
working temperature |
-20°C~ +60°C |
|
frequency stability |
±5ppm |
±2.5ppm |
|
antenna impedance |
50Ω |
|
Channel fazes frequency range |
30MHz |
40MHz |
30MHz |
size(w×h×d)
except for the projection |
54×113×14mm(host)
54×113×24.9mm(with KNB-63L battery) |
|
weight(net weight) |
About 130g(host)
about 203g(with KNB-63L battery) |
|
Receiver (according to EIA/TIA-603 standard test) |
|
sensbility (12dB SINAD) |
broad band 0.25μV/ narrow band 0.28μV |
|
option |
Broad band 70dB/ narrow band 60dB |
|
intermodulation distortion |
broad band 65dB/ narrow band 60dB |
|
audio distortion |
Less than 5% |
|
audio output (7.5V,8Ω impedance) |
500mW |
