Features

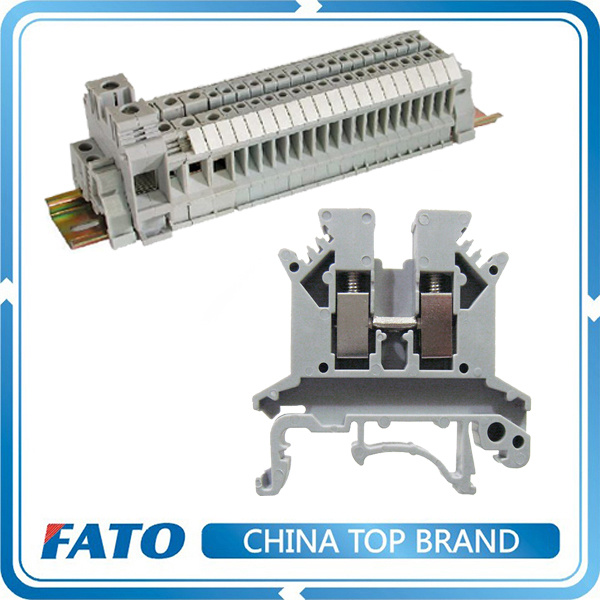

UK Screw Terminal Block
1. UK screw terminal block with universal mounting feet which can be installed on the U-type rail NS35 and G -type rail NS32 .
2. Closed screw pilot holes to ensure ideal screwdriver operation .
3. For a plurality of cross-sectional level of terminal block cover equipped with a unified attachments, such as the end plates, packet separator.
4. Potential distribution through a fixed bridge or insert line access terminal cover central cavity side plug -in bridge .
5. UK screw terminal block: With general-purpose mounting feet, can be installed on tracks NS32 or NS35.
6. Closed bolt leading hole will not only facilitate operation of screwdrivers, also prevent the bolt from dropping out.
7. Electric potential distribution is realized by either connecting central adaptor to the center of terminal or inserting a side adaptor to the cone jack.
8. General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal with multiple sections.
9. The insulating shell is made if imported engineering plastic-polyamide Nylon 66(PA66). It is of
high mechanical intensity, good electric property, and super flexibility.
10. Two ends on the top with white marking system to realize uniformed sign.
Models
Help you to find the most suitable one!
PHOENIX CONTACT | UTL MODEL | | WEIDMULLER | UTL MODEL |
| UK 1.5N | JUT1-1.5 | SAK 2.5EN | JUT2-2.5 |
| UK 2.5N/UK 3N | JUT1-2.5 | SAK 4EN | JUT2-4 |
| UK 2.5B | JUT1-2.5B | SAK 6EN | JUT2-6 |
| UK 5N | JUT1-4 | SAK 10EN | JUT2-10 |
| UK 6N | JUT1-6 | SAK 16EN | JUT2-16 |
| UK 10N | JUT1-10 | SAK 35EN | JUT2-35 |
| UK 16N | JUT1-16 | SAK 70/35 | JUT2-70 |
| UK 35N/UKH 25 | JUT1-35 | EK 2.5/35 | JUT2-2.5PE |
| UKH 50 | JUT1-50 | EK 4/35 | JUT2-4PE |
| UKH 70/UKH 95 | JUT1-95 | EK 6/35 | JUT2-6PE |
| UKH 150 | JUT1-150 | EK 10/35 | JUT2-10PE |
| UKH 240 | JUT1-240 | EK 16/35 | JUT2-16PE |
| USLKG 1.5N | JUT1-1.5PE | EK 35/35 | JUT2-35PE |
| USLKG 2.5 | JUT1-2.5B/PE | ASK 1/EN | JUT2-4RD |
| USLKG 2.5N/USLKG 3 | JUT1-2.5PE | EW 35 | E/2 |
| USLKG 4/USLKG 5 | JUT1-4PE | AKB 2.5 | JUT2-2.5E
|
Parameter
Solid Wire (AWG) | 8-24 |
| Voltage Rating (V) | 800 |
| Current Rating (A) | 57 |
| Thickness (mm) | 8.2 |
| Width (mm) | 42.5 |
| U rail Height (mm) | 47 |
| G rail Height (mm) | 52 |
| Rigid cable (mm2) | 0.2-10 |
| soft cable (mm2) | 0.2-6 |
| International Standard | IEC 60947-7-1 |
