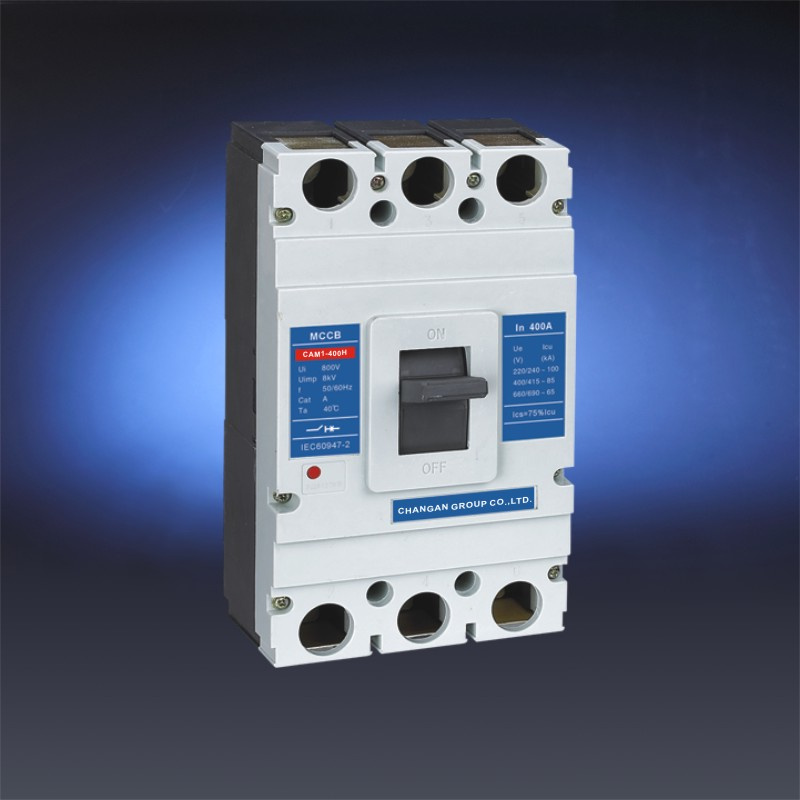

UL Approval Moulded Case Circuit Breaker for Electric Wire Circuit
| Price: |
US $ 15/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product Specifications
| Prod Model: |
CAM1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Triping Type: |
Thermal |
| MCCB Number Of Pole: |
3pole |
| Amperes: |
160A |
| Voltage Range: |
380V |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
| Type: |
Tripping Release |
Product Description
Moulded case circuit breaker
CAM3 series moulded case circuit breaker is one of products developed and manufactured byadopting international advanced technology.
1. Application
CAM3 series moulded case circuit breaker is one of products developed and manufactured byadopting international advanced technology. It is supplied with rated insulating voltage 800Vand used for circuit of A.C. 50Hz, rated operating voltage AC 400V (or below), rated operatingcurrent up to 800A for infrequent changing over and starting of the motors.The products con-forms to IEC60947-2 standard.
2. Main Technical Specification(table1)
Type | Rated
current (A) | Polenum-ber | Ratedinsui-atingvolt-age(V) | Rated
operat-ingvolt-age(V) | Arcing-
over
distance
(mm) | Ultimate
short
circuit
breaking
capacity
(KA) | Servies
short
circuit
breaking
capacity
(KA) | Operation
perform-
ance | Utiliza-tioncat-egory |
| Load | Unload |
| CAM1 -63L | (6),10
16,20
25 ,32
40,50
63 | 3, 4 | 500V | 400V | 0 | 25 | 18 | 1500 | 8500 | A |
| CAM1 -63M | 0 | 50 | 35 |
| TGM1 -100L | (10),16
20,25
32,40
50,63
80,100 | 800V | 0(≤50) | 35 | 22 |
| CAM1 -100M | 0(≤50) | 50 | 35 |
| CAM1 -100H | 0(≤50) | 85 | 50 | 1000 | 7000 |
| CAM1 -225L | 100,125
160,180
200,225 | ≤50 | 35 | 22 |
| CAM1 -225M | ≤50 | 50 | 35 |
| CAM1 -225H | ≤50 | 85 | 50 | 1000 | 4000 |
| CAM1 -400L | 225,250
315,350
400 | ≤50 | 50 | 35 |
| CAM1 -400M | ≤100 | 65 | 42 |
| -630L | 400,500
630 | ≤100 | 50 | 35 |
| CAM1-630M | ≤100 | 65 | 42 |
| CAM1 -630H | ≤100 | 100 | 65 |
| CAM1 -800M | 630,700
800 | 3 | ≤100 | 75 | 50 |
| CAM1-800H | ≤100 | 100 | 65 |
| CAM1 -1250M | 1000,1250 | ≤100 | 100 | 65 |
| CAM1 -1250H | ≤100 | 125 | 5 |
