Suitable Applications

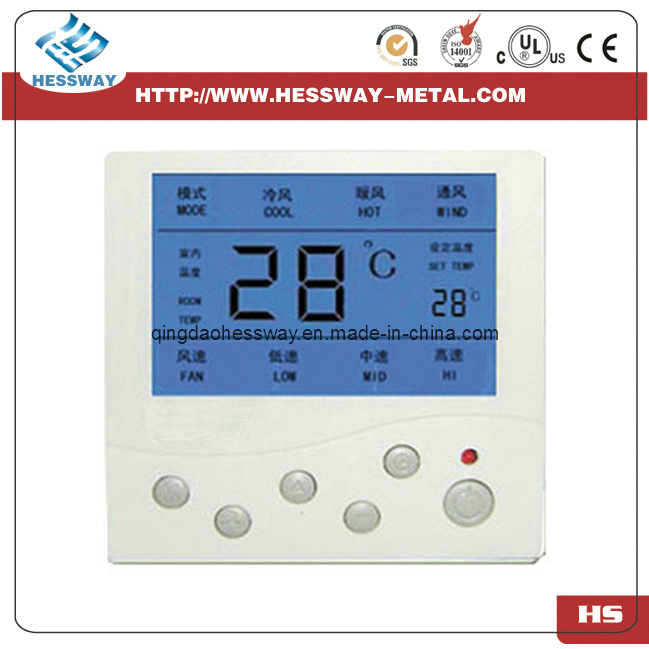

HS-W306 is often suitable for temperature control for fan coil, electrically operated valve, power-driven air valve and power-driven air inlet of the central air-condition and Control of heating equipment
Basic Features
1. Manual 3-speed or auto fan
2. Suitable valve: 2-line Or 3-line
3. Fan speed: High, Medium, Low, Automatic
4. Temperature sensing: NTC Thermistor
5. Indoor temperature correction function
6. Display: LCD
7. Size: 86mm× 86mm× 13mm
Product Additional functional modules
1. Network function: RS485 network interface, enabling communication, computer monitoring and billing (Option)
2. IR remote control (Option)
3. Blue Backlight (Option)
4. Hypothermia protection (Option)
5. Key lock, limiting the temperature function (Option)
6. Host linkage function(Option)
7. Auxiliary heating function(Option)
|
Sensing element |
NTC |
Display range |
10~40ºC |
|
Power voltage |
AC220V±10% 50/60Hz |
Temperature display range |
0~60ºC |
|
Load Current |
1A (Inductive Load) 2A (Resistive Load) |
Operation environment |
0~45ºC |
|
Self-Power consumption |
<1W |
Accuracy |
± 1ºC |
|
Cross-sectional area |
0.5 ~ 2.5mm² |
Relative humidity |
90%RH |
|
Protect range |
IP30 |
Shell material |
ABS + PC |
