Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 10/Piece |
Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Prod Model: | Lorentz Transform 19 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: | 42*26*49cm |
Net Weight: | 15kg |
LED Source: | 19PCS*15W Ostar LED |
Light Beam(1%): | 8~56° |
Control Signal: | Meet E1.11 - 2004 Usitt DMX512-a |
DMX Chanel: | Standard 21CH,35/78/92/97 Optional on Menu. |

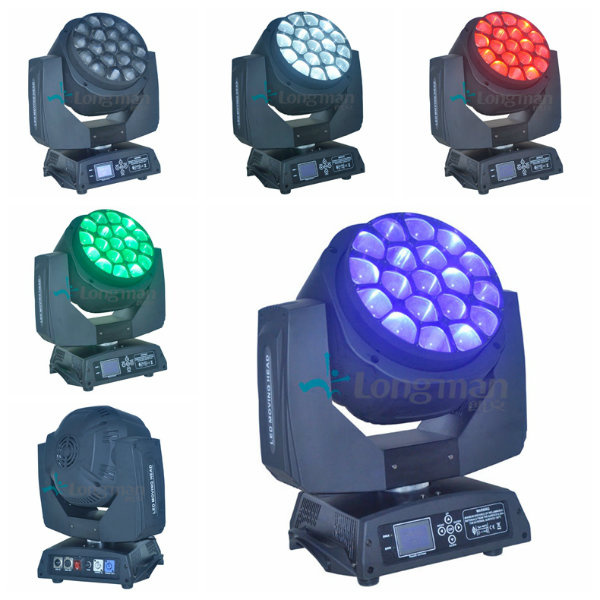

Product Name: | UL19PCS 15W RGBW 4in1 Moving Head LED Effect Light |
OEM Or ODM: | Welcome |
Xy Moto: | Pan 540&Deg |
Dimming: | with Dim0-Dim4 5 Dimming Curves,PWM>1500Hz,Video F |
Light Source: | LED |
Material: | Aluminum |
Strobe: | Adjustable Speed Strobe |
Control Mode: | Dmx Signal Control |
IP Rating: | IP20 |
Certification: | UL |
Emitting Color: | Full RGBW |
Control Channel: | Standard 21CH,35/78/92/97 Optional on Menu. |
Voltage: | AC 100-240V |
Input voltage | AC 100-240V 47-63Hz,PF>0.7 |
Output voltage | DC24V,longevity 15000Hours |
Rated Power | 350 w(316@220V 50Hz) |
Luminaire Efficiency | >0.7,Light Effiacy >32.3lm/WLED |
LED Lumens | 19pcs*15W Ostar LED,1A driving,19 pixels,Full on 8980Lumens. |
LED Color | R=625nm,G=525nm,B=460nm,W=6500K,good Color mixing,Standard Deveation of Chromaticity<0.005. |
Light Beam(1%) | 8~56°mechanical zoomable,light beam shape between hexagon and round. |
Typical Intensity | 8°(866053Cd),30°(60570Cd),56°(22790Cd) |
Control signal | Meet E1.11 - 2004 USITT DMX512-A,32 bit precise dimming, smooth in low DMX Value dimming,no vision shock |
DMX Chanel | tandard 21CH,35/78/92/97 optional on menu. |
XY Moto | Pan 540°,Pan fine 2.1/255;Tilt 270°Tilt fine 1.0/255 |
Zoom Moto | Designed with SMS technology and concaved lens,mechanical Linear zoom |
Infinite Moto | blossom light effect depend on infinite rotate Moto to have 19 PCS independent light beam. |
Dimming | with linear dimming curves,PWM>1500Hz,video flicker free |
Strobe ability | ould be 0-20 F.P.S with asynchronous stroboscopic effect |
Display | LCD could be set upside down,turn off back light after 2 minutes no operation |
Heat sink | Use fins to conduct heat and vonvect to air by fans |
Housing material | ABS and QR235,standard Matte balck, with install bracket and fastdo screw. |
Soldering technology | 180ºCReflow Soldering,15000 hours Longevity for MCU mainboard,Moto board |
Conectors | Powercon blue soucket and 10A fuse,3XLR/5XLR. |
Safty | Class II, Endure 5ms 1.5KV shock,Insulated Resistance>2MΩ Flame Rating V-1, Protect Rated IP20. |
Operate temperature | -20~+45ºC,Light board peak temperature 80ºC with NTC protection |
Cerficated | Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750 |
Size | 42*26*49CM |
Weight | 15KG |
1. Are you a factory or trading company? Yes ,We are a factory. |
2. Where is your factory located? How can I visit there? Our factory address is : No.2 XiaheRoad, Baiyun Industrial Area , Jianggao Town, Baiyu District, Guangzhou, China ,about 30 minutes away from Bai yun Airport by metro. All our clients, no matter where you are from, all are most welcome to visit us ! |
3. Which products we have? We produce different kinds of LED Light . Our product: A. LED Moving Spot and Wash Light; B. Studio Light; C. Indoor Parcan Light; D. Professional Wash Light; E. Audience and DJ Light; F. Outdoor Parcan Light; G. Outdoor Washer Light; H. Black Light; J. Control System; K. Dramatic architectural and landscape lighting. |
4. How to get the latest price? If you want the latest price, Please Email or call us with the items names or NO. What are you interested in , together with your details(name,details address,telephone,etc),we will send to you as soon as possible. |
5. Does the products have any certificate? Yes,our products have CE,ROHS ,UL, CQC and SGS certificate . |
6. What's the Payment method? All methods can be discussed. |
7. How to Place an order? Please kindly send us you order by email ,we will confirm the PI with you .we wish to know the below:Delivery information,company name, address details, phone/fax number, destination,transportation way ;Product information:item number,size,quantity,logo,etc. |
