Product Specifications
| Prod Model: |
UL2464 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Brown, Red, Orange, Gray, White, Black |
| Material: |
Copper |
| Application: |
Computer |
Product Description
Specifications

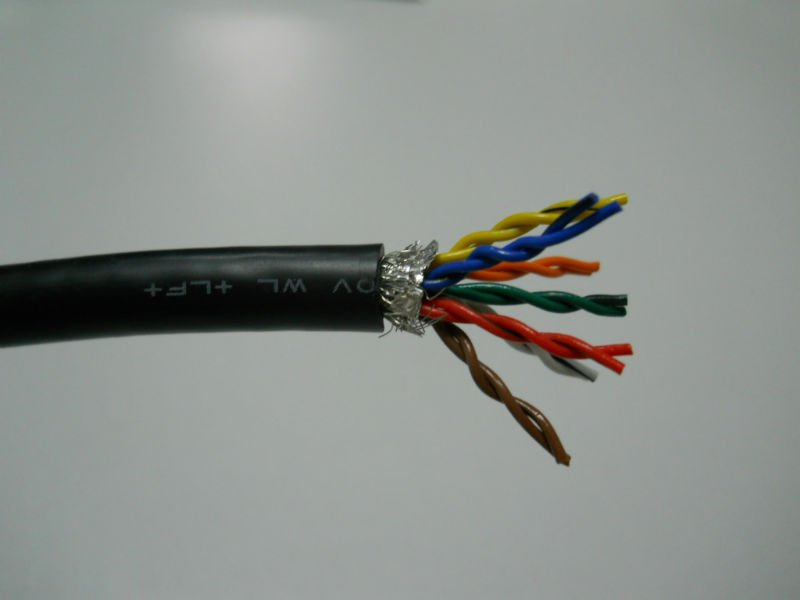

Computer cable
Multicore cable, RS-232 application
Executed standard: UL758 UL1581
CSA22.2
E214500, LL210593
Computer cable
Product Description:
1) Tinned, annealed, stranded or solid copper conductor.
2) SR-PVC/PVC insulation.
3) PVC jacketed.
4) Cores cabled under aluminum mylar shield.
5) Tinned stranded copper drain wire
6) Unpaired computer and data transmission cable.
7) Rated temperature: 80° C. Rated voltage: 300volts.
8) Passes UL VW-1 & CSA FT1 vertical flame test.
9) Executive Standard: UL758, UL1581, CSA22.2.
Applications:
1) Sound broadcast, audio instrumentation and computer cables for RS-232 applications.
Product Description:
1) Tinned, annealed, stranded or solid copper conductor.
2) SR-PVC insulation or PVC insulation.
3) PVC jacketed.
4) Cores cabled under aluminum mylar shield.
5) Tinned stranded copper drain wire.
6) Tinned copper braid shield, 85% coverage.
7) Unpaired computer and data transmission cable.
8) Rated temperature: 80° C. Rated voltage: 300volts.
9) Passes UL VW-1 & CSA FT1 vertical flame test.
10) Executed Standard: UL758, UL1581, CSA22.2.
Applications:
1) Sound broadcast, audio instrumentation and computer cables for RS-232 applications.
|
UL Style & CSA Type |
Cores |
Conductor |
Insulation Thickness |
Jacket Thickness |
Overall Diameter |
Stanard Put-Up |
Conductor
Resistance at 20°C |
|
AWG |
mm |
mm |
mm |
mm |
Ft/Coil |
M/Coil |
Ω/KM |
UL2464
(Stranded) |
2 |
18 |
34/0.178 |
0.40 |
0.80 |
5.8±0.15 |
1000 |
305 |
23.20 |
|
3 |
28 |
7/0.127 |
0.25 |
0.80 |
3.9±0.15 |
1000 |
305 |
23.20 |
|
26 |
7/0.160 |
0.25 |
0.80 |
3.9±0.16 |
1000 |
305 |
150.00 |
|
24 |
11/0.160 |
0.25 |
0.80 |
4.2±0.15 |
1000 |
305 |
94.20 |
|
22 |
17/0.160 |
0.25 |
0.80 |
4.7±0.15 |
1000 |
305 |
59.40 |
|
18 |
34/0.178 |
0.40 |
0.80 |
6.0±0.20 |
1000 |
305 |
23.20 |
|
4 |
28 |
7/0.127 |
0.25 |
0.80 |
3.9±0.15 |
1000 |
305 |
239.00 |
|
26 |
7/0.160 |
0.25 |
0.80 |
4.2±0.15 |
1000 |
305 |
150.00 |
|
24 |
11/0.160 |
0.25 |
0.80 |
4.5±0.15 |
1000 |
305 |
94.20 |
|
22 |
17/0.160 |
0.25 |
0.80 |
5.1±0.15 |
1000 |
305 |
59.40 |
|
18 |
34/0.178 |
0.40 |
0.85 |
7.1±0.20 |
1000 |
305 |
23.20 |
|
5 |
28 |
7/0.127 |
0.25 |
0.80 |
4.2±0.15 |
1000 |
305 |
239.00 |
|
26 |
7/0.160 |
0.25 |
0.80 |
4.5±0.15 |
1000 |
305 |
239.00 |
|
24 |
11/0.160 |
0.25 |
0.80 |
4.9±0.15 |
1000 |
305 |
94.20 |
|
22 |
17/0.160 |
0.25 |
0.80 |
5.5±0.15 |
1000 |
305 |
59.40 |
|
18 |
34/0.178 |
0.40 |
0.85 |
7.3±0.15 |
500 |
152 |
23.20 |
|
6 |
28 |
7/0.127 |
0.25 |
0.80 |
4.5±0.15 |
1000 |
305 |
239.00 |
|
26 |
7/0.160 |
0.25 |
0.80 |
4.8±0.15 |
1000 |
305 |
150.00 |
|
24 |
11/0.160 |
0.25 |
0.80 |
5.2±0.15 |
1000 |
305 |
94.20 |
|
22 |
17/0.160 |
0.25 |
0.80 |
5.8±0.15 |
1000 |
305 |
59.40 |
|
7 |
28 |
7/0.127 |
0.25 |
0.80 |
4.5±0.15 |
1000 |
305 |
239.00 |
|
26 |
7/0.160 |
0.25 |
0.80 |
4.8±0.15 |
1000 |
305 |
150.00 |
|
24 |
11/0.160 |
0.25 |
0.80 |
5.2±0.15 |
1000 |
305 |
94.20 |
|
22 |
17/0.160 |
0.25 |
0.80 |
5.8±0.15 |
1000 |
305 |
59.40 |
|
8 |
28 |
7/0.127 |
0.25 |
0.80 |
4.8±0.15 |
1000 |
305 |
239.00 |
|
26 |
7/0.160 |
0.25 |
0.80 |
5.1±0.15 |
1000 |
305 |
150.00 |
|
24 |
11/0.160 |
0.25 |
0.80 |
5.5±0.20 |
1000 |
305 |
94.20 |
|
22 |
17/0.160 |
0.25 |
0.85 |
6.3±0.15 |
1000 |
305 |
59.40 |
|
9 |
28 |
7/0.127 |
0.25 |
0.80 |
5.1±0.20 |
1000 |
305 |
239.00 |
|
26 |
7/0.160 |
0.25 |
0.80 |
5.4±0.20 |
1000 |
305 |
150.00 |
|
24 |
11/0.160 |
0.25 |
0.85 |
5.8±0.20 |
1000 |
305 |
94.20 |
|
22 |
17/0.160 |
0.25 |
0.85 |
6.7±0.20 |
1000 |
305 |
59.40 |
