Product Specifications
Prod Model: |
HLS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Output: |
4-20mA |
Accuracy: |
?à0.6-1% |
Main Application: |
Fuel Oil |
Sensor: |
Clamp-on/External |
Type: |
Ultrasonic Flow Meter |
Measuring Media: |
Liquid |
Measuring Principle: |
Electrical Principles |
Size: |
Dn15-Dn6000 |
Product Description
Description
Ultrasonic flow meter is designed to measure the velocity of liquid within a closed conduit. It uses the
well-known transit-time measurement principle, plus our proprietary signal processing and ultrasonic transceiving
technologies.

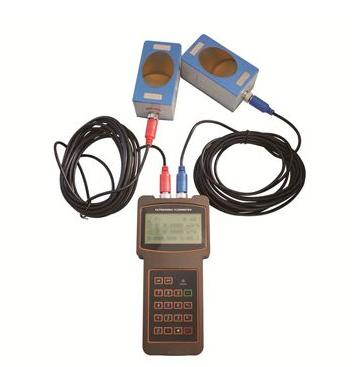

As shown in Figure 1, a pair of ultrasonic transducers which are mounted on the pipe upstream and down
stream respectively. Each transducer serves as both ultrasonic transmitter and receiver. The main unit operates
by alternately transmitting and receiving a coded burst of sound energy between the two transducers. The
transit-times in the upstream direction as well as in the downstream direction are measured. The difference of the
two transit times is directly and exactly related to the velocity and the liquid in the pipe.
Features
1. Non contact measuring instruments, compact packing and easy to carry;
2. Suitable for various sizes of pipes and the medium which is sound conductive;
3. Built-in Ni-MH battery, continually working up for more than 20 hours;
4. Flexible user interface and easy to use;
5. Print output: built-in thermal printer, achieve to print online or at a scheduled time;
6. Aluminum alloy protective case, can be used in harsh environment;
Techncial Parameter
Main unit | Indicating instant flow,flow velocity,flow totaliser,signal condition, etc. |
In-built data logger, recording date, flow totaliser,signal condition, etc. |
RS-232 interface, complete commutation protocol for instrument networking; |
OCT output positive/negative/net flow totaliser; pulse signal and frequency signal(1~9999HZ) |
Accuracy | Better than 1% |
Flow range | 0.01~±32m/s |
Medium | Water, sea water, industrial sewage, alcohol, acid-base liquid,all kinds of oil or uniform, single and stable liquid. |
Pipe material | Steel, stainless steel, cast iron, copper, PVC, aluminum, glass reinforced plastics or other compact pipe, lining is allowable; |
Pipe straight run | At least 10D for upstream & 5D for downstream, 30D if a pump is near upstream , where D is pipe diameter. |
Power supply | Built-in Ni-MH battery , continually working up for more than 10 hours; |
Size | 200×92×32mm |
Weight | 525g |
Note | Aluminum alloy protective case ,can be used in harsh environment; |
Detail Technical Parameter
1.Non-contacting measuring: The ultrasonic flow meter will be adsorbed on the outside of pipe, and then finish the measuring. Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
2.Wide measuring range: Several types transducer for selection, pipe size fromDN15mm to DN6000mm
3.Chinese & English menu: Chinese & English display, easy to operate.
4.Large capacity battery: Built-in rechargeable Ni-MH rechargeable battery, provideover 20 hours of continuous operation.
5.Built-in printer: Built-in mini thermal printer with instant and timing print function,
also you can print more than 20 kinds of measuring results if you set in advance.
6.Built-in data logger: Uplink over 20 measuring data to computer or internet.
