Underfloor heating systems
100w/square meter
CE approved

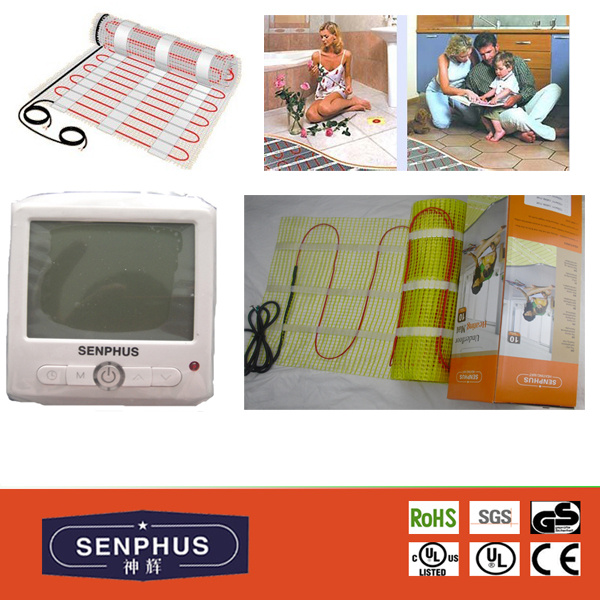

Twin Conductor Heating Mat
Twin Wire Construction: -In this the win wire construction cable is used having only one cold tail for connection hence this system is the most convenient to install. General technical data:
Cable Type: Twin Conductor with Screen
Rated Voltage: As request
Watts per Meter2: 100 W/M2
Dimensions (W x L): 0.5m Wide x 1m to 20m Long
Wire diameter: As thin as only 3-3.5mm
Cold Tail Length: 1X 2-3mtr( twin wire)
Conductor Insulation: Teflon
Shield: Tinned Cooper Wire
Screen: Aluminum foil
Sheath: Teflon
Tolerance Ohmic Value: 10% or -%5
Mat Construction: Polypropylene Coated Glass Fibre Net(Self-adhesive net)
Bending Radius Min: 5D
Resistance Tolerance: +10/-5%
Feature
Low cost of install and maintenance fee
Perfect shielding of harmful electro-magnetic wave
High durability, no need of maintenance control
Embodiment of radiant heating condition
Eco-friendly product
Expense and time saving
Easy to install
Heating mat is a good heating system. It is easy to install and is suitable for various floor decorative materials, whether it is concrete floor and wood flooring, or the old tiles floor or terrazzo floor. It is installed in the tile adhesives and almost doesn't affect the floor elevation. Anze heating mat can be directly laid on the original floor without any treatment to the original floor. Meanwhile, the thin preheat layer can offer you the desired floor temperature 20-30 minutes after the system is activated. Therefore the fast heating system is the best choice for rooms such as bathroom. It is applicable to the overall heating, comfort heating, wall heating, strict demands of floor height and renovation.
SH PCN | Type | Rated power W | Resistance @20oC+10/-5% Ω | Mat size m | CableLength m |
SHDN00061 | SHDN-100-1.0M 2 | 100 | 484.0 | 0.5X2.0 | 9.09 |
SHDN00062 | SHDN-100-1.5M 2 | 150 | 322.7 | 0.5X3.0 | 13.635 |
SHDN00063 | SHDN-100-2.0M 2 | 200 | 242.0 | 0.5X4.0 | 18.18 |
SHDN00064 | SHDN-100-2.5M 2 | 250 | 193.6 | 0.5X5.0 | 22.725 |
SHDN00065 | SHDN-100-3.0M 2 | 300 | 161.3 | 0.5X6.0 | 27.27 |
SHDN00066 | SHDN-100-3.5M 2 | 350 | 138.3 | 0.5X7.0 | 31.815 |
SHDN00067 | SHDN-100-4.0M 2 | 400 | 121.0 | 0.5X8.0 | 36.36 |
SHDN00068 | SHDN-100-4.5M 2 | 450 | 107.6 | 0.5X9.0 | 40.905 |
SHDN00069 | SHDN-100-5.0M 2 | 500 | 96.8 | 0.5X10.0 | 45.45 |
SHDN00070 | SHDN-100-6.0M 2 | 600 | 80.7 | 0.5X12.0 | 54.54 |
SHDN00071 | SHDN-100-7.0M 2 | 700 | 69.1 | 0.5X14.0 | 63.63 |
SHDN00072 | SHDN-100-8.0M 2 | 800 | 60.5 | 0.5X16.0 | 72.72 |
SHDN00073 | SHDN-100-9.0M 2 | 900 | 53.8 | 0.5X18.0 | 81.81 |
SHDN00074 | SHDN-100-10.0M 2 | 1000 | 48.4 | 0.5X20.0 | 90.9 |
SHDN00098 | SHDN-100-12.0M 2 | 1200 | 40.3 | 0.5X24.0 | 109.08 |
Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.
We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.
Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.
Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.
Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!
OEM is welcome! !
