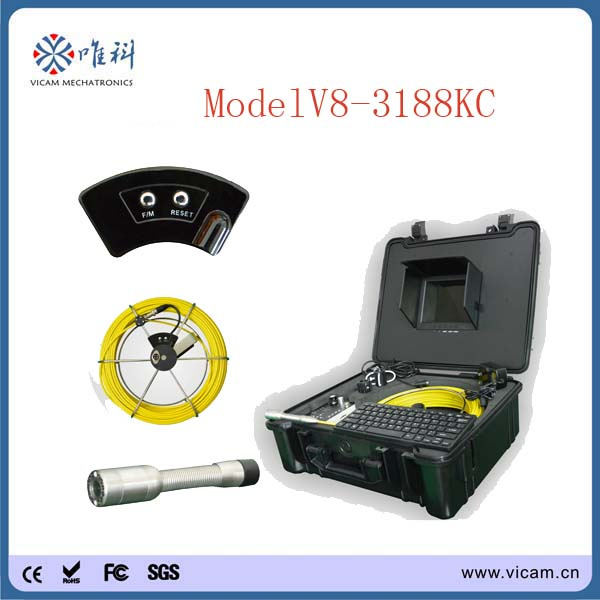

Underwater leaks detection system security system video inspection
Camera Head
* Camera head size Φ 23 x 45mm for pipe Φ 25 to 200mm
* Camera head casing material stainless steel
* Camera lens window material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°
* Camera lighting 12 pcs high intensity white LED
Monitor
* 8 inch TFT LCD monitor
* Power supply DC 12V
DVR Control Box
* 12V DVR work current 200mA
* Storage medium SD card jack
* USB Keyboard jack
Battery pack & Charger
* 6600mA Li-ion Battery pack power supply
* AC110-240V to DC12V charger
* Charging time 5 hours, working time 6 hours
Cable Reel with Meter Counter
* Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size Φ 320 x 110mm
* 20m Φ 5.2mm fiberglass rod push cable (30m, 40m optional)
Carrying case
*ABS carrying case: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Features and Benefits
* Waterproof Camera with 12 pcs high brightness LEDs lighting can easily check all pipes problem inside
* 8" LCD monitor give you a good quality image,
* 6600 mAh Li-on battery support the unit working more than 5 hours
* DVR control box easy to record and replay video, photo, and sound. USB jack for keyboard support to typewrite real time any information you need
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
