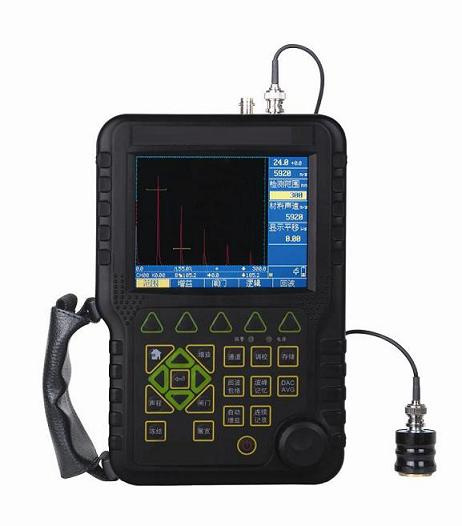

1.1 Features of the Instrument
The instrument extends the performance and range of applications that are
capable of being satisfied by a portable instrument. The quality, portability,
durability, and dependability that you have come to expect from the popular
Mitech MFD Series of instruments remain.
Display
Hi-resolution (320×240 pixels) multi-color TFT LCD with 4 user-selectable
brightness control provides high contrast viewing of the waveform from bright,
direct sunlight to complete darkness.
The hi-resolution multi-color TFT LCD display with fast 60 Hz update gives an
"analog look" to the waveform providing detailed information that is critical in
many applications including nuclear power plant inspections.
Range
Up to 6000 mm in steel. suitable for use on large work pieces and in
high-resolution measurements.
Pulser
Pulse Energy selectable among Low, Medium and High.
Pulse Repetition Frequency adjustable from 10 Hz to 1 KHz in 1 Hz increments.
Damping selectable among 100Ω,200Ω and 400Ω for optimum probe
performance
Test Modes include Pulse echo, dual and thru-transmission
Receiver
Sampling:10 digit AD Converter at the sampling speed of 160 MHz
Rectification:Positive Halfwave, Negative Halfwave, Fullwave and RF
Analog Bandwidth: 0.5MHz to 10MHz capability with selectable frequency
ranges (automatically set by the instrument) to match probe for optimum
performance.
Gain:0 dB to 110 dB adjustable in selectable steps 0.1 dB, 2 dB, 6 dB, and
locked.
