Maccsy Machinery Co., Ltd >> Universal Lathe Machine Tool From Maccsy Machinery

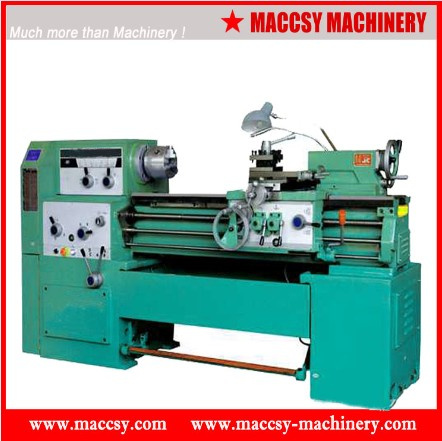

Universal Lathe Machine Tool From Maccsy Machinery

Universal Lathe Machine Tool From Maccsy Machinery
Price: US $ 30000/Piece
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Money Gram

Product Specifications

Prod Model: LM200M
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sort: Universal Lathe Machine Tool
Type: Horizontal Lathe
Automatic Grade: Manual
Precision: Precision
Power Source: Manual
Setting Mode: Floor-type
Controlling Mode: Artificial
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe

Product Description


Technical Parameters

Max swing over bed
340mm (133/8")
Max swing over cross slide210mm (8")
Max swing over gap470mm (181/2")
Distance between centers
750mm (30")
1000mm (40")

Width of bed
186mm (71/3")
Spindle noseCAMLOCK
Spindle bore38mm (11/2")
Spindle speed (Grades)
60HZ 60-2000 RPM (9/18 steps)
50HZ 60-2000 RPM (9 steps)
           50-1720 RPM (18 steps)

Metric threads
0.25-9mm
inch threads72-4(3/4)TPI
Module threads0.25-3.5mm
Vertical feeding range0.03-0.42 mm
Horizontal feeding range0.015-0.21mm
Main motor power1.5KW
Net/Gross weight (KG)570/670/750


--------------------------

Cel.: +86 18841157809
Webs: www.maccsy.com  www.maccsy-machinery.com
Alibaba Site: www.maccsy.en.alibaba.com

Maccsy Machinery Co., Ltd
Maccsy Machinery Co., Ltd

MACCSY MACHINERY Co., Ltd is a professional supplier and exporter of general industrial machinery including Lathe, Vertical Lathe, Machining Center, Gear Hobbing Machine, Milling & Drilling Machine, Rubber & Plastic Machine and Food & Beverage Machine, experienced so many years' accumulation and growth, we already become mature supplier of industrial machines and solutions for our oversea users.

Also, to keep the quality still, we also always to seek method to bring down the cost of our machines, ensuring the entire procedures during transactions, so as to service the users better.

Because of our special and good relationship with the China Customs, We offen help our customers solve many impossible problems including money transfer, goods clearance and so on.

Hope that MACCSY MACHINERY can provide satisfactory machines & parts and services to more users!
