Product Specifications
| Prod Model: |
LP/W053/RC REV2.0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Learnable, Programmable: |
Yes |
| Application: |
TV Sat DVD Universal |
| Signal Transmission: |
IR Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Voltage: |
3V |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
Product Description

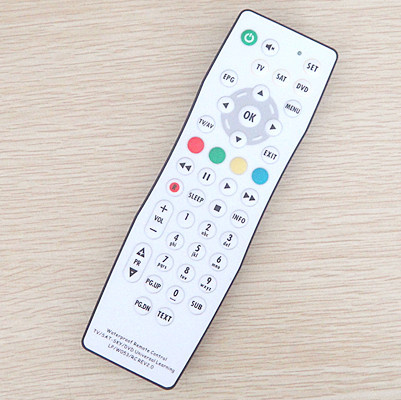

IP67 remote controller Universal and Learning
LPI-W053/RC/REV2.0
Apply for SPA, MIRROR TV, BATHROOM TV
Waterproof TV remote control
Waterproof IP67
3in1 TV/SAT/DVD universal + Learning
Cr2032 batteries
Learning more than 100 codes.
| Number of keys | | 1~53 |
| Dimensions | | 175x52x12mm |
| Case | | ABS Plastic |
| Buttons Type | | PET Membrane |
| Textplate | | YES |
| Weight (incl. batteries) | | 53g |
| Battery | | DC3.0V/CR2032 |
1,Operation Force
Each key's operation force is in the range of: 180±40g.f and total deviation in 50g.f. Base on Center.
2,Key StrokeVertical press Key with force of 180g, the key stroke within the range of: 0.8±0.2mm Base on Center.
3,Straight Distance: Straight Distance above 8.0M
4,Receiver Direction:Up Down Left Right Direction 15? at min.3M Distance.
5,Room Temp:25ºC
6,Room Humi:65~80% RH
8,Power Voltage: DC 3.0V
9,Test Environment illumination: 350Lux
10,Leakage Currency: Under 3uA No key pressed
11,Working Voltage DC2.2V~DC3.4V
12,Contact Resistance :under 3K Ohms
Can replace
![]()
![]()
